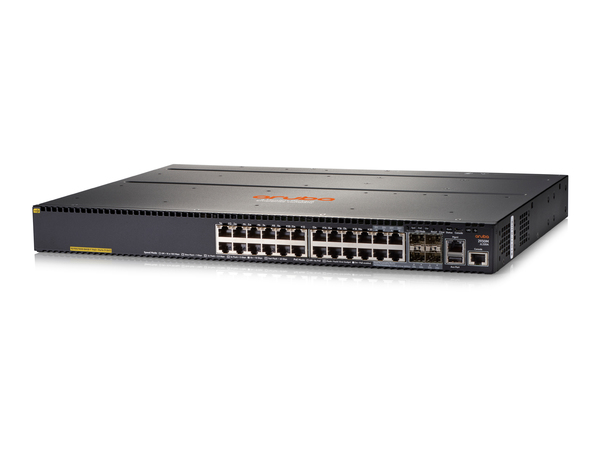

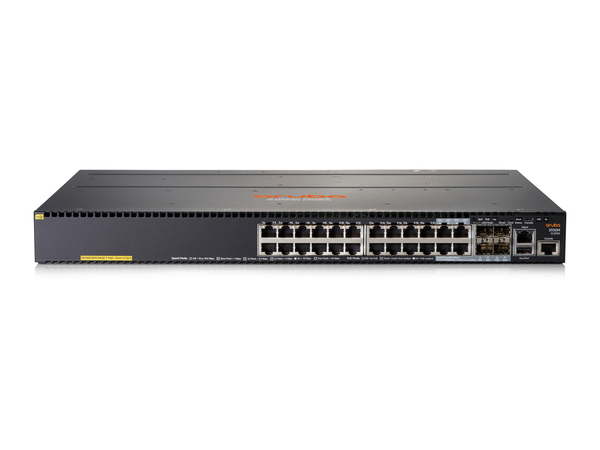

Aruba Switch 2930M 24G PoE

ID: JL320A#ABB
Tuote ei ole saatavilla
Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.
Tuotetiedot
Kuvaus
Myymäläsaatavuus
Toimitus
Hinnan muutokset
Liitettävyys
Combo SFP-porttien määrä4
Peruskytkentä RJ-45 Ethernet-porttien tyyppiGigabit Ethernet (10/100/1000)
Basic kytkentä RJ-45 Ethernet-porttien määrä20
Paino ja mitat
Paino4,5 kg
Tuotteen korkeus43,9 mm
Tuotteen leveys442,5 mm
Virranhallinta
Virrankulutus470 W
AC-syöttötaajuus50 - 60 Hz
AC-syöttöjännite100 - 240 V
Ympäristöolosuhteet
Suhteellinen kosteusalue15 - 95%
Varastointilämpötila-40 - 70 °C
Käyttölämpötila (T-T)0 - 55 °C
Lämmön poisohjaus150 BTU/h
Verkko
Täysin kaksipuolinencheckmark
VerkkostandarditIEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u
Virranhallinnan tukicheckmark
Linkkien yhdistäminencheckmark
Nopeuden rajoituscheckmark
IP-reitityscheckmark
Auto MDI/MDI-Xcheckmark
STP-Protokollacheckmark
VLAN-tukicheckmark
10G-tukicheckmark
Ethernet kaapelointiteknologia10BASE-T,100BASE-TX,1000BASE-T
Automaattinen tunnistuscheckmark
Datasiirto
MAC-osoitetaulukko32768 entries
Kytkentäkapasiteetti128 Gbit/s
Laitteen puskurimuistiin12,38 MB
Latenssi (10-100 Mbps)11,8 us
Latenssi (1 Gbps)3,1 us
Latenssi (10 Gbps)3,4 us
Suoritusteho95,2 Mpps
Suojaus
Pääsynhallintalistacheckmark
SSH/SSL-tukicheckmark
IGMP snoopingcheckmark
TodennustapaMAC-pohjainen tunnistautuminen, Verkkopohjainen todennus
Hallintaominaisuudet
KytkinkerrosL3
Quality of Service -tukicheckmark
Verkkosivupohjainen hallintacheckmark
Kytkin tyyppiHallittu
Suunnittelu
Telineasennuscheckmark
Kotelo1U
Tuotteen väriHarmaa
Pinottavacheckmark
Power over Ethernet (PoE)
Power over Ethernet -tukicheckmark
Power over Ethernet (PoE) arvioitu kokonaismäärä720 W
Suorituskyky
Prosessorin taajuus1016 MHz
Sisäinen muisti1024 MB
MuistityyppiDDR3-SDRAM
Sisäänrakennettu prosessoricheckmark
Multicast-tukicheckmark
EAN
Source: Icecat.biz

The Aruba 2930M Switch Series is designed for digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch offices. The 2930M delivers performance and value with support for static, RIP and Access OSPF routing, 10GbE and 40GbE uplinks, HPE Smart Rate, PoE+, robust QoS, SDN and requires no software licensing.

What's new
- Aruba Layer 3 switch series that is easy to deploy and manage with Aruba ClearPass Policy Manager and on-premise with Aruba Airwave.
- Simplify with Zero Touch Provisioning and cloud-based Aruba Central support.
- Scale with modular 10 chassis stacking and up to 1440W PoE+.
- Modular 10GbE and 40GbE uplinks and HPE Smart Rate multi-gigabit support.
- Optimized for innovative SDN applications with OpenFlow.

Features

High-Performance Layer 3 Access Switches
- The Aruba 2930M Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
- Optimized for the digital workplace with unified management tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
- Pay as you grow modular stacking (10 chassis) and modular 10GbE (SFP+) and 40GbE (QSFP+) uplinks. HPE Smart Rate multi-gigabit Ethernet support for high speed APs over existing cabling and upgradeable power supplies allow your network to quickly scale when more PoE+ is needed.
- Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, Tunnel Node, sFlow, IPv6 with no software licensing required.
- Designed with a power ProVision ASIC and support for OpenFlow, the Aruba 2930M is ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer, and Protector Software products.

Performance and Power at the Edge
- The Aruba 2930M Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
- Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
- Plug and play with up to 10 chassis stacking allowing automated failover enhances network resiliency and RPS support delivers power redundancy.
- Supports up to 740W of internal PoE+ power for wireless access points, cameras and phones and can easily scale to 1440W.

Security and Quality of Service You Can Rely On
- The Aruba 2930M Switch Series includes security and quality of services (QoS) features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
- Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
- Powerful multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, port security, and MAC address lockout.
- Tunneled Node to transport network traffic on a per-port basis to the Aruba controller delivering authentication and network policies applied and enforced at the controller.

Simplify with Integrated Wired/Wireless Management
- The Aruba 2930M Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Aruba Airwave Network Management software provides an on-premise network management platform for wired and wireless network devices.
- Cloud-based management with Zero Touch Provisioning supported by Aruba Central.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
- Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
