Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.
Liitettävyys | |
Gigabit Ethernet -portteja | 10 |
Console-portti | RJ-45 |
Combo SFP-porttien määrä | 2 |
Peruskytkentä RJ-45 Ethernet-porttien tyyppi | Gigabit Ethernet (10/100/1000) |
Basic kytkentä RJ-45 Ethernet-porttien määrä | 10 |
Paino ja mitat | |
Paino | 1,06 kg |
Tuotteen korkeus | 45 mm |
Tuotteen leveys | 220 mm |
Tuotteen syvyys | 135 mm |
Virranhallinta | |
Tehonkulutus (maks.) | 14 W |
Ympäristöolosuhteet | |
Käytön suhteellinen kosteus (H-H) | 10 - 90% |
Käyttölämpötila (T-T) | 0 - 40 °C |
Protokollat | |
GARP VLAN Registration Protocol (GVRP) | |
Verkko | |
Verkkostandardit | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Virranhallinnan tuki | |
Porttien peilaus | |
Broadcast Storm Control | |
VLAN:ien määrä | 4096 |
STP-Protokolla | |
VLAN-tuki | |
10G-tuki | |
Datasiirto | |
MAC-osoitetaulukko | 8000 entries |
Kytkentäkapasiteetti | 20 Gbit/s |
Jumbo Frames -tuki | |
Tallenna ja lähetä edelleen | |
Forwarding rate | 14,88 Mpps |
Jumbo frames | 9000 |
Pakkaustiedot | |
Käyttöopas | |
Sisältää asennuspitimet | |
Suojaus | |
Tietoturva-algoritmit | 802.1x RADIUS, SNMP, SSH, SSL/TLS |
Pääsynhallintalista | |
SSH/SSL-tuki | |
IGMP snooping | |
Hallintaominaisuudet | |
Kytkinkerros | L2 |
Quality of Service -tuki | |
Verkkosivupohjainen hallinta | |
Kytkin tyyppi | Hallittu |
Suunnittelu | |
Sertifiointi | EN 60950-1, EN 55022, EN 55024, FCC Part 15 (CFR47) Class A |
Telineasennus | |
Kotelo | 1U |
LED-merkkivalot | |
Tuotteen väri | Musta |
Kotelon materiaali | Metalli |
Power over Ethernet (PoE) | |
Power over Ethernet -tuki | |
Suorituskyky | |
Päivitettävä Firmware | |
Telnet | |
EAN | 4044144614927 |
Takuu | 1 vuosi |
Source: Icecat.biz |

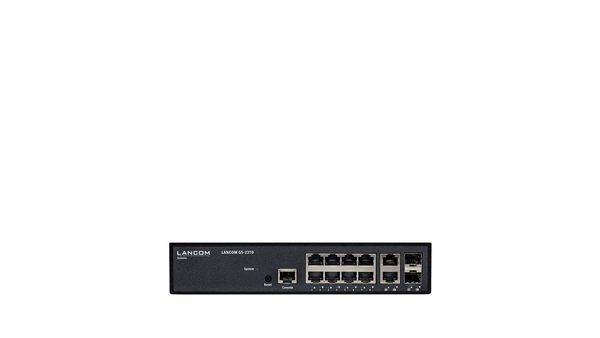

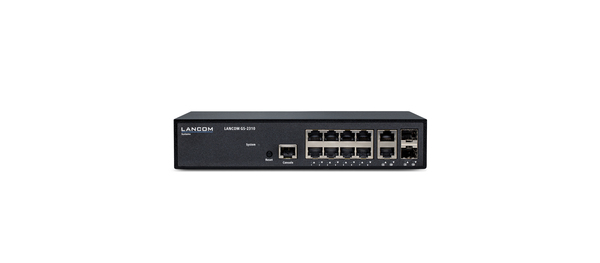

This fully managed switch is the professional solution for internal networking with its eight Gigabit Ethernet ports and two combo ports. The fanless design makes it ideal for office environments and for sub-distribution of in-store infrastructures—wherever you need full management functions but not PoE-based power. In terms of quality and performance, the smallest managed switch is in no way inferior to its larger relations and, thanks to its range of functions, it offers security and versatility. In combination with the LANCOM Management Cloud you benefit from user-friendly, automated and efficient administration via SD-LAN.
High reliability on 10 ports
The LANCOM GS-2310 is equipped with 8 Gigabit Ethernet ports and 2 combo ports (Ethernet or fiber-optic). With a data throughput of 20 Gbps on the backplane, it offers full performance even under load. This switch is a high-performance basis for modern network infrastructures at small and home offices.
Software-defined LAN
The LANCOM Management Cloud opens the way to the most advanced switch management: Software-defined LAN (SD-LAN). SD-LAN orchestrates the port profiles for each switch and automatically assigns the necessary network configuration, e.g. the required VLANs. At the click of a mouse, switch configurations that are fully customized to each site's network architecture are simultaneously rolled-out or updated.
Configurable access control
The LANCOM GS-2310 stops rogue clients from gaining unauthorized access to the network. This is ensured by secured access control on all ports based on IEEE 802.1X (port-based, single, multi, and MAC-based).
Secure remote management
Secure communication protocols such as SSH, SSL and SNMPv3 mean that the LANCOM GS-2310 is ideal for the professional remote management of networks. The switch also supports the TACACS+ protocol for authentication, authorization, and accounting. This optimized solution promises maximum security for multi-site network management and monitoring.
IPv6 and IPv4 support
Thanks to the dual-stack implementation, the LANCOM GS-2310 operates in pure IPv4, pure IPv6, or in mixed networks. This means that it can be managed via both IP address standards, which makes it fully future-proof.
5-year warranty
Every day, our customers rely on products to the highest standards of quality. These quality standards also include fast help, just in case things should go wrong. This is why the LANCOM GS-2310 comes with a standard warranty of 5 years.
