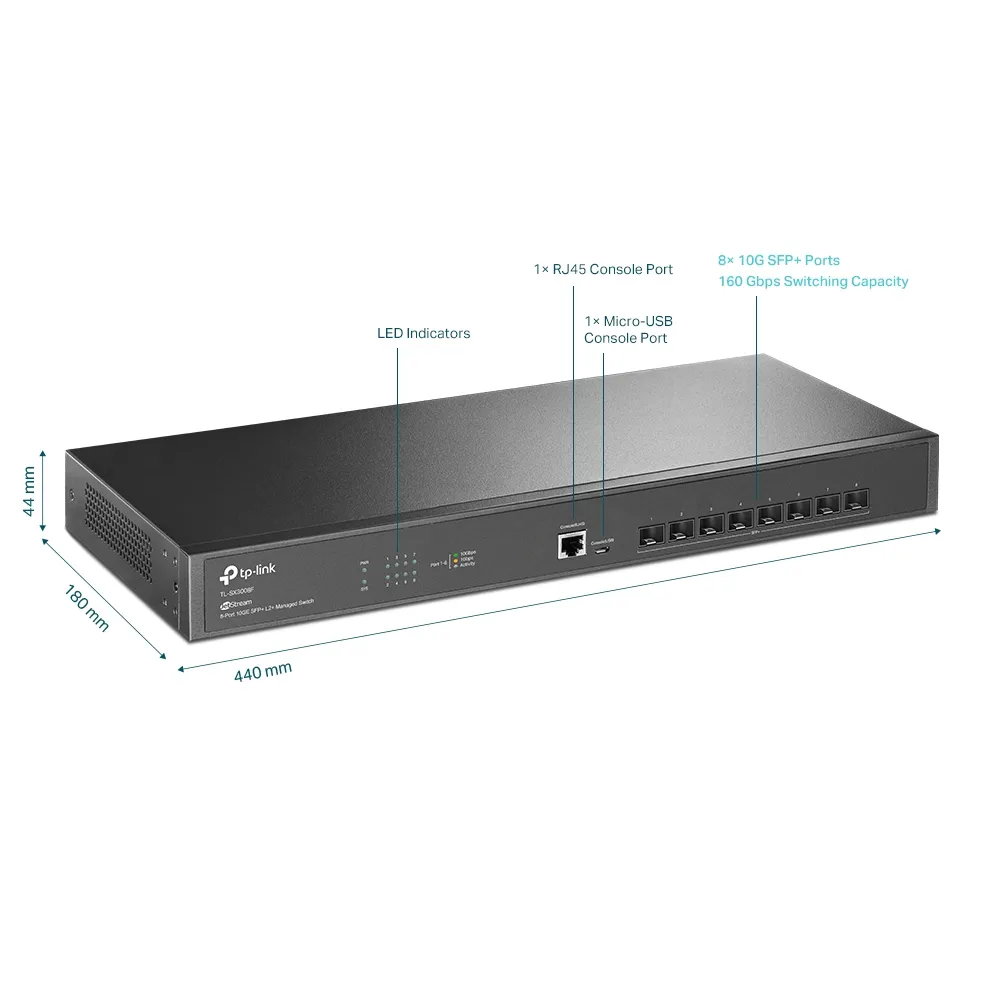

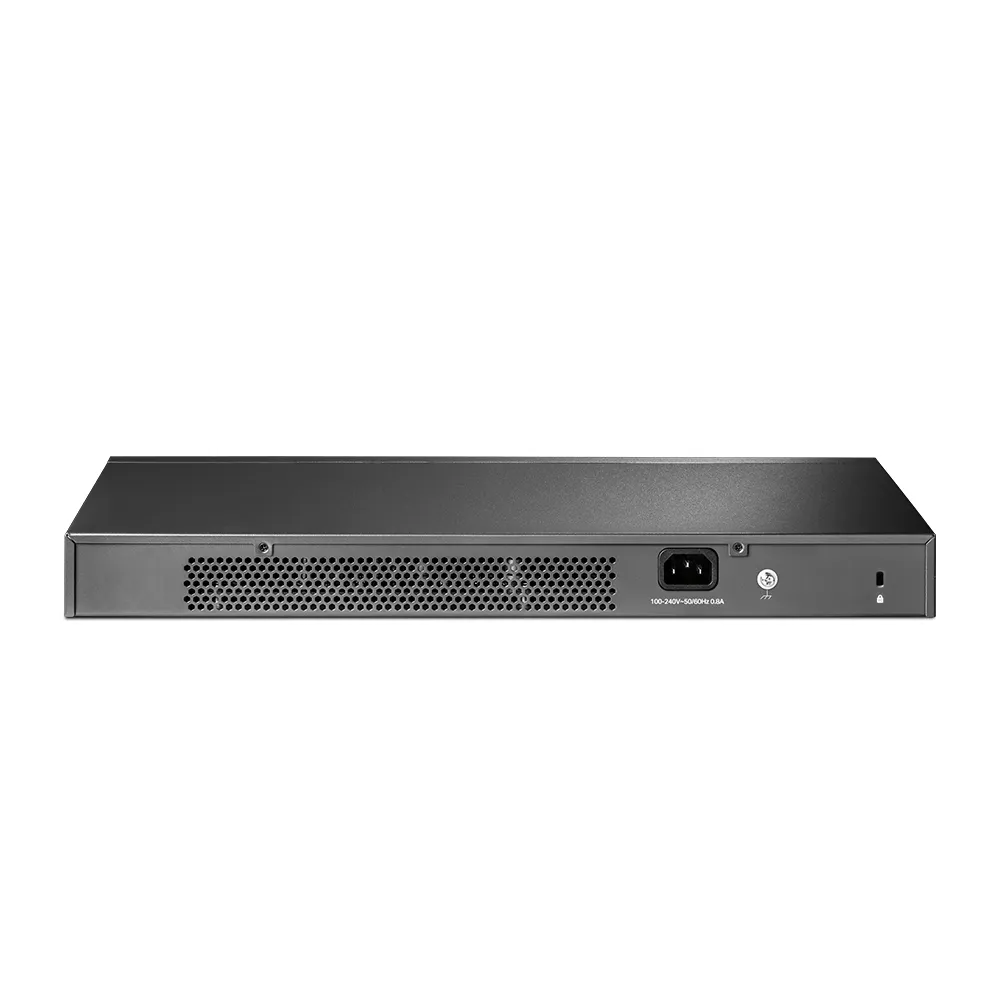

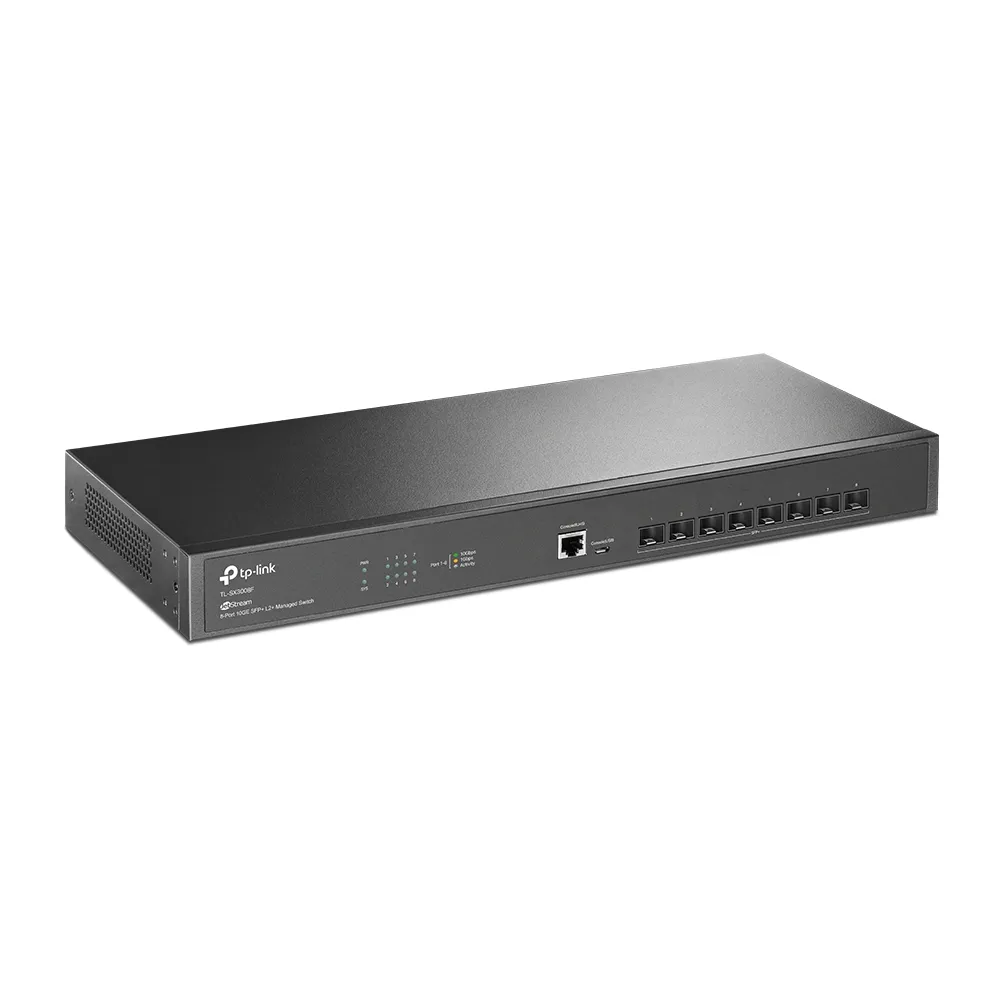

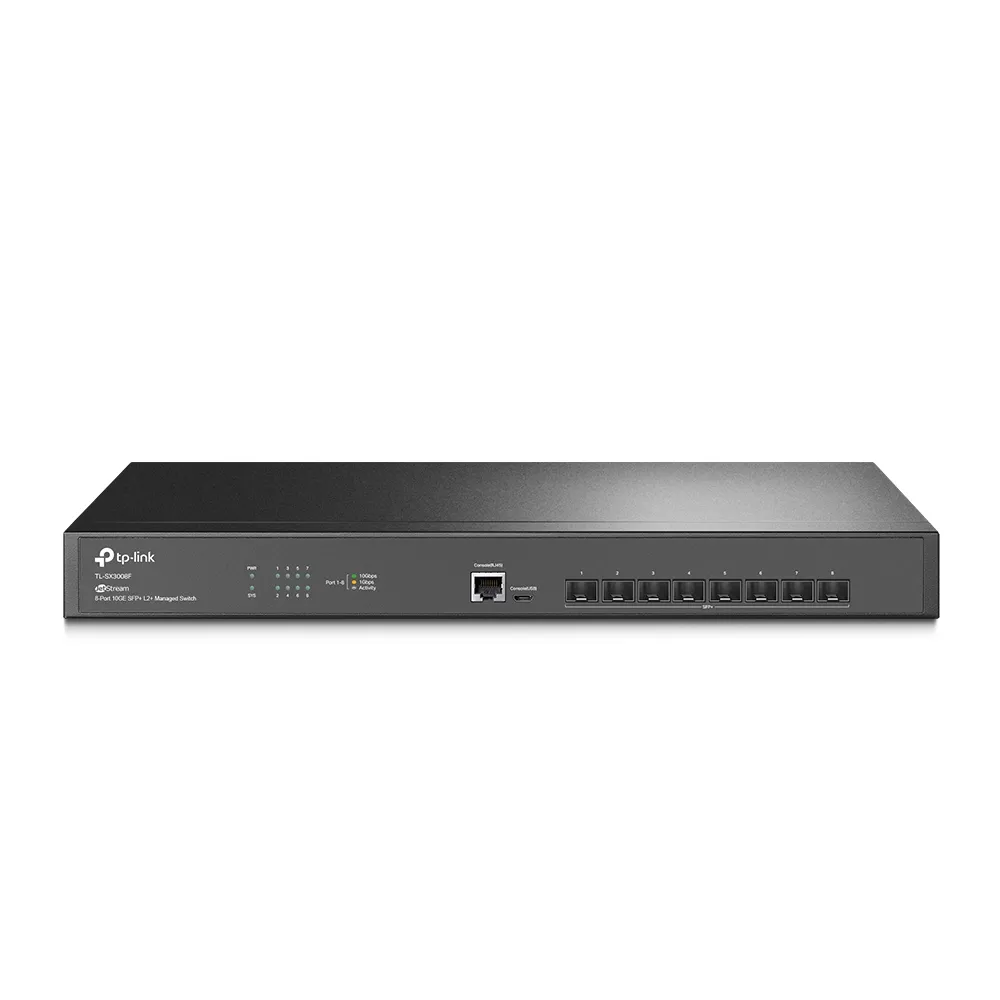

TP-Link JetStream™ 8-Port 10GE SFP+ L2+ Managed Switch

Valmistaja: TP-LINK
ID: TL-SX3008F
Tuote ei ole saatavilla
Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.

Tärkeimmät tekniset tiedot

Valitse yksi tai useampi ominaisuus etsiäksesi tuotteita, joilla on samat tekniset tiedot.
Tuotetiedot
Kuvaus
Myymäläsaatavuus
Toimitus
Hinnan muutokset
Manuals
Liitettävyys
Console-porttiRJ-45/micro-USB
Asennettujen SFP+ moduulien määrä0
Asennettujen SFP moduulien määrä0
Peruskytkentä RJ-45 Ethernet-porttien tyyppicross
Basic kytkentä RJ-45 Ethernet-porttien määrä0
SFP+ -moduulipaikkojen määrä8
VirtaliitinDC-tulo jakkiliitin
Paino ja mitat
Tuotteen korkeus44 mm
Tuotteen leveys440 mm
Tuotteen syvyys180 mm
Virranhallinta
VoimanlähdeAC
AC-syöttötaajuus50/60 Hz
AC-syöttöjännite220 V
Tehonkulutus (maks.)15,46 W
Virtalähde mukanacheckmark
Ympäristöolosuhteet
Käytön suhteellinen kosteus (H-H)10 - 90%
Varastointilämpötila-40 - 70 °C
Käyttölämpötila (T-T)0 - 45 °C
Säilytysympäristön kosteus5 - 90%
Lämmön poisohjaus52,75 BTU/h
Protokollat
HallintaprotokollaSNMPv1/v2c/v3, SNTP
IPv4- ja IPv6 -ominaisuudetIPv6 Telnet, IPv6 ping, IPv6 tracert
Verkko
VerkkostandarditIEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Virranhallinnan tukicheckmark
Porttien peilauscheckmark
Linkkien yhdistäminencheckmark
Broadcast Storm Controlcheckmark
Nopeuden rajoituscheckmark
IP-reitityscheckmark
VLAN:ien määrä4000
STP-Protokollacheckmark
Head-of-line (HOL) blockingcheckmark
VLAN-tukicheckmark
10G-tukicheckmark
Virtuaalisen LAN:n ominaisuudetPrivate VLAN, Protocol-based VLAN, Voice VLAN
Datasiirto
MAC-osoitetaulukko32000 entries
Kytkentäkapasiteetti160 Gbit/s
Jumbo Frames -tukicheckmark
Jonojen määrä8
Forwarding rate119,04 Mpps
Laitteen puskurimuistiin16 MB
Jumbo frames9000
Staattinen reitticheckmark
Pakkaustiedot
Pakkauksen paino2,37 kg
Pakkauksen syvyys250 mm
Pakkauksen korkeus80 mm
Pakkauksen leveys528 mm
PakkaustyyppiLaatikko
Suojaus
Tietoturva-algoritmitHTTPS, SSH, SSH-2, SSL/TLS
MAC-osoitteensuodatuscheckmark
Staattisen portin turvallisuuscheckmark
Pääsynhallintalistacheckmark
SSH/SSL-tukicheckmark
IGMP snoopingcheckmark
Todennuksen lajiAAA, TACACS+
Kehäsuojauscheckmark
BPDU suodatus/suojauscheckmark
IP-MAC-portti-yhdistyscheckmark
TodennustapaVieras VLAN, MAC-pohjainen tunnistautuminen, Porttiperusteinen tunnistatuminen, Verkkopohjainen todennus
Queue scheduling algorithmsSP, WRR+SP, Weighted Round Robin (WRR)
DHCP-ominaisuudetDHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Sertifikaatit
SertifiointiCE, FCC, RoHS
Hallintaominaisuudet
MIB-tukiRFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
KytkinkerrosL2/L3
Quality of Service -tukicheckmark
Verkkosivupohjainen hallintacheckmark
Järjestelmän tapahtumien lokicheckmark
Kytkin tyyppiHallittu
Liikenteen luokittelucheckmark
ARP-tarkastuscheckmark
Configuring Location Settings (CLI)checkmark
Pilvipalvelussa hallinnoitucheckmark
Pakkauksen sisältö
Sisältää johdotAC
Käyttöopascheckmark
Pika-aloitusopascheckmark
Telineasennussarjacheckmark
Suunnittelu
Telineasennuscheckmark
LED-merkkivalotcheckmark
Tuotteen värimusta
Power over Ethernet (PoE)
Power over Ethernet -tukicross
Logistiikkatiedot
Harmonoidun järjestelmän nimikkeistökoodi (HS)85176990
Multicast-tukicheckmark
Multicast Listener Discovery (MLD) snoopingKyllä
EAN6935364006457
Takuu1 vuosi
Source: Icecat.biz
Future-Proof Your Business with Full 10G Fiber Switch
JetStream 8-Port 10GE SFP+ L2+ Managed Switch

Full Fiber Switch with Lightning-Fast 10G
Build and expand your lightning-fast network with TP-Link TL-SX3008F—a fully managed switch with full 8-port 10G fiber ports and 160 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.

Seamless Integration to Omada Cloud SDN
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking
Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.

Enterprise Level Features
A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reducing unnecessary traffic, while IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.

Advanced Quality of Service (QoS)
Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.

ISP Features
Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.

IPv6 Support
An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.
