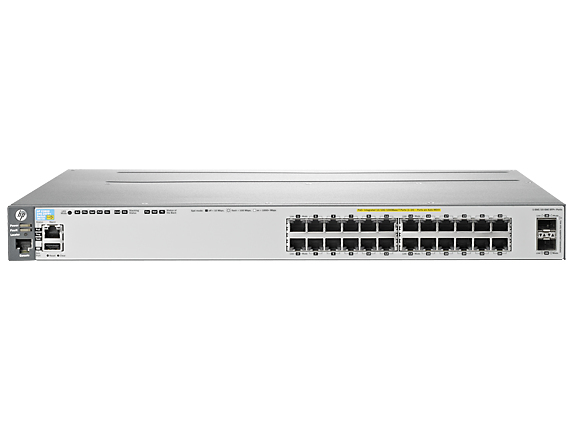

HPE Switch 3800-24G-PoE+-2SFP+ Layer3 Switch - 24x 10/100/1000T PoE+ portia (30w) + 2x 1GbE/10GbE SFP+ porttia (PoE Budjetti 720 W). 1x pinoamismoduli paikka.

Valmistaja: HEWLETT-PACKARD
ID: J9573A#ABB
Tuote ei ole saatavilla
Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.
Tuotetiedot
Kuvaus
Myymäläsaatavuus
Toimitus
Hinnan muutokset
Liitettävyys
Console-porttiRJ-45
Asennettujen SFP+ moduulien määrä2
Peruskytkentä RJ-45 Ethernet-porttien tyyppiGigabit Ethernet (10/100/1000)
Basic kytkentä RJ-45 Ethernet-porttien määrä24
SFP+ -moduulipaikkojen määrä2
Paino ja mitat
Paino7,21 kg
Tuotteen korkeus43,2 mm
Tuotteen leveys467,4 mm
Tuotteen syvyys442,7 mm
Virranhallinta
Virrankulutus127 W
AC-syöttötaajuus50 - 60 Hz
AC-syöttöjännite100-240
Ympäristöolosuhteet
Käyttölämpötila (T-T)0 - 55 °C
Lämmön poisohjaus434 BTU/h
Verkko
Täysin kaksipuolinencheckmark
VerkkostandarditIEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u
Virranhallinnan tukicheckmark
Porttien peilauscheckmark
Linkkien yhdistäminencheckmark
Nopeuden rajoituscheckmark
DHCP-asiakascheckmark
DHCP servericheckmark
IP-reitityscheckmark
IGMP snoopingcheckmark
STP-Protokollacheckmark
VLAN-tukicheckmark
Routing entries10000
10G-tukicheckmark
Automaattinen tunnistuscheckmark
Datasiirto
MAC-osoitetaulukko65500 entries
Kytkentäkapasiteetti88 Gbit/s
Latenssi (1 Gbps)2,8 us
Latenssi (10 Gbps)1,9 us
Suoritusteho65,4 Mpps
Suojaus
Pääsynhallintalistacheckmark
SSH/SSL-tukicheckmark
Hallintaominaisuudet
MIB-tukiKyllä
KytkinkerrosL3
Quality of Service -tukicheckmark
Multicast-tukicheckmark
Verkkosivupohjainen hallintacheckmark
Kytkin tyyppiManaged network switch
Suunnittelu
Telineasennuscheckmark
Kotelo1U
Tuotteen väriHarmaa
Power over Ethernet (PoE)
Power over Ethernet -tukicheckmark
Power over Ethernet (PoE) arvioitu kokonaismäärä720 W
Suorituskyky
Sisäinen muisti2048 MB
Flash-muisti4096 MB
Pinottavacheckmark
Laitteen puskurimuistiin18 MB
EAN0886112091156
Takuu1 vuosi
Source: Icecat.biz

The HP 3800 Switch Series is a family of nine fully managed Gigabit Ethernet switches available in 24-port and 48-port models, with or without PoE+, and with either SFP+ or 10GBASE-T uplinks. The 3800 Switch Series utilizes the latest HP ProVision ASIC technology and advances in hardware engineering to deliver one of the most resilient and energy-efficient switches in the industry. Meshed stacking technology is implemented in the HP 3800 Switch Series to deliver chassis-like resiliency in a flexible, stackable form factor.

Software-defined networking

• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths


Quality of Service (QoS)

• Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis


Management

• Friendly port names: allows assignment of descriptive names to ports


Connectivity

• Jumbo frames: on Gigabit Ethernet and 10-Gigabit Ethernet ports, jumbo frames allow high-performance remote backup and disaster-recovery services


Performance

• Selectable queue configurations: allows for increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications


Resiliency and high availability

• Nonstop switching and routing: improves network availability to better support critical applications such as unified communication and mobility; traffic will continue to be forwarded during failover when the backup member of the stack becomes the commander


Layer 2 switching

• GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs
