Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
Floppy disk drive connector | |
PCI Express connector | |
Motherboard power connector | 24-pin ATX |
Floppy drive power connector | 2 |
Number of SATA power connectors | 12 |
Peripheral (Molex) power connectors (4-pin) | 8 |
EPS power connector (8-pin) | |
PCI Express power connectors (6+2 pin) | 6 |
Weight & dimensions | |
Weight | 3.29 kg |
Height | 86 mm |
Width | 150 mm |
Depth | 160 mm |
Energy management | |
Input current | 6 - 12 A |
Nominal power | 860 W |
Efficiency | 92% |
Power protection features | Over current,Over voltage,Short circuit,Under voltage |
Power factor | 0.99 |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 125 W |
Combined power (+12V) | 859.2 W |
Combined power (+5V) | 125 W |
Combined power (-12V) | 9.6 W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 25 A |
Max output current (+12V) | 71.6 A |
Max output current (+5V) | 25 A |
Max output current (-12V) | 0.8 A |
Max output current (+5Vsb) | 3 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 860 W |
Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V |
Packaging data | |
Package dimensions (WxDxH) | 391 x 225 x 151 mm |
Package weight | 4 kg |
Certificates | |
Certification | cTUVs, TUV, CB, CE, FCC, CCC, RCM, GOST-R, KC, IRAM, BSMI |
80 PLUS certification | 80 PLUS Platinum |
Cooling | |
Number of fans | 1 fan(s) |
Cooling type | Active |
Fan diameter | 12 cm |
Design | |
Product colour | Black |
Performance | |
Mean time between failures (MTBF) | 100000 h |
Noise level | 28.7 dB |
Purpose | PC |
On/off switch | |
ATX version | 2.31 |
EPS version | 2.92 |
Power supply unit (PSU) form factor | ATX |
EAN | 843591018692 |
Warranty | 5 years |
Digitally Controlled Power

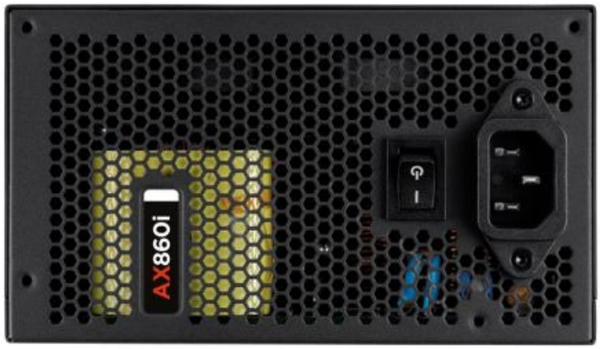

The fully modular Corsair AX860i uses a Digital Signal Processor (DSP) for tighter voltage regulation, which improves overall system stability, and increases performance to 80 PLUS Platinum levels. Built-in Corsair Link gives you unprecedented monitoring and control.
Quiet, Efficient Operation
Upgrading to digital provides increased efficiency. The AX860i is certified 80 PLUS Platinum, which results in lower heat generation and a quieter fan profile. The AX860i is so efficient that the 120mm fan doesn’t even spin at low loads for completely noiseless power delivery.
CORSAIR LINK
The built-in Corsair Link functionality allows you to know how well your AX860i is working at any given moment and lets you quickly tweak its performance. Server-inspired diagnostic tools monitor real-time efficiency, power usage, configurable over-current protection points and fan profiles.
- The latest ATX12V v2.31 and EPS 2.92 standards and it is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems
- Silent at low to moderate load due to high efficiency and zero RPM fanless mode. Ultra quiet at high loads with 120mm dual-ball bearing fan
- 80PLUS Platinum certified, delivering over 92% energy efficiency at real world load conditions
- Active Power Factor Correction (PFC) with PF value of 0.99
- Universal AC input from 90~264V. No more hassle of flipping that tiny red switch to select the voltage input!
- A dedicated single +12V rail offers maximum compatibility with the latest components
- Over-voltage and over-current protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components
- High-quality Japanese capacitors provide uncompromised performance and reliability
- The completely modular cable system allows you to use only the cables you need. Power supply upgrade and replacement is easy, as the cables only need to be disconnected at the power supply
- Low-profile, flat cable design reduces air friction and helps maximize airflow through your computer’s chassis
- A Seven year warranty and lifetime access to Corsair’s legendary technical support and customer service
- Safety Approvals: cTUVs, TUV, CB, CE, FCC, CCC, RCM, GOST-R, KC, IRAM, BSMI
