Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Technical details | |
| Form factor | ATX |
| USB version | 2.0 |
| USB ports quantity | 6 |
| Product type | Server/Workstation Board |
| Status | Discontinued |
| Launch date | Q3'09 |

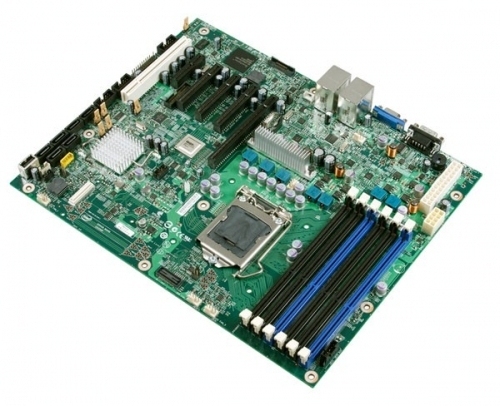

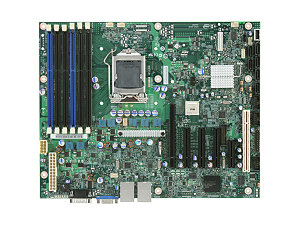

| Product name | Intel Server Board S3420GPLX |
| PCI Support | 32 bit/ 33 mhZ |
| Born on date | Q3'09 |
| Maximum memory | 32 GB |
| Supported RAID configuration | 0, 1, 10, 5 |
| Last change | 63903513 |
| Expected discontinuance date | Q4'12 |
| Additional information URL | http://www.intel.com/Products/Server/Motherboards/S3420GP/S3420GP-overview.htm |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 |
| Intel Xeon series | 3400, X3400 |
| Maximum number of PCI Express lanes | 6 |
| Maximum internal memory supported by processor | 32 GB |
| Memory bandwidth supported by processor (max) | 1333 GB/s |
| ECC supported by processor |  |
| Product family | Single-socket server board |
| Product series | Intel S3420GP |
| Product codename | Grosse Point |
| Memory | |
| Memory slots | 6 |
| Maximum internal memory | 32 GB |
| ECC | |
| Memory bandwidth (max) | 1333 GB/s |
| Supported memory clock speeds | 1066,1333 MHz |
| Supported memory types | DDR3 |
| Memory channels | Dual-channel |
| Maximum RDIMM memory | 32 GB |
| Number of memory slots | 6 |
| Networking | |
| Ethernet LAN | |
| Wi-Fi |  |
| Ethernet interface type | Gigabit Ethernet |
| Internal I/O | |
| Number of SATA connectors | 6 |
| USB 2.0 connectors | 4 |
| Total number of SATA connectors | 6 |
| Back panel I/O ports | |
| Serial ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Storage controllers | |
| RAID levels | 0, 1, 10, 5 |
| Expansion slots | |
| PCI slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express x8 slots | 2 |
| PCI Express x4 slots | 2 |
| PCI Express slots version | 1.0, 1.1, 2.0, 2.1 |
| PCI Express x4 (Gen 1.x) slots | 1 |
| PCI Express x8 (Gen 1.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI |
| Other features | |
| Chassis type | Tower |
| Number of DIMM slots | 6 |
| Maximum UDIMM memory | 32 GB |
| CPU configuration (max) | 1 |
| Embedded options available | |
| Supplemental SKU | |
| PCI Express x8 (Gen 2.x) slots | 2 |
| Motherboard ARK ID | 46545 |
| Graphics | |
| On-board graphics card | |
| Processor special features | |
| Intelligent Platform Management Interface (IPMI) support | IPMI 2.0 |
| Intel Advanced Management Technology | |
| Intel Intelligent Power Node Manager | |
| Intel® Matrix Storage Technology (Intel® MST) | |
| Intel Server Management Software | |
| Intel Remote Management Module Support | AXXRMM3 |
| Integrated BMC with IPMI | |
| Intel Server Customization Technology | |
| Intel Build Assurance Technology | |
| Intel Quiet Thermal Technology | |
| Intel Efficient Power Technology | |
| Connector for Intel I/O Expansion Module x4 Gen 1 | 1 |
| Features | |
| Motherboard chipset | Intel 3420 |
| Motherboard form factor | ATX |
| Component for | Server |
| Market segment | Server |
| EAN | 675901040297 |
| Warranty | 1 year |
ECC Memory
Error Correction Code Memory uses additional bits to check data integrity and help to improve the quality of memory functions.
Graphics
Intel Graphics Technology provides a visually stunning experience optimized for Blu-ray and HD video with Windows Vista support and comes standard with many notebooks, desktop computers and motherboards—without the need to add an external and costly graphics card.
Intel Matrix Storage Technology
Intel Matrix Storage Technology provides new levels of protection, performance, and expandability in 2008 for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure.
Error Correction Code Memory uses additional bits to check data integrity and help to improve the quality of memory functions.
Graphics
Intel Graphics Technology provides a visually stunning experience optimized for Blu-ray and HD video with Windows Vista support and comes standard with many notebooks, desktop computers and motherboards—without the need to add an external and costly graphics card.
Intel Matrix Storage Technology
Intel Matrix Storage Technology provides new levels of protection, performance, and expandability in 2008 for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure.
