NUC i5-4250U Gen4/mSATA/2,5"/M-DP/M-HDMI/HD5000

Processor
Processor model	i5-4250U
Processor lithography	22 nm
L3 cache	3 MB
Compatible processor series	Core i5
Processor family	Intel
Processor socket	BGA1168
Supported processor frequency (max)	1.3 GHz
Processor cores	2
Processor threads	4
Built-in processor
Number of processors supported	1
Processor boost frequency	2.6 GHz
Processor frequency	1.3 GHz
Thermal Design Power (TDP)	15 W
Memory
Maximum internal memory	16 GB
ECC
Memory bandwidth (max)	25.6 GB/s
Memory voltage	1.35 V
Supported memory clock speeds	1333,1600 MHz
Supported memory types	DDR3L-SDRAM
Memory channels	Dual
Memory slots type	SO-DIMM
Number of memory slots	2
Audio
Audio output channels	7.1
Intel® High Definition Audio (Intel® HD Audio)
Ports & interfaces
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Microphone in
S/PDIF out port
DC-in jack
HDMI ports quantity	1
HDMI version	1.4a
Mini HDMI ports quantity	1
Mini DisplayPorts quantity	1
Combo headphone/mic port
Consumer infrared headers
DisplayPort version	1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Weight & dimensions
Height	5.15 cm
Width	11.7 cm
Depth	11.2 cm
Energy management
Power supply type	External AC adapter
AC adapter output voltage	19 V
Power supply	65 W
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Networking
Networking features	Gigabit Ethernet
Ethernet LAN
Bluetooth
Wi-Fi
Storage
Card reader integrated
Storage drive interface	mSATA
Number of storage drives supported	2
Storage drive sizes supported	2.5"
Supported storage drive types	SSD
Certificates
Certification	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, FCC CFR Title 47 A/B, ICES-003, EN 55022, EN 55024, VCCI V-3, V-4, KN-22, KN-24, CNS 13438, CISPR 22, RoHS
Operating system/software
Compatible operating systems	Windows Linux
Operating system installed
Packaging content
AC adapter included
Quick start guide
Power cord included
Expansion slots
Mini PCI Express slots	2
Other features
Number of SATA connectors	2
Package size	116.6 x 112 x 34.5
Design
Chassis type	UCFF
LED indicators	HDD, Power, Reset
Product colour	Black, Silver
Panel mounting interface	75 x 75,100 x 100 mm
Cooling type	Active
Product type	Mini PC barebone
Graphics
Graphics card	HD Graphics 5000
Graphics card family	Intel
On-board graphics card
Processor special features
Intel® Identity Protection Technology (Intel® IPT)
Intel® Anti-Theft Technology (Intel® AT)
Intel Smart Connect Technology
Intel® vPro™ Technology
Intel® Hyper Threading Technology (Intel® HT Technology)
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology
Intel® InTru™ 3D Technology
Intel® Wireless Display (Intel® WiDi)
Intel FDI Technology
Intel® Clear Video HD Technology (Intel® CVT HD)
Intel® Insider™
Intel® Smart Cache
Intel® AES New Instructions (Intel® AES-NI)
Enhanced Intel SpeedStep Technology
Execute Disable Bit
Idle States
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Thermal Monitoring Technologies
Intel Trusted Execution Technology
Intel VT-x with Extended Page Tables (EPT)
Embedded options available
Intel Rapid Storage Technology
Intel TSX-NI
Intel® Secure Key
Intel 64
Intel ME Firmware Version	9.5
Performance
BIOS memory size	64 MB
Power management
Maximum resolution	3840 x 2160 pixels
BIOS type	EEPROM
PC health monitoring	Temperature
Back-to-BIOS button
Intel Visual BIOS
Intel Express BIOS update
EAN	5032037058674
Source: Icecat.biz

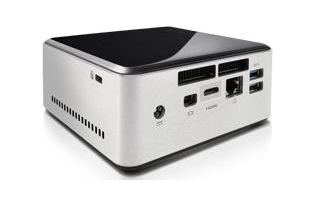

Sleek, shiny, and with a smaller footprint than a wireless modem, the Intel® NUC with the 4th generation Intel® Core™ i5 processor is at home in your living room, your office, or your media center. The D54250WYK SKU of Intel NUC is equipped with Intel® Turbo Boost Technology 2.0, automatically allowing processor cores to safely run faster than the base operating frequency. It also includes Intel® Rapid Start Technology, ensuring you are quickly up and running, and Intel® Smart Connect Technology to keep you up to date at all times.

The Intel NUC comes complete with Intel® HD Graphics 5000 to ensure a brilliant HD experience, Intel® Quick Sync Video for fast video encoding, and DisplayPort 1.2 for driving 4k displays. Couple this with a stereo/mic jack along with four USB 3.0 ports and an infrared sensor for your remote control, and you can create a home entertainment system, a gaming machine, a digital jukebox, or all of the above. You can immerse yourself in movies, TV, or games in 4 inches square without the need for discrete hardware. The Intel NUC: as small as a game controller, as powerful as a jackhammer.
