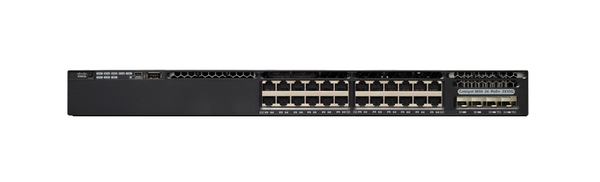

Cisco Catalyst 3650-24PD-E - Kytkin - L3 - Hallinnoitu - 24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ - työpöytä, räkkiin asennettava - PoE+ (390 W)
Manufacturer: CISCO
ID: WS-C3650-24PD-E
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| Weight & dimensions | |
| Weight | 7.26 kg |
| Height | 44 mm |
| Width | 445 mm |
| Depth | 448 mm |
| Energy management | |
| Power consumption (typical) | 67.75 W |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support |  |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
| Operating altitude | 0 - 1500 m |
| Operating relative humidity (H-H) | 5 - 96% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Non-operating altitude | 0 - 5000 m |
| Networking | |
| Full duplex | |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Link aggregation | |
| Rate limiting | |
| IP routing | |
| Auto MDI/MDI-X | |
| Number of VLANs | 4094 |
| Spanning tree protocol | |
| VLAN support | |
| 10G support | |
| Data transmission | |
| MAC address table | 32000 entries |
| Switching capacity | 254 Gbit/s |
| Jumbo frames support | |
| Security | |
| Access Control List (ACL) | |
| SSH/SSL support | |
| IGMP snooping | |
| Management features | |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Switch type | Managed |
| Other features | |
| Bandwidth | 160 Gbit/s |
| Design | |
| Rack mounting | |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM |
| Form factor | 1U |
| LED indicators | |
| Product colour | Black |
| Stackable | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 390 W |
| Performance | |
| Internal memory | 4096 MB |
| Mean time between failures (MTBF) | 528280 h |
| Flash memory | 2000 MB |
| Memory type | DRAM |
| Noise level | 48 dB |
| Multicast features | |
| Multicast support | |
| EAN | 0882658593512 |
| Warranty | 3 months |
| Source: Icecat.biz | |
The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
