Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
DC-in jack | |
Video port type | HDMI |
RS-232 ports | 1 |
HDMI ports quantity | 9 |
HDMI in | 8 |
Number of HDMI outputs | 1 |
Weight & dimensions | |
Weight | 2 kg |
Height | 44 mm |
Width | 159.8 mm |
Depth | 437 mm |
Energy management | |
Power consumption (typical) | 3.73 W |
Operational conditions | |
Operating relative humidity (H-H) | 0 - 80% |
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | 0 - 50 °C |
Storage relative humidity (H-H) | 0 - 80% |
Packaging data | |
Package weight | 2.48 kg |
Package depth | 540 mm |
Package height | 233 mm |
Package width | 116 mm |
Packaging content | |
AC adapter included | |
Remote control included | |
User guide | |
Mounting kit | |
Quantity per pack | 1 pc(s) |
Features | |
Rack mounting | |
Plug and Play | |
Material | Metal |
LED indicators | |
Maximum resolution | 1920 x 1200 pixels |
Product colour | Black, Silver |
Maximum operating distance | 15 m |
Bandwidth | 225 MHz |
Input impedance | 100 Ω |
Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
Supported video modes | 480p, 720p, 1080i, 1080p |
HDCP | |
Output impedance | 100 Ω |
Maximum refresh rate | 60 Hz |
3D | |
Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
HD type | Full HD |
Consumer Electronics Control (CEC) support | |
Logistics data | |
Master (outer) case height | 258 mm |
Master (outer) case width | 375 mm |
Master (outer) case gross weight | 8.14 kg |
Master (outer) case length | 565 mm |
Products per master (outer) case | 3 pc(s) |
Master (outer) case net weight | 6 kg |
EAN | 4710423776326 |
Warranty | 2 years |
Source: Icecat.biz |

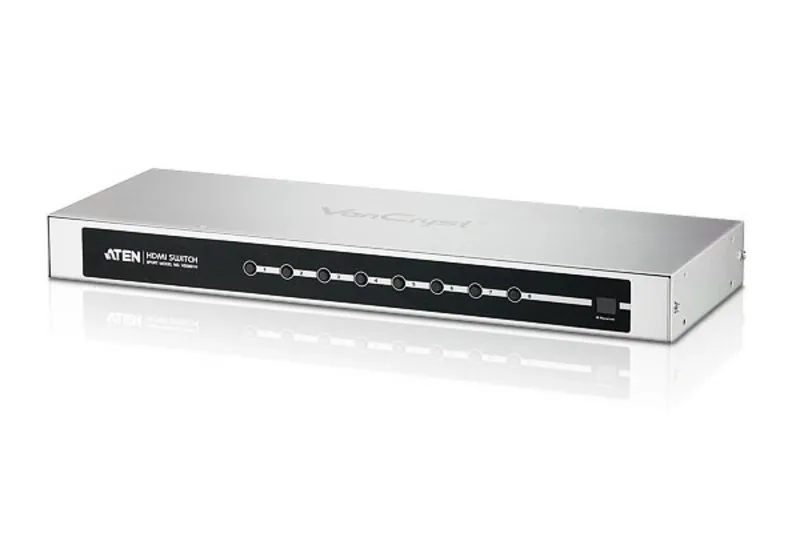

With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS0801H 8-port HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to eight HDMI A/V sources (such as an HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray player, home theater PC, stand-alone streaming media player, gaming console, etc.) that are connected to your HDMI display.

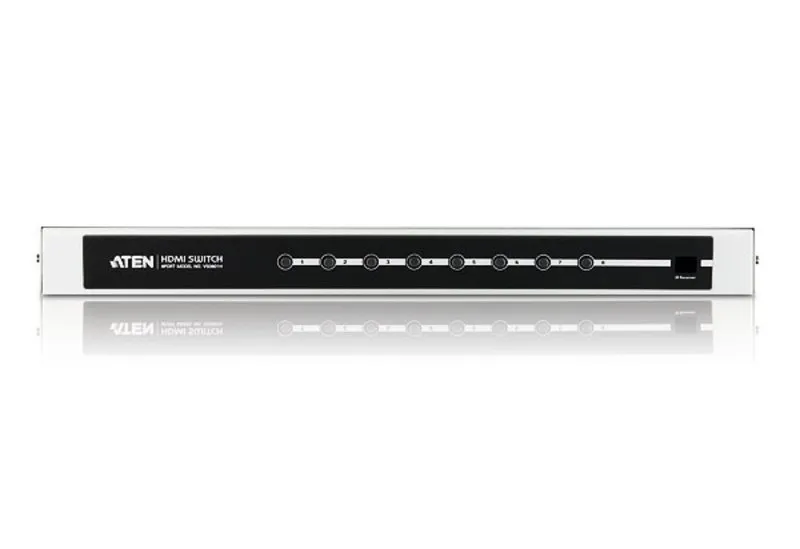

The remote control and convenient front panel pushbuttons allow you to quickly and easily toggle between HDMI sources, while the front panel LEDs indicate the source device at a glance. Furthermore, for complete system and install integration, RS-232 control is standard through the VS0801H's built-in bi-directional RS-232 serial remote port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.
