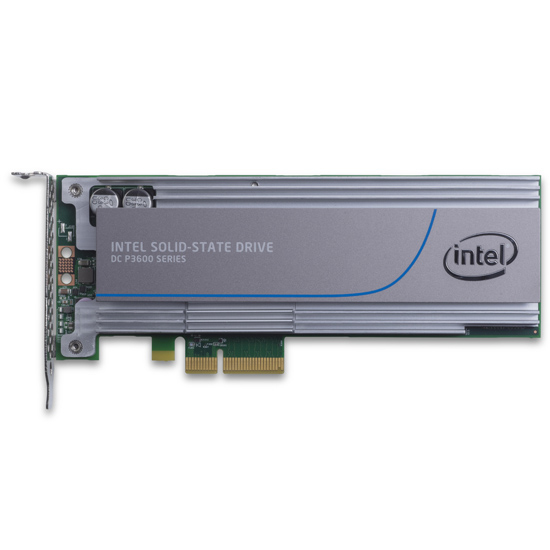

Intel Solid-State Drive DC P3600 Series - Puolijohdeasema - 400 Gt - sisäinen - PCI Express 3.0 x4 (NVMe)

Technical details
Device type	SSD
Weight & dimensions
Weight	185 g
Energy management
Power consumption (idle)	4 W
Power consumption (read)	8 W
Power consumption (write)	7 W
Operational conditions
Storage temperature (T-T)	-55 - 95 °C
Operating temperature (T-T)	0 - 55 °C
Operating shock	50 G
Maximum operating temperature	55 °C
Non-operating vibration	3.13 G
Operating vibration	2.17 G
Maximum operating altitude	10000 m
Maximum non-operating altitude	40000 m
Operating / non-operating shock	50 G Trapezoidal, 170 in/s
Brand-specific features
Intel High Endurance Technology (HET)
Other features
Internal
Processor lithography	20 nm
Product colour	Silver
Endurance rating	2.19 PB
Sequential writing speed	550 MB/s
Sequential reading	2100 MB/s
Status	Discontinued
SSD weight	185gm
SSD power consumption (active)	8W (write), 7W (read)
SSD power consumption (idle)	4W
SSD endurance rating	2.19 PBW (JEDEC workload)
Launch date	Q2'14
Product name	Intel SSD DC P3600 Series (400GB, 1/2 Height PCIe 3.0, 20nm, MLC)
Product brief URL	http://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/intel-ssd-dc-family-for-pcie-brief.pdf
SSD shock	50 G Trapezoidal, 170 in/s
Born on date	Q2'14
Drive capacity	400 GB
Last change	63903513
Product family	Data center SSD
Product series	Intel DC P3600
Product codename	Fultondale
Features
Drive capacity	400 GB
Interface	PCI Express 3.0
Certification	UL, CE, C-Tick, BSMI, KCC, Microsoft WHQL, VCCI
Mean time between failures (MTBF)	2000000 h
Memory type	MLC
Read speed	2100 MB/s
Write speed	550 MB/s
Windows operating systems supported
Linux operating systems supported
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Lithography	20 nm
Read latency	120 µs
Write latency	30 µs
Enhanced Power Loss Data Protection technology
Random write (100% span)	30000 IOPS
Random read (100% span)	320000 IOPS
SSD temperature monitoring
PCI Express interface data lanes	x4
End-to-End Data Protection
SSD form factor	Half-Height/Half-Length (HH/HL)
Market segment	Server
SSD ARK ID	80996
SSD usage tag	Data center
NVMe
PCI Express CEM revision	2.0
Temperature monitoring and logging
Logistics data
Harmonized System (HS) code	8523510000
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G149950
Sustainability
Sustainability certificates	RoHS
EAN	0735858278218
Warranty	1 year
Source: Icecat.biz

Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

High Endurance Technology (HET)
High Endurance Technology (HET) in SSD's combines Intel® NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.

Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.

End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
