| Processor | |
| Processor model | E3-1260LV5 |
| Processor lithography | 14 nm |
| Processor family | Intel Xeon |
| Processor socket | LGA 1151 |
| Stepping | R0 |
| Processor cores | 4 |
| VID Voltage Range | 0.55 - 1.52 V |
| System bus rate | 8 GT/s |
| Processor threads | 8 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.9 GHz |
| Component for | Server/workstation |
| Processor cache | 8 MB |
| Bus type | DMI3 |
| Thermal Design Power (TDP) | 45 W |
| Processor cache type | Smart Cache |
| Processor series | Intel Xeon E3-1200 v5 |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Memory | |
| ECC |  |
| Memory channels | Dual-channel |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory voltage supported by processor | 1.35 V |
| Weight & dimensions | |
| Processor package size | 37.5 - 37.5 mm |
| Other features | |
| Compatibility | Intel® Server Board S1200SPO Intel® Server Board S1200SPL Intel® Server Board S1200SPS Intel® Server System R1304SPOSHBN Intel® Server System R1304SPOSHOR Intel® Server System R1208SPOSHOR |
| Graphics | |
| On-board graphics card |  |
| Processor special features | |
| Intel® Hyper Threading Technology (Intel® HT Technology) | |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | |
| Enhanced Intel SpeedStep Technology | |
| Intel Trusted Execution Technology | |
| Intel VT-x with Extended Page Tables (EPT) | |
| Intel TSX-NI | |
| Intel® Secure Key | |
| Intel 64 | |
| Intel® OS Guard | |
| Intel Virtualization Technology for Directed I/O (VT-d) | |
| Intel Software Guard Extensions (Intel SGX) | |
| Intel Virtualization Technology (VT-x) | |
| Conflict-Free processor | |
| Features | |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| PCI Express slots version | 3.0 |
| Execute Disable Bit | |
| Idle States | |
| Thermal Monitoring Technologies | |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Embedded options available | |
| Graphics & IMC lithography | 14 nm |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| Maximum number of PCI Express lanes | 16 |
| EAN | 5397063826391 |
| Warranty | 1 year |
| Source: Icecat.biz | |

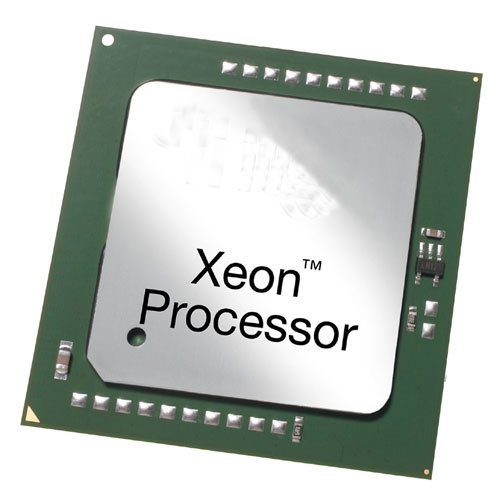

The Intel® E3-1260L v5 2.90 GHz Quad Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption.
Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the E3-1260L v5 2.90 GHz Quad Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the E3-1260L v5 2.90 GHz Quad Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
