Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Technical details | |
| Sustainability certificates | RoHS |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| CPU power connector (4+4 pin) |  |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connectors (8-pin) | 1 |
| Cabling type | Semi-Modular |
| Weight & dimensions | |
| Height | 87 mm |
| Width | 150 mm |
| Depth | 160 mm |
| Energy management | |
| Input current | 10 A |
| Nominal power | 750 W |
| Efficiency | 85% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 744 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Max output current (+12V1) | 62 A |
| Total power | 750 W |
| Maximum input current (@110V) | +12V1,+3.3V,+5V,+5Vsb,-12V |
| Packaging data | |
| Manual | |
| Certificates | |
| 80 PLUS certification | 80 PLUS Bronze |
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Fan location | Top |
| Performance | |
| Certification | CE, CB, FCC, cULus |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| ATX version | 2.3 |
| Power supply unit (PSU) form factor | ATX |
| EAN | 4710713239210 |

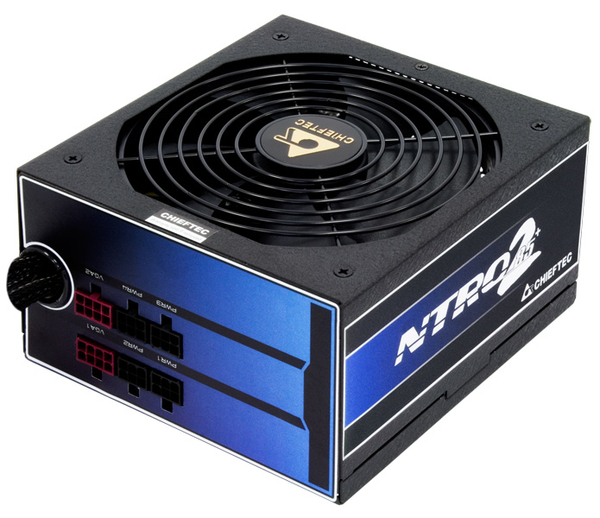

BPS-750C2
The NITRO II 85+ series expands CHIEFTEC's power supply portfolio for demanding users. The board design with advanced technology as well as high end components guarantee the top quality of the power supplies. BPS-750C2 is silent and powerful, its energy efficiency saves the environment and your money.
