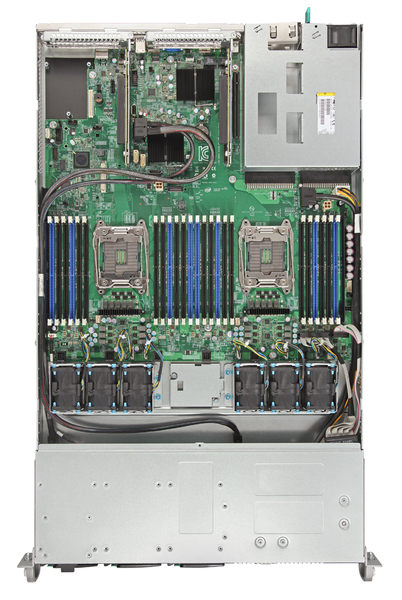

Name: Intel Server System R1208WT2GSR - Palvelin - telineasennettava - 1U - 2-teinen - RAM 0 Gt - SATA - pikavaihto 2.5" - ei kiintolevyä - GigE - monitori: ei ole
Brand: Intel
SKU: 1411728
Price: 1388.90 EUR

Processor
Motherboard chipset	Intel C612
Motherboard form factor	Custom 16.7" x 17"
Compatible processor series	Intel® Xeon®
Processor family	Intel Xeon
Processor socket	LGA 2011
Built-in processor
Intel Xeon series	E5-2600
Number of processors supported	2
Maximum internal memory supported by processor	1.54 TB
Memory
Maximum internal memory	1.54 TB
ECC
Number of DIMM slots	24
Supported memory types	DDR4
Supported RDIMM clock speeds	1600,1866,2133,2400 MHz
Ports & interfaces
Serial ports quantity	2
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	1
Number of SATA connectors	10
InfiniBand
USB ports quantity	8
Weight & dimensions
Height	43.7 mm
Width	430 mm
Depth	456 mm
Energy management
Power supply type	AC
Number of power supply units	1
Power supply	750 W
Number of redundant power supplies installed	1
Networking
Ethernet LAN
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Storage
Hot-swap HDD bays
RAID levels	0, 1, 10
Number of storage drives supported	8
Storage drive sizes supported	2.5"
Number of 2.5" bays	8
Embedded USB (eUSB) SSD option
Supported storage drive interfaces	Serial ATA
Packaging data
Packaging content	(1) Intel Server Board S2600WT2R w/ Dual 1GbE; (1) standard control panel board (FXXFPANEL); (1) front I/O panel assembly (front 1xVGA and 2x USB); (8) 2.5 inch hot-swap drive carriers (FXX25HSCAR); (1) 12Gb SAS backplane (F1U8X25S3HSBP); (1) 730mm SAS/SATA Multiport data cable with straight SFF8643 to right angle SFF8643 connectors (AXXCBL1UHRHD); (1) 800mm SAS/SATA Multiport data cable with straight SFF8643 to right angle SFF8643 connectors (AXXCBL1UHRHD); (2) heatsink (FXXCA84X106HS); (2) risers with 1x16 PCIe* 3.0 FHHL slot on each (F1UL16RISER); (1) 750W AC power supply (FXX750PCRPS); (1) Air duct; (6) Dual rotor system fans (FR1UFAN10PW)
Expansion slots
PCI Express x8 slots	1
PCI Express x4 slots	1
PCI Express slots version	3.0
PCI Express x16 (Gen 3.x) slots	2
Other features
On-board graphics card
CPU configuration (max)	2
Product type	System
Status	Launched
Chassis dimensions	430 x 709.9 x 43.7 mm (16.9 x 27.9 x 1.72")
Launch date	Q1'16
Redundant fans	Y
2.5" HDD support	Hot-swap 2.5"
Optical drive supported
Supported RAID configuration	SW RAID 0, 1, 10, optional 5
Last change	63903513
Supported board	Intel Server Board S2600WT2R
Product family	1U server system
Expected discontinuance date	Q3'20
Target market	Cloud/Datacenter
Additional information URL	http://www.intel.com/content/www/us/en/motherboards/server-motherboards/server-board-s2600wt.html
Extended warranty available for purchase (select countries)
Design
Chassis type	Rack (1U)
LED indicators
Product colour	Black, Silver
On/off switch
Rack-Friendly board
Heat sink	2
Heat sink included
Redundant fans support
Rack rails
Processor special features
Intel Fast Memory Access
Intel Flex Memory Access
Intel I/O Acceleration Technology
Intel Advanced Management Technology
Intel Intelligent Power Node Manager
Intel® Matrix Storage Technology (Intel® MST)
Intel Quiet System Technology (QST)
Intel On-Demand Power Redundancy Technology
Intel Rapid Storage Technology
Intel Server Management Software
Intel Remote Management Module Support	Y
Intel Server Customization Technology
Intel Build Assurance Technology
Intel Quiet Thermal Technology
Intel Efficient Power Technology
Intel Rapid Storage Technology enterprise
Intel Virtualization Technology for Directed I/O (VT-d)
Connector for Intel I/O Expansion Module x8 Gen 3	1
Features
Trusted Platform Module (TPM)
Backplanes support
Trusted Platform Module (TPM) version	2.0
Market segment	Server
ARK ID	88284
EAN	5032037075985
Warranty	1 year
Source: Icecat.biz

Intel® Remote Management Module Support
The Intel® Remote Management Module (Intel® RMM) allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).

Integrated BMC with IPMI
IPMI (Intelligent Platform Management Interface) is a standardized interface used for out-of-band management of computer systems. The integrated BMC (Baseboard Management Controller) is a specialized microcontroller that enables IPMI.

Intel® Node Manager
Intel® Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.
