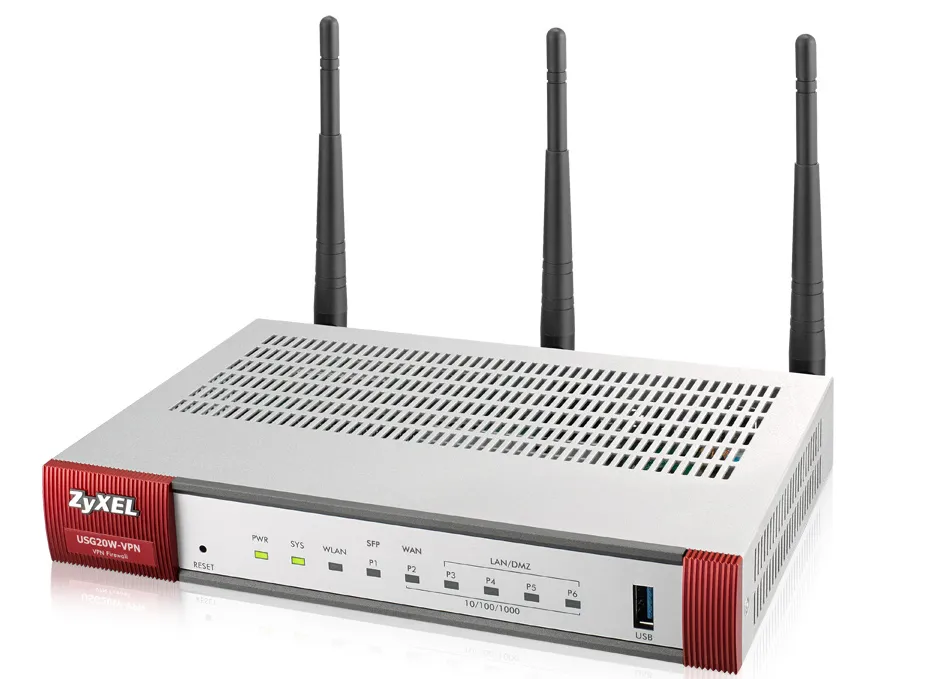

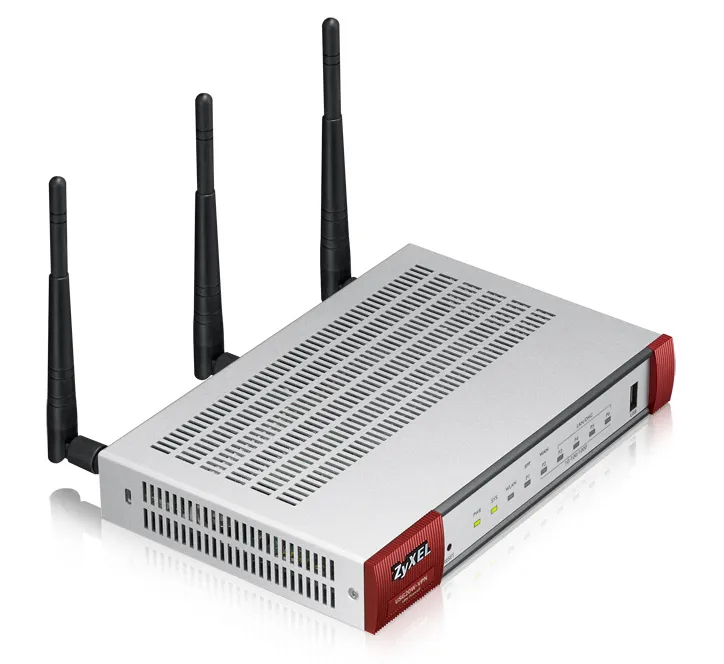

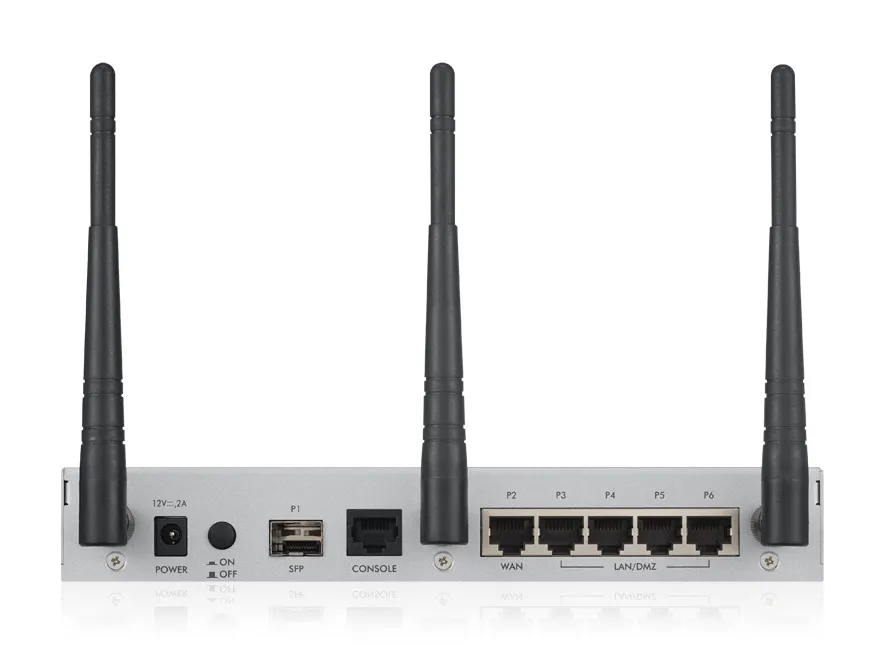

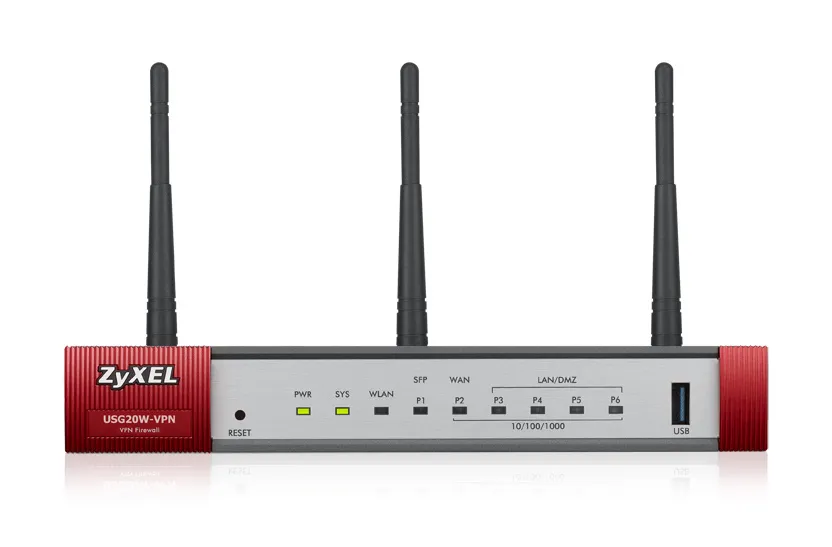

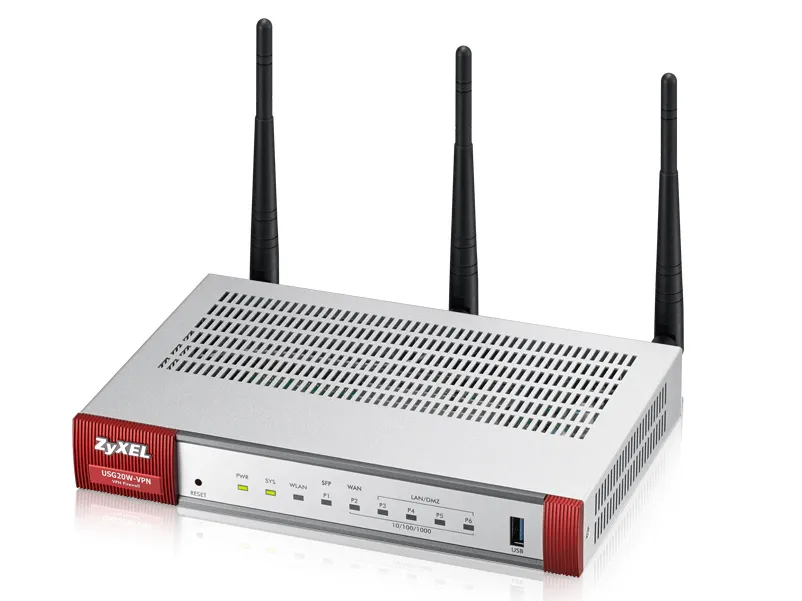

ZYXEL USG 20W-VPN (Device only) Firewall Appliance 1 x WAN 1 x SFP 4 x LAN/DMZ IEEE 802.11ac/n
This product is end of life or currently not available.
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 4 |
DC-in jack | |
USB port | |
Weight & dimensions | |
Weight | 1.14 kg |
Height | 33 mm |
Width | 216 mm |
Depth | 143 mm |
Energy management | |
Power consumption (typical) | 18 W |
Power source type | DC |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -30 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 10 - 90% |
Protocols | |
DHCP client | |
DHCP server | |
Universal Plug and Play (UPnP) | |
Networking | |
Full duplex | |
Cabling technology | 10/100/1000Base-T(X) |
Ethernet LAN | |
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
VPN tunnels quantity | 10 |
Flow control support | |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Auto MDI/MDI-X | |
Ethernet LAN interface type | Gigabit Ethernet |
Packaging data | |
Package weight | 1.5 kg |
Package depth | 185 mm |
Package height | 98 mm |
Package width | 276 mm |
Security | |
Security algorithms | SSID, SSL/TLS |
MAC address filtering | |
System event log | |
DMZ support | |
Firewall | |
Filtering | |
Wireless LAN features | |
Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
WLAN data transfer rate (max) | 1300 Mbit/s |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Management features | |
Quality of Service (QoS) support | |
Web-based management | |
Reset button | |
Packaging content | |
AC adapter included | |
Cables included | LAN (RJ-45) |
Antenna | |
Antenna gain level (max) | 3 dBi |
Antenna connector type | N-type |
Antennas quantity | 3 |
Detachable antenna(s) | |
Other features | |
Frequency band | 2.4 & 5 |
USB ports quantity | 1 |
Design | |
LED indicators | Activity, LAN, Power, WAN, WLAN, WPS |
Product colour | Grey, Red |
Indication light | |
On/off switch | |
Product type | Portable router |
Mobile networking | |
3G | |
4G | |
Features | |
Mean time between failures (MTBF) | 44000 h |
Safety | BSMI, UL |
Electromagnetic compatibility | FCC Part 15 (Class B), IC, CE EMC (Class B), RCM, BSMI |
Heat dissipation | 61.38 BTU/h |
WAN connection | |
DSL WAN | |
Ethernet WAN | |
SIM card slot | |
3G/4G USB modem compatibility | |
EAN | 4718937590896 |
Warranty | 5 years |
Source: Icecat.biz |
Safer, more reliable VPN connections
Faster processors today have vastly boosted the capabilities of attackers to decrypt VPN tunnels. Legacy VPN cryptographic algorithms like Message Digest 5 (MD5) and Secure Hash Algorithm 1 (SHA-1) are no longer sufficient to guarantee secure outbound communications. With supports to the more advanced Secure Hash Algorithm 2 (SHA-2), the VPN Firewall provides the safest VPN connections in its class to ensure maximum security for business communications.
Unlimited business mobility
To support dynamic, mobile business operations in today's BYOD (bring your own device) business environments, the VPN Firewalls offer unlimited business mobility with Layer-2 Tunneling Protocol (L2TP) VPN for mobile devices. The VPN Firewall supports L2TP VPN on a wide variety of mobile Internet devices running the iOS, Android and Windows mobile platforms.
ZyXEL One Network experience
Aiming for relieving our customers from repetitive operations of deploying and managing a network, ZyXEL One Network is designed to simplify the configuration, management, and troubleshooting, allowing our customers to focus on the business priorities.
ZyXEL One Network presents an easy-to-use tool, ZyXEL One Network Utility (ZON Utility) , to realize speed network setup. ZyXEL Smart Connect allows ZyXEL networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling. ZyXEL One Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway.
OneSecurity.com
ZyXEL provides regular updates in response to the latest security threats and advisories, and a service portal that offers free, informative network security resource and know-how to help businesses and IT departments to protect their networks and operations from security risks of the digital age.
The ZyXEL USG and ZyWALL Series of products are integrated with OneSecurity.com service in the product GUI, so the IT staff can quickly and easily catch up with any new threats, and therefore proceed with walkthrough and troubleshooting actions with assistance from FAQs to better secure networks and easily manager UTM products.
