Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| Interface | LAN, WLAN |
| Ethernet LAN (RJ-45) ports | 1 |
| Weight & dimensions | |
| Weight | 500 g |
| Height | 160 mm |
| Width | 80 mm |
| Depth | 30 mm |
| Energy management | |
| Power consumption (typical) | 6.5 W |
| Output power description | 27 dBm |
| Input current | 1 A |
| AC input voltage | 24 V |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 75 °C |
| Protocols | |
| DHCP client |  |
| DHCP server | |
| Security | |
| Security algorithms | 128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA, WPA2 |
| Antenna | |
| Antenna type | External |
| Antenna connector type | RP-SMA |
| Antennas quantity | 2 |
| Design | |
| Internal |  |
| Certification | FCC Part 15.247, IC RS210, CE RoHS |
| LED indicators | |
| Product colour | White |
| Performance | |
| Processor frequency | 400 MHz |
| Internal memory | 64 MB |
| Processor model | Qualcomm Atheros |
| Flash memory | 8 MB |
| Built-in processor | |
| Processor architecture | MIPS 24Kc |
| Features | |
| Maximum data transfer rate | 300 Mbit/s |
| Modulation | OFDM |
| Receiver sensitivity | -96 dBm |
| Frequency band | 5.47 - 5.825 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum outdoor range | 50000 m |
| EAN | 810354022784 |
| Warranty | 2 years |
| Source: Icecat.biz | |

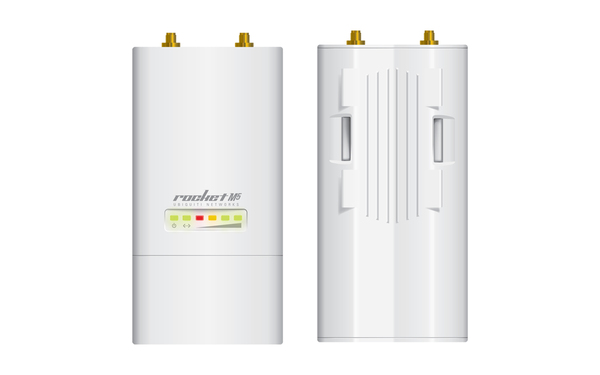

Ubiquiti Rocket M5, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP AirMax base-station applications.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
