ZyXEL RGS200-12P - Managed Layer 2 Gigabit PoE Switch, Black
Manufacturer: ZYXEL
ID: RGS200-12P-ZZ0101F
118890€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 8 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Fiber optic connector | SFP |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| SFP module slots quantity | 4 |
| SFP+ module slots quantity | 4 |
| Weight & dimensions | |
| Weight | 1.45 kg |
| Height | 154 mm |
| Width | 77 mm |
| Depth | 127.3 mm |
| Energy management | |
| Input voltage | 12 - 58 V |
| DC input voltage | 12 - 58 V |
| Power consumption (max) | 255 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 86955 BTU/h |
| Networking | |
| Full duplex |  |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Flow control support | |
| Port mirroring | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Ethernet LAN data rates | 10/100/1000 Mbps Mbit/s |
| Number of VLANs | 1024 |
| Spanning tree protocol | |
| VLAN support | |
| 10G support |  |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto-negotiation | |
| Virtual LAN features | Tagged VLAN |
| Data transmission | |
| MAC address table | 8000 entries |
| Switching capacity | 24 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | |
| Number of queues | 8 |
| Store-and-forward | |
| Packet buffer memory | 0.5 MB |
| Throughput | 17.86 Mpps |
| Jumbo frames | 9000 |
| Packaging data | |
| Package weight | 1.9 kg |
| Package depth | 192 mm |
| Package height | 238 mm |
| Package width | 133 mm |
| Wall mounting kit | |
| Security | |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMP, SSH-2 |
| MAC address filtering | |
| Access Control List (ACL) | |
| SSH/SSL support | |
| IGMP snooping | |
| Loop protection | |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Management features | |
| MIB support | RFC 2233 IF MIB, RFC1213 MIB II, RFC 1757 RMON 1/2/3/9, RFC1215, RFC1493, RFC 2674, LLDP-EXT-MED MIB |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| System event log | |
| Switch type | Managed |
| ARP inspection | |
| Packaging content | |
| Rack mount kit | |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Transmission distance (max) | 40 km |
| Other features | |
| Connectivity technology | Ethernet |
| Bandwidth | 24 Gbit/s |
| Design | |
| Rack mounting | |
| Wall mountable | |
| Product colour | Black |
| Housing material | Metal |
| International Protection (IP) code | IP30 |
| DIN rail mounting | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Performance | |
| Mean time between failures (MTBF) | 568430 h |
| Plug and Play | |
| Buffer size | 512 KB |
| Firmware upgradeable | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Multicast features | |
| Multicast support | |
| EAN | 4718937592050 |
| Warranty | 5 years |

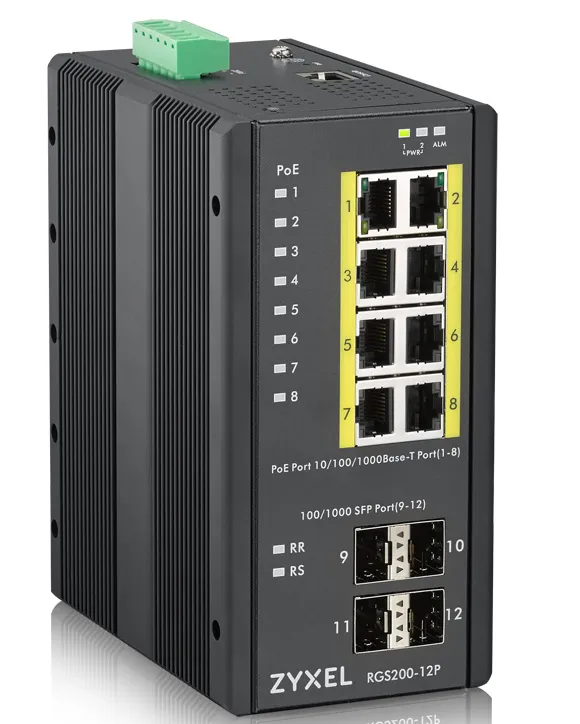

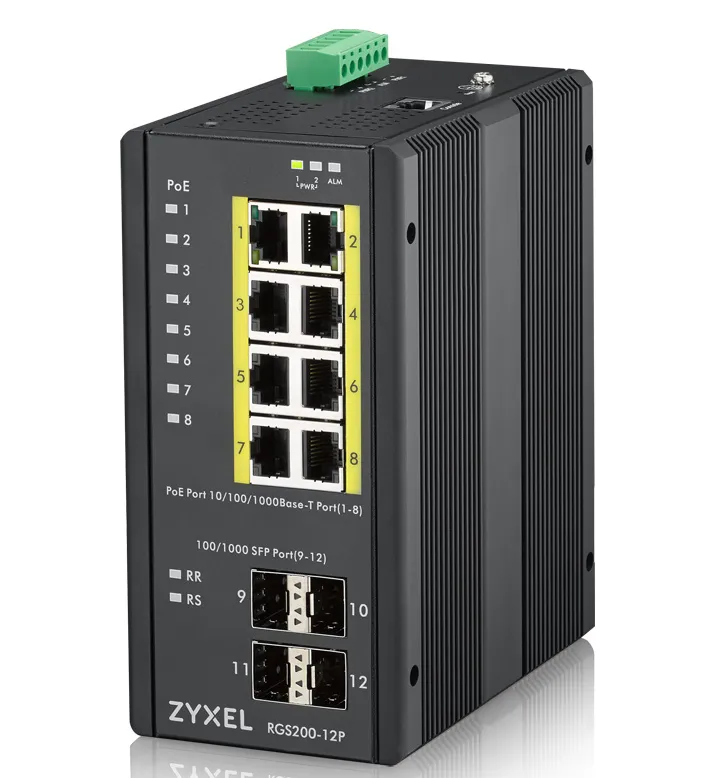

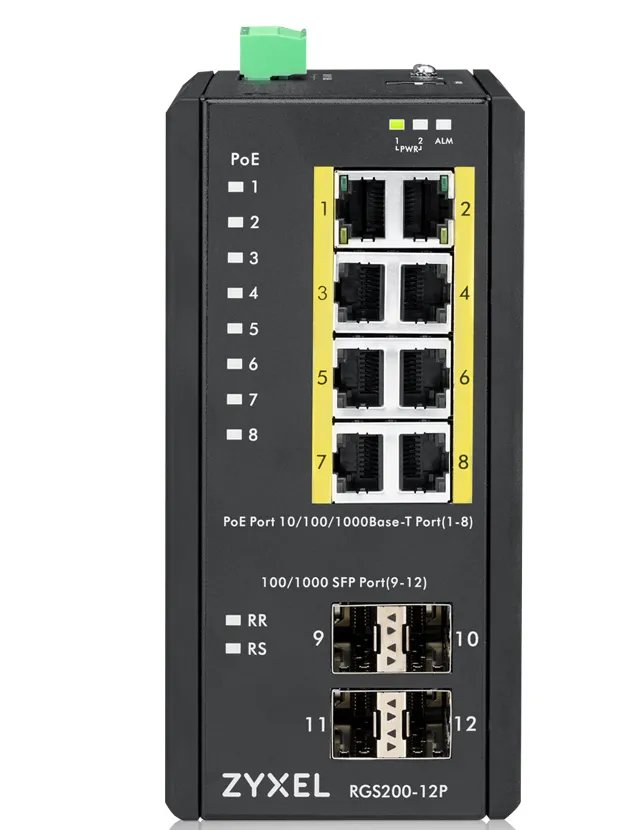

The ZyXEL RGS200-12P-ZZ0101F is a managed Layer 2 Gigabit PoE switch. The unit features eight Gigabit RJ-45 ports and a 24 Gbit/s internal switching capacity. It provides a forwarding throughput of 17.86 Mpps. Four SFP slots allow for fiber optic uplinks, and all eight copper ports support PoE+ to power connected devices via standard cabling.
Housed in an IP30-rated metal enclosure, the device supports DIN-rail, wall, or 19-inch rack mounting. It features a 240 W PoE power budget for connected hardware. Configuration is managed via a web GUI, CLI, SSH-2, or SNMPv3. Layer 2 features include support for up to 1,024 tagged VLANs, as well as IGMP snooping for multicast traffic. Built-in security includes Access Control Lists (ACLs) and ARP inspection.
Key Features:- Quality of Service (QoS) with eight hardware queues for traffic prioritisation.
- MTBF rating of 568,430 hours.
- Supports an 8,000-entry MAC address table and 9,000-byte jumbo frames.

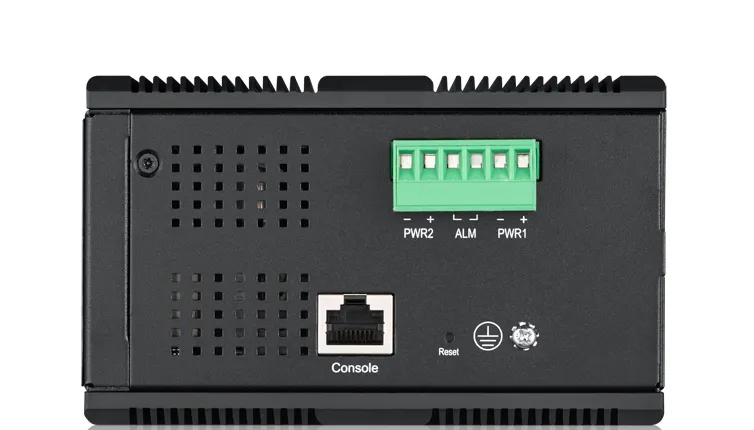

- Accepts a 12-58V DC power input.
