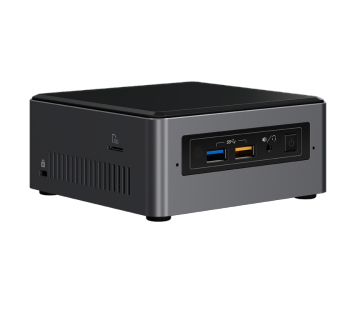

Intel NUC BOXNUC7I3BNH | Intel i3-7100 2.4 Ghz | HD Graphics 620
Manufacturer: INTEL
ID: BOXNUC7I3BNH
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Processor | |
Processor model | i3-7100U |
Processor manufacturer | Intel |
Processor lithography | 14 nm |
L3 cache | 3 MB |
Processor family | Intel Core i3 |
Processor cores | 2 |
Processor threads | 4 |
Built-in processor | |
CPU configuration (max) | 1 |
Processor frequency | 2.4 GHz |
Thermal Design Power (TDP) | 15 W |
Processor codename | Kaby Lake |
Memory | |
Maximum internal memory | 32 GB |
ECC | |
Number of DIMM slots | 2 |
Memory bandwidth (max) | 34.1 GB/s |
Memory voltage | 1.2 V |
Supported memory clock speeds | 2133 MHz |
Supported memory types | DDR4 |
Memory channels | Dual-channel |
Memory slots type | SO-DIMM |
Internal memory | 0GB |
Number of memory slots | 2 |
Removable memory card slot | microSDXC with UHS-I support |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | |
HDMI ports quantity | 1 |
HDMI version | 2.0 |
Mini DisplayPorts quantity | 1 |
Number of SATA III connectors | 2 |
Combo headphone/mic port | |
USB ports quantity | 6 |
Graphics output | HDMI 2.0a; USB-C (DP1.2) |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
M.2 card slot (storage) | 22x42/80 |
Weight & dimensions | |
Height | 51 mm |
Width | 115 mm |
Depth | 111 mm |
Energy management | |
Power supply type | External AC adapter |
AC adapter output voltage | 19 V |
Power supply | 65 W |
Operational conditions | |
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | 0 - 40 °C |
Networking | |
Wi-Fi standards | Wi-Fi 5 (802.11ac) |
Bluetooth version | 4.2 |
Ethernet LAN | |
Bluetooth | |
LAN controller | Intel® I219-V |
Wi-Fi | |
Storage | |
Compatible memory cards | MicroSDHC |
RAID levels | 0,1 |
Total storage capacity | 0GB |
Card reader integrated | |
Maximum storage capacity | 2 TB |
Storage drive interface | M.2, PCI Express, Serial ATA |
Number of storage drives supported | 2 |
Storage drive sizes supported | 2.5" |
Storage media | |
Supported storage drive types | HDD & SSD |
Operating system/software | |
Operating system installed | |
Packaging content | |
AC adapter included | |
Quick start guide | |
Expansion slots | |
PCI Express slots version | 3.0 |
PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
Other features | |
Number of SATA connectors | 2 |
DC input voltage | 12-19 DC |
Processor ARK ID | 95442 |
Design | |
LED indicators | Power |
Product colour | Black |
On/off switch | |
Product type | Mini PC barebone |
VESA mounting | |
Status | Launched |
ARK ID | 95066 |
Graphics | |
Maximum graphics card memory | 32000 MB |
Graphics card family | Intel |
On-board graphics card model | Intel HD Graphics 620 |
On-board graphics card | |
Number of displays supported | 3 |
Processor special features | |
Intel® My WiFi Technology (Intel® MWT) | |
Intel® Identity Protection Technology (Intel® IPT) | |
Intel® Smart Response Technology | |
Intel® Hyper Threading Technology (Intel® HT Technology) | |
Intel® Turbo Boost Technology | |
Intel® Quick Sync Video Technology | |
Intel® InTru™ 3D Technology | |
Intel® Wireless Display (Intel® WiDi) | |
Intel® Clear Video HD Technology (Intel® CVT HD) | |
Intel® Insider™ | |
Intel Flex Memory Access | |
Intel® AES New Instructions (Intel® AES-NI) | |
Enhanced Intel SpeedStep Technology | |
Execute Disable Bit | |
Idle States | |
Thermal Monitoring Technologies | |
Intel Trusted Execution Technology | |
Intel VT-x with Extended Page Tables (EPT) | |
Embedded options available | |
Intel Rapid Storage Technology | |
Intel® High Definition Audio (Intel® HD Audio) | |
Intel® Small Business Advantage (Intel® SBA) | |
Intel TSX-NI | |
Intel® Secure Key | |
Intel 64 | |
Intel Stable Image Platform Program (SIPP) | |
Intel® OS Guard | |
Intel Virtualization Technology for Directed I/O (VT-d) | |
Intel Visual BIOS | |
Intel Express BIOS update | |
Intel Clear Video Technology | |
Intel Virtualization Technology (VT-x) | |
Intel® Optane™ Memory Ready | |
Performance | |
BIOS memory size | 64 Mbit |
BIOS type | EEPROM |
Audio output channels | 7.1 channels |
Processor socket | BGA 1356 |
Compatible operating systems | Windows 10, 64-bit* |
Trusted Platform Module (TPM) | |
Supported RAID configuration | 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) |
Consumer infrared Rx sensor | |
EAN | 5032037088473 |
Warranty | 1 year |
Get ready for truly immersive entertainment. The Intel® NUC Kit NUC7i3BNH is built with a dual-core 7th Generation Intel® Core™ i3 processor. So whether you’re streaming the latest movie or need to finish that last minute presentation, you’ve got the performance to handle it with ease. With dual-array front microphones, you can take full advantage of Windows® 10 and Cortana. Now you’ve got your own digital personal assistant to keep you on time to appointments, help you send email, or find that new recipe. Intel® NUC Kit NUC7i3BNH also supports 4K at 60 Hz via an HDMI 2.0 port. A multi-color LED ring lets you personalize your NUC with the look you want. Also features a 2.5" drive bay for an SSD or HDD with up to 2 TB of storage.
