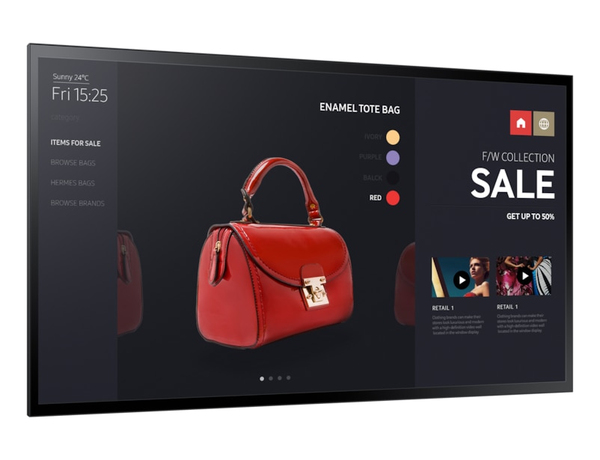

SAMSUNG PM55F-BC 55inch Wide 16:9 All-in-one Capacitive Touch Direct-LED 500nits Speakers black DVI-I (VGA) USB (HID) 2xHDMI RS
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Display | |
Pixel pitch | 0.63 x 0.63 mm |
Contrast ratio (typical) | 4000:1 |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Display diagonal | 139.7 cm (55") |
Display brightness | 400 cd/m² |
Response time | 6 ms |
Display resolution | 1920 x 1080 pixels |
Touchscreen | ![]() |
Display technology | VA |
HD type | Full HD |

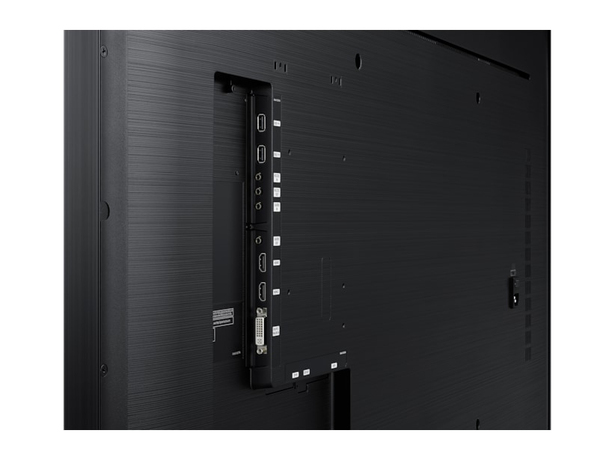

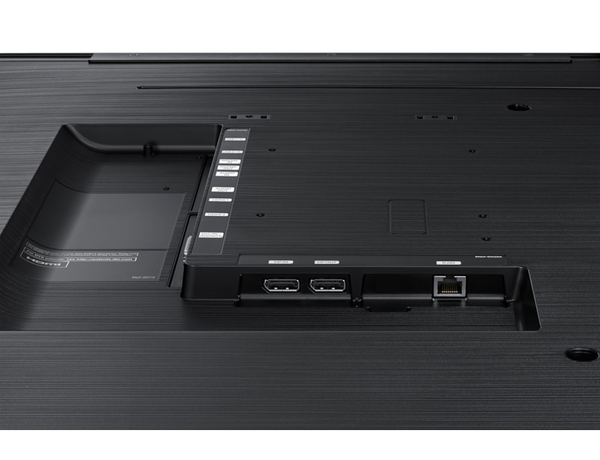

Ports & interfaces | |
Ethernet LAN | ![]() |
Ethernet LAN (RJ-45) ports | 1 |
DVI port | ![]() |
DVI-I ports quantity | 1 |
Wi-Fi | ![]() |
HDMI ports quantity | 2 |
RS-232 interface | ![]() |
DisplayPorts quantity | 1 |
DisplayPorts in | 1 |
USB ports quantity | 2 |
RS-232C | ![]() |
USB port | ![]() |
Weight & dimensions | |
Weight | 26.4 kg |
Height | 733.4 mm |
Width | 1248.4 mm |
Depth | 58.4 mm |
Energy management | |
Power consumption (typical) | 187 W |
Power consumption (standby) | 0.5 W |
Power consumption (sleep) | 0.5 W |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 80% |
Operating temperature (T-T) | 0 - 40 °C |
Packaging data | |
Package weight | 32 kg |
Package depth | 200 mm |
Package height | 863 mm |
Package width | 1375 mm |
Design | |
Product colour | Black |
Placement supported | Indoor |
Panel mounting interface | 400 x 400 mm |
Product design | Digital signage flat panel |
Bezel width (side) | 1.79 cm |
Bezel width (top) | 2.5 cm |
Bezel width (bottom) | 2.5 cm |
VESA mounting | ![]() |
EAN | 8806088600628 |
Warranty | 3 years |
Source: Icecat.biz |
Boost Engagement with Touch Displays
Samsung’s PMF-BC displays align cutting-edge visuals with capacitive touch technology for a more informative, interactive customer experience. The displays’ glare-free design deters light interference, while an all-inclusive composition drives performance at reduced operational burden.
Versatile Touch-Driven Interaction
The PMF-BC displays’ user-friendly design fosters comfortable, productive digital writing. Capacitive touch technology offers 10 unique touch points while maintaining the smooth, familiar feel of pen-and-paper writing. Users also can overcome interference from dust, sunlight and other variables.
Reliable and Continuous Content Delivery
Samsung’s durable PMF-BC displays empower uninterrupted message delivery. Each PMF-BC display is designed to resist environmental factors that can impede picture clarity and utility, making them ideal for transportation hubs and other locations frequently exposed to dust, dirt and weather.
Convenient All-in-One Management
By condensing the powerful TIZEN OS, an embedded media player and capacitive touch technology into a single solution, Samsung’s PMF-BC displays deliver dynamic content without external PCs or devices. The PMF-BC’s intuitive interface further drives seamless content and application navigation.

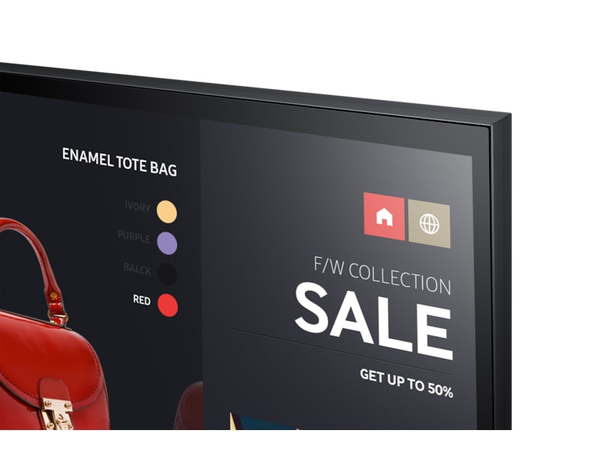

Brilliant, Glare-Free Visual Quality
The PMF-BC displays’ non-glare, glass-touch front panel presents content at consistent elevated contrast and 400nit brightness against a range of natural and ambient lighting conditions. A complementary anti-haze coating further maintains clear readability at any time or location.
Seamless, Centralized Display Control
Unlike standard displays which place the IR in hard-to-access locations, the PMF-BC displays’ centralized IR grants users more convenient and flexible control. Each PMF-BC display receives IR signals across its individual panels, allowing for fast, anywhere activation and uninterrupted management.
