No price development information for this product.
This product is end of life or currently not available.
Technical details | |
Supported memory types | DDR4 |
Product type | Processor |
Processor cache | 3072 KB |
Status | Discontinued |
Maximum resolution & refresh rate (DisplayPort) | 4096x2304@60Hz |
Maximum resolution & refresh rate (HDMI) | 4096x2304@24Hz |
Maximum resolution & refresh rate (Integrated Flat Panel) | 4096x2304@60Hz |
Launch date | Q1'17 |
Maximum graphics adapter memory | 64 GB |
Bus type units | GT/s |
Bus bandwidth | 8 |
Maximum memory | 64 GB |
Processor brand name | 7th Gen Intel Core i3 processors |
Last change | 63903513 |
Product family | 7th Generation Intel Core i3 Processors |
Processor | |

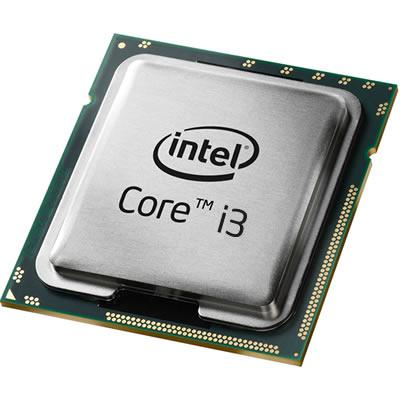

Processor model | i3-7100 |
Processor manufacturer | Intel |
Processor lithography | 14 nm |
Processor family | Intel Core i3 |
Box | |
Processor socket | LGA1151 |
Stepping | S0 |
Processor cores | 2 |
Processor code | SR35C |
System bus rate | 8 GT/s |
Processor threads | 4 |
Compatible chipsets | Intel® B150, Intel® H110, Intel® H170, Intel Q150, Intel® Q170, Intel® Z170 |
Processor operating modes | 64-bit |
Component for | PC |
Processor cache | 3 MB |
Bus type | DMI3 |
Thermal Design Power (TDP) | 51 W |
Processor codename | Kaby Lake |
Processor cache type | Smart Cache |
Processor series | Intel Core i3-7100 Desktop Series |
Processor ARK ID | 97455 |
Cooler included | |
Memory | |
ECC | |
Memory channels | Dual-channel |
Maximum internal memory supported by processor | 64 GB |
Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
Memory voltage supported by processor | 1.35 V |
Weight & dimensions | |
Processor package size | 37.5mm x 37.5mm |
Operational conditions | |
Tjunction | 100 °C |
Packaging data | |
Package type | Retail box |
Other features | |
Maximum internal memory | 64 GB |
Video decoding | |
Graphics | |
On-board graphics card model | Intel® HD Graphics 630 |
On-board graphics card | |
On-board graphics adapter base frequency | 350 MHz |
On-board graphics adapter dynamic frequency (max) | 1100 MHz |
On-board graphics adapter maximum resolution (DisplayPort) | 4096 x 2304 pixels |
On-board graphics adapter ID | 5912 |
On-board graphics adapter 4K support | |
On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel) | 4096 x 2304 pixels |
On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
On-board graphics adapter refresh rate at maximum resolution (DisplayPort) | 60 Hz |
On-board graphics adapter refresh rate at maximum resolution (HDMI) | 24 Hz |
Maximum on-board graphics adapter memory | 64 GB |
Number of displays supported (on-board graphics) | 3 |
On-board graphics adapter maximum resolution (HDMI) | 4096 x 2304 pixels |
On-board graphics adapter DirectX version | 12.0 |
On-board graphics adapter OpenGL version | 4.5 |
Processor special features | |
Intel® Identity Protection Technology (Intel® IPT) | |
Intel® Hyper Threading Technology (Intel® HT Technology) | |
Intel® Turbo Boost Technology | |
Intel® Quick Sync Video Technology | |
Intel® InTru™ 3D Technology | |
Intel® Clear Video HD Technology (Intel® CVT HD) | |
Intel® AES New Instructions (Intel® AES-NI) | |
Enhanced Intel SpeedStep Technology | |
Intel Trusted Execution Technology | |
Intel Enhanced Halt State | |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | |
Intel VT-x with Extended Page Tables (EPT) | |
Intel TSX-NI | |
Intel® Secure Key | |
Intel 64 | |
Intel Stable Image Platform Program (SIPP) | |
Intel® OS Guard | |
Intel Virtualization Technology for Directed I/O (VT-d) | |
Intel Clear Video Technology | |
Intel Software Guard Extensions (Intel SGX) | |
Intel Identity Protection Technology version | 1.00 |
Intel Secure Key Technology version | 1.00 |
Intel Virtualization Technology (VT-x) | |
Intel Stable Image Platform Program (SIPP) version | 0.00 |
Intel TSX-NI version | 0.00 |
Conflict-Free processor | |
Intel® Optane™ Memory Ready | |
Intel® Memory Protection Extensions (Intel® MPX) | |
Features | |
Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
PCI Express slots version | 3.0 |
Execute Disable Bit | |
Idle States | |
Thermal Monitoring Technologies | |
Scalability | 1S |
CPU configuration (max) | 1 |
Embedded options available | |
PCI Express configurations | 1x16,2x8,1x8+2x4 |
Thermal solution specification | PCG 2015C |
Maximum number of PCI Express lanes | 16 |
Market segment | Desktop |
EAN | 5706998525376 |
Warranty | 1 year |
The Time for a Faster, Smarter PC is Now.
Introducing a new tier of PCs, featuring even more powerful performance for seamless computing at home and on-the-go. Work untethered with amazing battery life and experience smooth streaming and brilliant HD entertainment with immersive, full-screen 4K and 360 viewing.
The Speed You Need
Equipped with rapid responsiveness, the 7th generation Intel® Core™ processor has the power and speed to keep up with your demands. Open files and programs quickly, plus seamlessly switch between applications and web pages without delay.
Immersive Entertainment
Experience ultra high-definition content with the clarity and sharpness of 4K resolution.1 Featuring 4x more pixels than full HD screens, you’ll get crisper, clearer images for an immersive viewing like never before.
Hassle Free
Today’s PCs are more hassle-free than ever – log in quickly and easily with facial recognition technology, get 0.5 second wake, and never feel weighed down with new razor-thin devices.
