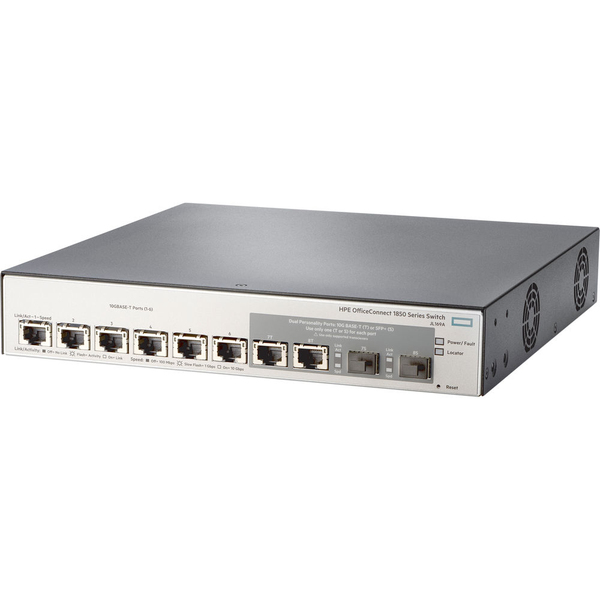

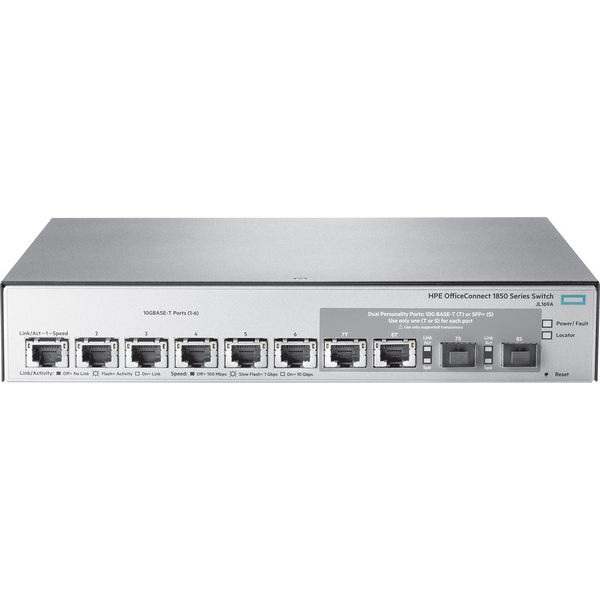

HPE OfficeConnect 1850 6XGT and 2XGT/SPF+ - Kytkin - Hallinnoitu - 6 x 1 Gigabit / 10 Gigabit Ethernet + 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ - ty

ID: JL169A#ABB
Product unavailable
This product is end of life or currently not available.

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity6
SFP+ module slots quantity2
Weight & dimensions
Weight1.74 kg
Height44 mm
Width253 mm
Depth260.7 mm
Energy management
Power consumption (typical)42.8 W
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Power supply includedcheckmark
Operational conditions
Operating relative humidity (H-H)15 - 95%
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)15 - 95%
Networking
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Flow control supportcheckmark
Port mirroringcheckmark
Link aggregationcheckmark
Broadcast storm controlcheckmark
Auto MDI/MDI-Xcheckmark
Spanning tree protocolcheckmark
VLAN supportcheckmark
10G supportcheckmark
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Data transmission
MAC address table16000 entries
Switching capacity160 Gbit/s
Jumbo frames supportcheckmark
Packet buffer memory2 MB
Latency (10-100 Mbps)6.8 µs
Latency (1 Gbps)2.9 µs
Latency (10 Gbps)6.8 µs
Throughput119 Mpps
Security
SSH/SSL supportcheckmark
IGMP snoopingcheckmark
Management features
Switch layerL2
Quality of Service (QoS) supportcheckmark
Web-based managementcheckmark
Switch typeManaged
Design
Rack mountingcheckmark
Form factor1U
Product colourGrey
Stackablecheckmark
Power over Ethernet (PoE)
Power over Ethernet (PoE)cross
Performance
Processor frequency600 MHz
Internal memory128 MB
Memory typeDDR3-SDRAM
Built-in processorcheckmark
EAN889296847366
Warranty1 year
Source: Icecat.biz

The HPE OfficeConnect 1850 Switch Series offers choice and flexibility for smaller organizations that require ease of use and affordable high performance connectivity. The series consists of four basic smart-managed, fixed configuration, Gigabit Layer 2 switches and one 10 Gigabit aggregator switch to deliver high performance 10G connectivity to the edge. They come in an easy-to-administer solution that has the latest energy-saving capabilities. These switches are plug-and-play out of the box, where network operation can be fine-tuned through a simple Web browser-based GUI, when needed.

What's new
- Five basic smart-managed fixed-configuration Layer 2 switches with 10-Gigabit 10GBASE-T ports for affordable high performance connectivity.
- Non-PoE and PoE+ 24- and 48-port models for deployment flexibility.
- 8-port 10GBASE-T aggregation switch with 2 SFP+ dual personality ports.
- Intuitive Web management interface for easy switch configuration.
- Limited Lifetime Warranty.

Features

Performance and Reliability
- The HPE OfficeConnect 1850 Switch Series offers choice and flexibility with a complete portfolio of Gigabit and 10 Gigabit basic smart managed Layer 2 switches.
- The series consists of four Gigabit switches including PoE+ and non-PoE models, each with 10GBASE-T uplinks and one 8-port 10G aggregator switch with eight 10GBASE-T and two dual personality SPF+ ports that delivers 10G connectivity to the edge switches.
- Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) provides redundant links while preventing network loops.

Easy-to-Use, Simple to Deploy and Manage
- The HPE OfficeConnect 1850 Switch Series features an intuitive Web management interface with an enhanced navigation pane for easy management of devices by non-technical users. It is ideal for organizations that require simplicity.
- Customizable features include VLANs, Spanning Tree, Link aggregation, and IGMP Snooping. All models include Rapid Spanning Tree Protocol (RSTP) and DSCP Quality of Service (QoS) policies.
- These switches support flexible installation options, including mounting on walls, under tables or on desk tops.

Energy Efficiency and Lower TCO
- The HPE OfficeConnect 1850 Switch Series include the latest energy-savings capabilities, including Energy Efficient Ethernet (IEEE), idle-port power down and PoE Port Scheduler.
- All switches are covered by a Limited Lifetime Warranty.

Quality of Service (QoS)
- The HPE OfficeConnect 1850 Switch Series traffic prioritization provides time sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or IEEE 802.1p classification. Packets are mapped to eight hardware queues for more effective throughput.
- Broadcast control allows limiting of broadcast traffic rate, to reduce unwanted network broadcast traffic.
- IEEE 802.11p/Q delivers data to devices based on the priority and type of traffic.
