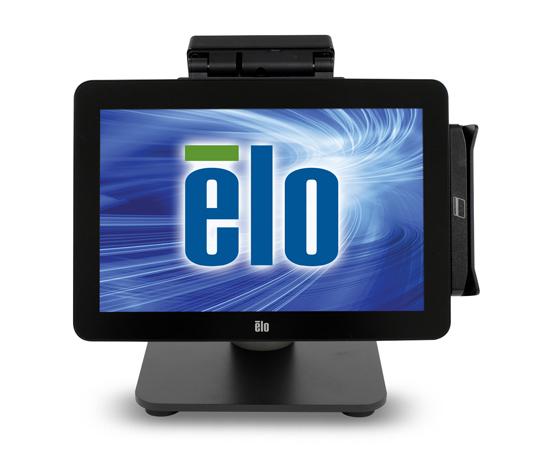

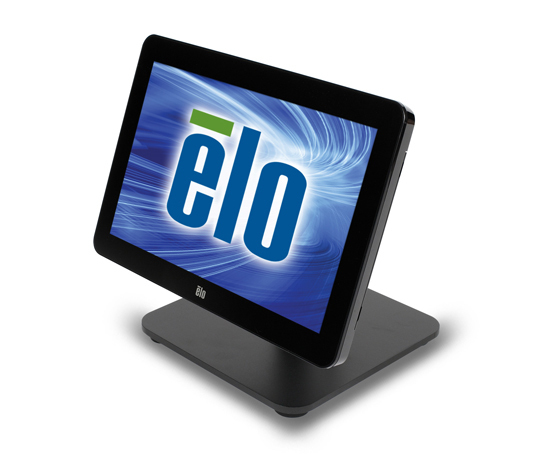

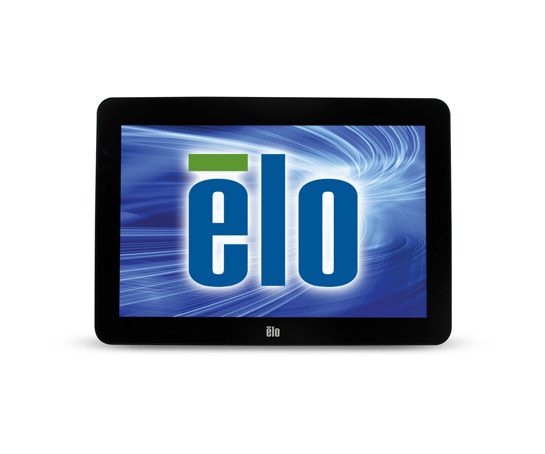

1002L, 10", PCAP, Black

Manufacturer: ELO TOUCH
ID: E045337
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Display
Contrast ratio (typical)700:1
Horizontal scan range31.5 - 60 kHz
Viewing angle, horizontal170°
Viewing angle, vertical170°
Aspect ratio16:10
Display viewable area (HxV)218 x 136.6 mm
Display diagonal25.6 cm (10.1")
Response time25 ms
Display resolution1280 x 800 pixels
Supported graphics resolutions1024 x 768 (XGA),1280 x 1024 (SXGA),640 x 480 (VGA),800 x 600 (SVGA)
Glossy displaycheckmark
LED backlightcheckmark
Backlight typeLED
Display typeLCD
Display number of colours262144 colors
Ports & interfaces
HDMI ports quantity1
USB requiredcheckmark
HDMIcheckmark
Weight & dimensions
Weight800 g
Height177.3 mm
Width254.6 mm
Depth29 mm
Energy management
Power consumption (typical)5.6 W
Power supply typeAC/DC
Power consumption (off)0.2 W
Power consumption (standby)0.4 W
AC input frequency50 - 60 Hz
AC input voltage100-240 V
Operational conditions
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)10 - 95%
Packaging data
Package weight2 kg
Package depth139 mm
Package height238 mm
Package width310 mm
Ergonomics
Panel mounting interface75 x 75 mm
VESA mountingcheckmark
Packaging content
Cables includedHDMI,VGA
Design
Product colourBlack
Performance
Mean time between failures (MTBF)50000 h
Built-in microphonecross
RMS rated power4 W
Built-in speaker(s)checkmark
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Touchscreen technologyProjected capacitive system
Built-in cameracross
Touchscreen typeTabletop
Number of speakers2
EAN5656565656562
Warranty3 years
Source: Icecat.biz
The Elo M-Series 1002L widescreen LED touch monitor is a modern and stylish interactive solution for customer engagement at the point of sale. The sleek wide aspect ratio touchscreen features edge-to-edge glass with display area real estate to showcase engaging, memorable, and rewarding content. For environments where space is scarce, the 1002L is ideal as a POS terminal customer-facing display. Built to withstand the rigors of continuous public use, the 1002L is well suited for high use retail venues. The sleek, thin look pairs well with any modern POS system

The multiple mount and stand options ensure installation flexibility and accommodate tabletop use as well as wall- and pole-mount with standard VESA mount patterns.

Optional color coordinated retail accessories include a Magnetic Stripe Reader (MSR), barcode scanner and Near Field Communication (NFC) adapter for mobile payments and increased compatibility with the latest point of sale applications. The accessories are easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

The 1002L is offered with IntelliTouch Pro projected capacitive (PACP) touch technology in a zero-bezel design with ten touch interaction and an anti-glare surface. For applications not requiring interactivity, a non-touch 1002L model is available.

- Sleek and modern widescreen design with "built for touch" reliability.
- Energy savings using LED technology.
- 10 touch projected capacitive (PCAP) touchscreen.
- Edge-to-edge glass display with anti-glare for retail interiors.
- Installation flexibility with mounting in portrait, landscape and table-top orientation.
- Configurable with integrated retail accessories including Magnetic Stripe reader (MSR), Barcode scanner and NFC for mobile payments.
- Typical power consumption: 5.6W; power through USB option.
