Specifications
Description
Store availability
Delivery
Price development
| Audio | |
| Voice codecs | G.711alaw,G.711ulaw,G.722,G.726,MP2L2 |
| Audio formats supported | PCM |
| Ports & interfaces | |
| Headphone outputs | 1 |
| Microphone in |  |
| BNC output ports | 1 |
| Lens system | |
| Digital zoom | 16x |
| Optical zoom | 23x |
| Zoom capability | |
| Focus | Motorized/Manual |
| Focal length range | 5.9 - 135.7 mm |
| Auto focus | |
| Closest focusing distance | 0.01 m |
| Minimum aperture number | 3.4 |
| Maximum aperture number | 1.5 |
| Weight & dimensions | |
| Weight | 10 kg |
| Height | 330 mm |
| Diameter | 26.2 cm |
| Energy management | |
| Power source type | AC |
| AC input voltage | 24 V |
| Power consumption (max) | 60 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -40 - 65 °C |
| Networking | |
| Supported network protocols | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Ethernet LAN |  |
| Number of users | 32 user(s) |
| Networking standards | IEEE 802.1x |
| Bluetooth | |
| Wi-Fi | |
| Quality of Service (QoS) support | |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Video compression formats | H.264,M-JPEG,MPEG4 |
| Noise reduction | |
| Supported graphics resolutions | 176 x 120,176 x 144,352 x 240,704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080) |
| Total megapixels | 2 MP |
| Back Light Compensation (BLC) | |
| Privacy masking | |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | |
| Noise reduction technology | 3D noise reduction |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | |
| Maximum memory card size | 128 GB |
| Built-in HDD | |
| Security | |
| Intelligent Video Surveillance (IVS) system features | Face detection, Intrusion |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.9 mm (1 / 1.9") |
| Progressive scan | |
| Number of sensors | 1 |
| Management features | |
| Behavior analysis | Intrusion detection, Line crossing detection |
| Camera | |
| White balance | ATW, Auto, Daylight, Indoor, Manual, Outdoor, Sodium lamp |
| Camera shutter speed | 1 - 1/30000 s |
| Minimum illumination | 0.0002 lx |
| Tilt angle range | -20 - 90° |
| Pan range | 0 - 360° |
| Pan speed | 300 °/sec |
| Tilt speed | 240 °/sec |
| Field of view (FOV) angle | 59.8° |
| Pan preset speed | 540 °/sec |
| Packaging content | |
| Number of cameras | 1 |
| Design | |
| Form factor | Dome |
| Product colour | Silver |
| Mounting type | Ceiling |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Performance | |
| Type | CCTV security camera |
| Certification | FCC, CE, UL, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1 |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | |
| Day/night mode | |
| Alarm input/output | |
| Infrared (IR) cut-off filter | |
| EAN | 6954273621995 |
| Warranty | 3 years |
| Source: Icecat.biz | |

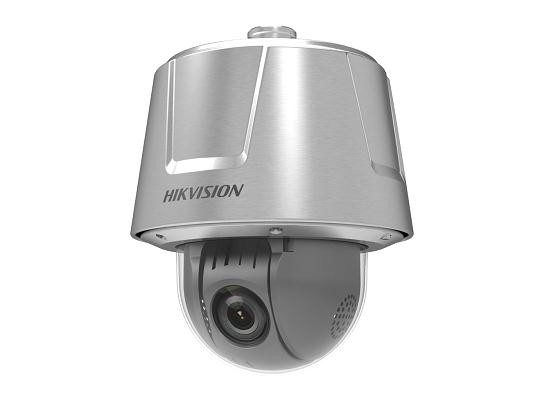

Hikvision Anti-Corrosion series DS-2DT6223-AELY smart PTZ Cameras is able to effectively avoid acidic and neutral salt fog corrosion. DS-2DT6223-AELY is also able to capture high quality colored images in dim light environment with its low illumination level down to 0.002 lux (color). The embedded 1/1.9" progressive scan CMOS chip makes the true WDR (120dB) and 2.0 MP real-time resolution possible. With the 23× optical zoom day/night lens, the camera offers more details over an expansive area.
The Anti-Corrosion PTZ camera features a wide range of smart functions, including face detection, intrusion detection, line crossing detection and audio exception, benefitting users with a great improvement on security efficiency. These features, combined with smart tracking, enable the camera to detect any progressively moving object and follow it within the camera’s area of coverage without fault. Smart Defog and EIS (Electronic Image Stabilization) are further supported to improve the image quality in challenging conditions
The Anti-Corrosion PTZ camera features a wide range of smart functions, including face detection, intrusion detection, line crossing detection and audio exception, benefitting users with a great improvement on security efficiency. These features, combined with smart tracking, enable the camera to detect any progressively moving object and follow it within the camera’s area of coverage without fault. Smart Defog and EIS (Electronic Image Stabilization) are further supported to improve the image quality in challenging conditions
