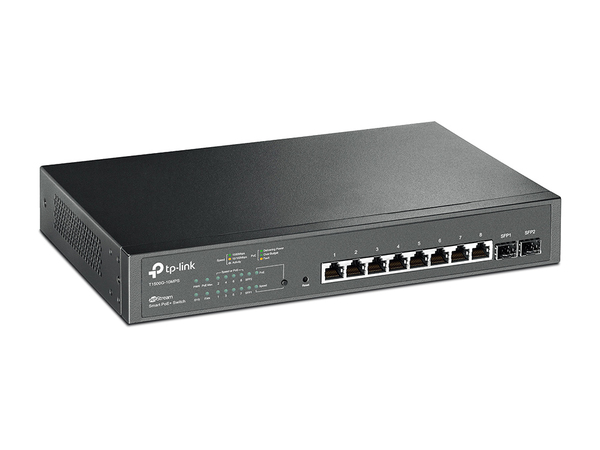

TP-LINK 8-Port Gigab. Desktop PoE Smart Switch 8 Gigabit RJ45 ports including 2 SFP ports 802.3af/at 116W PoE power supply Tag-based
Manufacturer: TP-LINK
ID: T1500G-10MPS
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces | |
Gigabit Ethernet (copper) ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity | 8 |
SFP module slots quantity | 2 |
Weight & dimensions | |
Height | 44 mm |
Width | 294 mm |
Depth | 180 mm |
Energy management | |
Power source | AC |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (max) | 136.6 W |
Power supply included | |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 5 - 90% |
Protocols | |
Management protocols | SNMP |
Networking | |
Full duplex | |
Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.2x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
Flow control support | |
Port mirroring | |
Link aggregation | |
Broadcast storm control | |
Rate limiting | |
Auto MDI/MDI-X | |
Number of VLANs | 4096 |
Spanning tree protocol | |
VLAN support | |
10G support | |
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
Cable types supported | Cat3, Cat4, Cat5, Cat5e |
Auto-negotiation | |
Data transmission | |
MAC address table | 8000 entries |
Switching capacity | 20 Gbit/s |
Jumbo frames support | |
Number of queues | 4 |
Forwarding rate | 14.9 Mpps |
Throughput | 14.9 Mpps |
Jumbo frames | 9000 |
Packaging data | |
Package depth | 250 mm |
Package height | 80 mm |
Package width | 400 mm |
Rubber feet | |
User guide | |
Rack mount kit | |
Resource CD | |
Security | |
Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
Access Control List (ACL) | |
SSH/SSL support | |
IGMP snooping | |
BPDU filtering/protection | |
IP-MAC-Port binding | |
Authentication | Port-based authentication |
Management features | |
MIB support | Y |
Switch layer | L2 |
Quality of Service (QoS) support | |
Web-based management | |
Switch type | Managed |
ARP inspection | |
Design | |
Certification | CE, FCC, RoHS |
Rack mounting | |
Form factor | 1U |
LED indicators | |
Product colour | Black |
Number of fans | 1 fan(s) |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | |
Power over Ethernet plus (PoE+) ports quantity | 8 |
Total Power over Ethernet (PoE) budget | 116 W |
Performance | |
Buffer size | 512 KB |
Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8, MAC OS, NetWare, UNIX, Linux |
Firmware upgradeable | |
Multicast features | |
Multicast support | |
EAN | 6935364098858 |
Warranty | 1 year |
Source: Icecat.biz |
- Features 8 802.3af/at compliant PoE+ ports, with total PoE power budget of 116W and useful PoE power management features
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Dual Firmware Image improves reliability and up-time of your network
