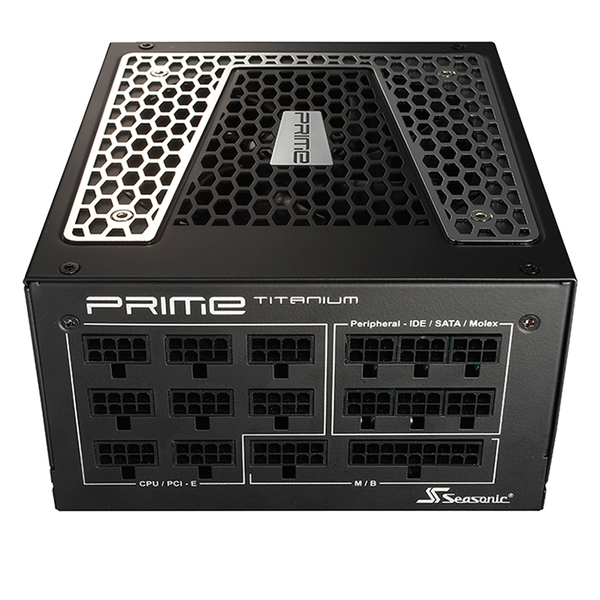

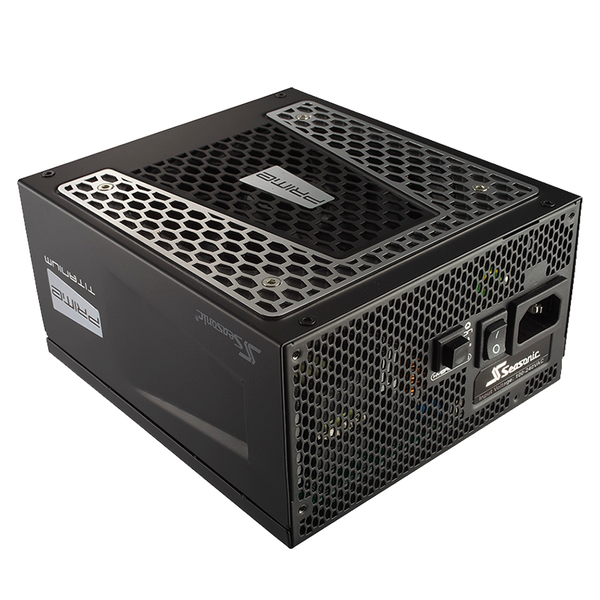

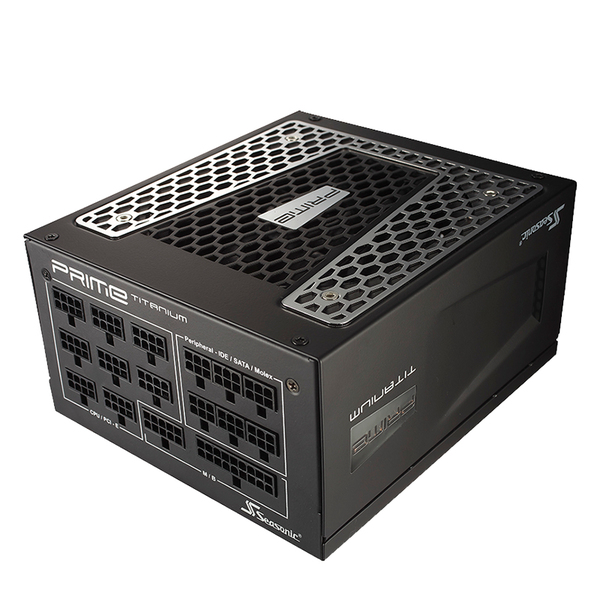

Seasonic Prime 1000 W Titanium

Manufacturer: SEA SONIC ELECTRONICS
ID: SSR-1000TD
Product unavailable
This product is end of life or currently not available.

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
Floppy disk drive connectorcheckmark
Number of SATA power connectors14
Peripheral (Molex) power connectors (4-pin)5
EPS power connector (8-pin)checkmark
CPU power connectors (8-pin)2
Cabling typeModular
Motherboard power cable length61 cm
SATA power cable length350,450 mm
CPU power cable length65 cm
Peripheral (Molex) power cable length350,450 mm
PCI Express power cable length75 cm
Weight & dimensions
Height86 mm
Width150 mm
Depth170 mm
Energy management
Input current11 - 5.5
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)125 W
Combined power (+12V)996 W
Combined power (+5V)125 W
Combined power (-12V)6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)25 A
Max output current (+12V)83 A
Max output current (+5V)25 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)3 A
AC input frequency50 - 60
AC input voltage100 - 240
Total power1000 W
Operational conditions
Operating temperature (T-T)0 - 50 °C
Certificates
CertificationcTUVus, TUV, CB, CCC, BSMI, EAC
Energy Star certifiedcheckmark
RoHS compliancecheckmark
80 PLUS certification80 PLUS Titanium
Cooling
Number of fans1 fan(s)
Cooling typeActive
Fan diameter13.5 cm
Design
Product colourBlack
Performance
Mean time between failures (MTBF)150000 h
PurposePC
Bearing technologyFDB
On/off switchcheckmark
Power supply unit (PSU) form factorATX
EAN4711173873211
Source: Icecat.biz

80 PLUS® Titanium

The PRIME Titanium Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94 % efficiency at 50 % system load.

Fluid Dynamic Fan Bearing

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

How it works

When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
The following illustration depicts the main characteristics of the FDB fans:

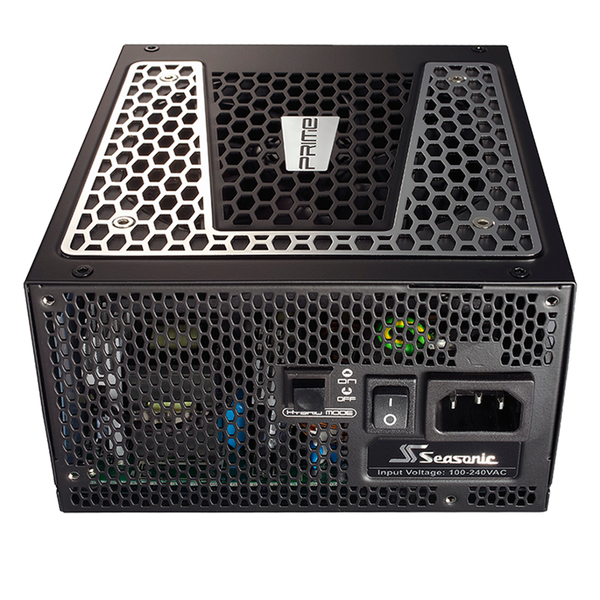

Premium Hybrid Fan Control

Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.

Power Supply Sound

The Seasonic PRIME Series is designed with very favorable level of acoustics and it uses carefully selected components and innovative circuit design to minimize sound output. Beyond our rigorous internal tests, the power supply also went through external testing with the most popular graphics cards to ensure that the sound at all loads would be kept at the lowest possible level. The chart compares the sound level of the Seasonic PRIME power supply to other ambient sounds.

Micro Tolerance Load Regulation

Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

Extended Hold-up Time (20 ms)

Improved circuit design and high-quality components have greatly increased the hold-up time measured under 100 % load, from an industry standard of 16 ms to above 20 ms. This substantial improvement means that even under unstable input current conditions the power supply will continue to output stable and precise current to ensure smooth operations.

Super Low Ripple Noise (25 mV)

Seasonic’s continued commitment to excellent analog power supply design has suppressed ripple noise to fall below 20 mV.

Cable-free Connection Design

Seasonic’s engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.
