Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Technical details | |
| Bearing technology | SSO2 |
| Weight & dimensions | |
| Weight | 531 g |
| Package weight | 1.2 kg |
| Height | 110 mm |
| Width | 95 mm |
| Depth | 95 mm |
| Package depth | 118 mm |
| Package height | 118 mm |
| Package width | 115 mm |
| Heatsink weight | 428 g |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 92 x 92 x 25 mm |
| Energy management | |
| Power consumption (typical) | 1.2 W |
| Maximum current | 0.11 A |
| Voltage | 12 V |
| Fan voltage | 12 V |
| Fan current | 0.11 A |
| Thermal Design Power (TDP) | 88 W |
| Rated voltage | 12 V |
| Fan power consumption | 1.2 W |
| Packaging data | |
| Quantity | 1 |
| Packaging content | |
| Remote control included |  |
| Mounting kit |  |
| Number of screws | 4 |
| Screws included | |
| Number of clips | 4 |
| Low-noise adaptor (LNA) | |
| CPU bracket(s) | |
| Adapter frame included | |
| Other features | |
| Power | 1.2 W |
| Number of fans supported | 1 |
| Heatsink dimensions (W x D x H) | 95 x 95 x 110 mm |
| Cooling capacity in watts (max) | 100 W |
| Thermal grease | |
| Mean time to failure (MTTF) | 150000 h |
| Design | |
| Product colour | Silver |
| Number of fans | 1 fan(s) |
| RoHS compliance | |
| Fan connector | 4-pin |
| Radiator material | Aluminium |
| Number of heat pipes | 4 |
| Illumination LED | |
| Performance | |
| Type | Cooler |
| Mean time between failures (MTBF) | 150000 h |
| Compatible processor series | Intel® Xeon® |
| Speed detection | |
| Airflow | 78.9 m³/h |
| Fan diameter | 9.2 cm |
| Supported processor sockets | LGA 1356 (Socket B2), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R) |
| Suitable location | Processor |
| Maximum spin speed | 2000 RPM |
| Minimum spin speed | 400 RPM |
| Maximum air pressure | 2.28 mmH2O |
| Noise level (high speed) | 22.8 dB |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 400 RPM |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 400 RPM |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 22.8 dB |
| Pulse-width modulation (PWM) support | |
| Rotational speed with LNA (max) | 1550 RPM |
| Airflow with LNA (max) | 62.6 m³/h |
| Noise level with LNA (max) | 16.3 dB |
| Fan's mean time to failure (MTTF) | 150000 h |
| Fan 2 rotational speed (min) | 400 RPM |
| Features | |
| Product type | CPU Cooler |
| Logistics data | |
| Products per shipping (inner) case | 12 pc(s) |
| Harmonized System (HS) code | 84733080 |
| EAN | 4716123315599 |
| Warranty | 1 year |

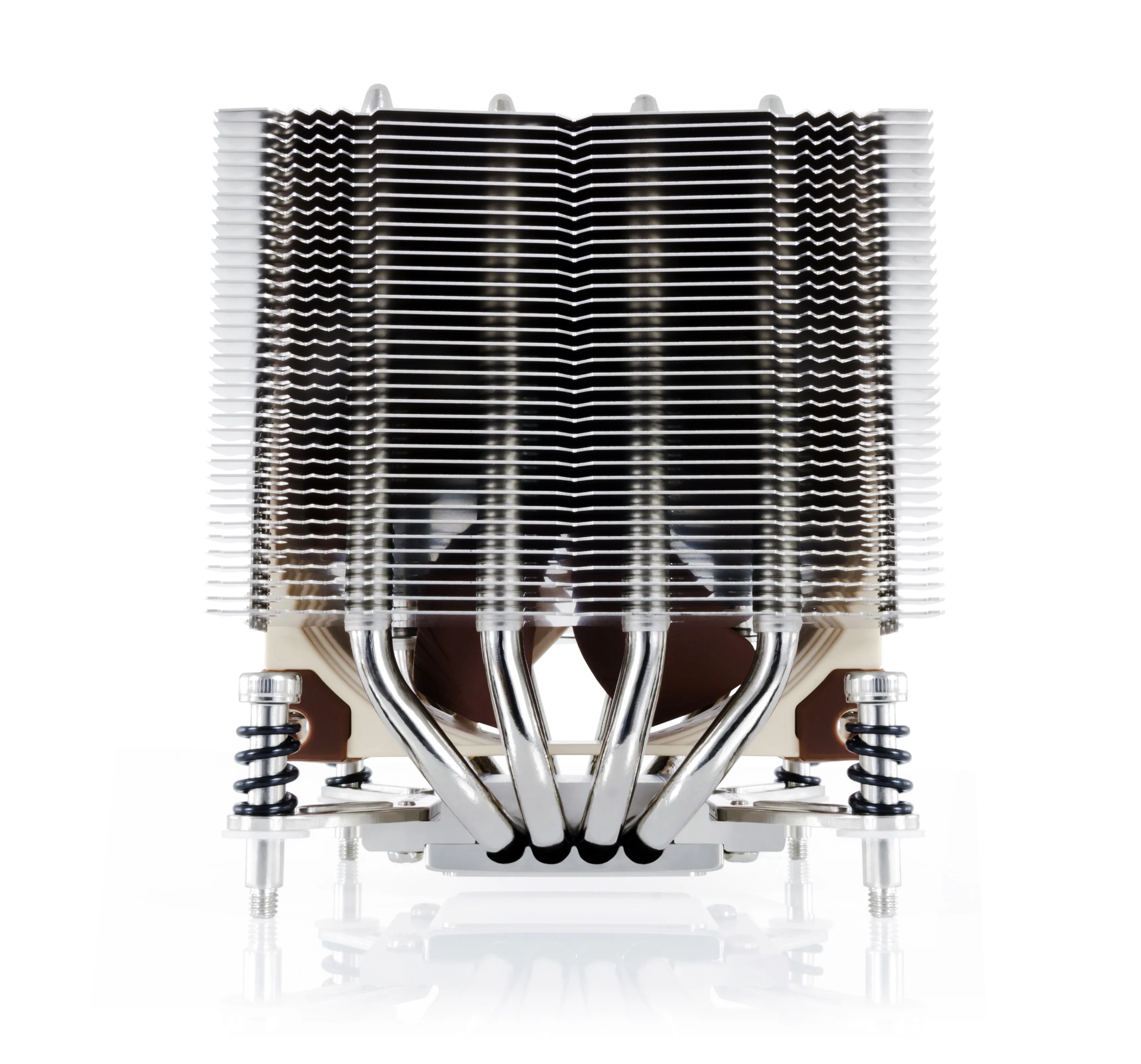

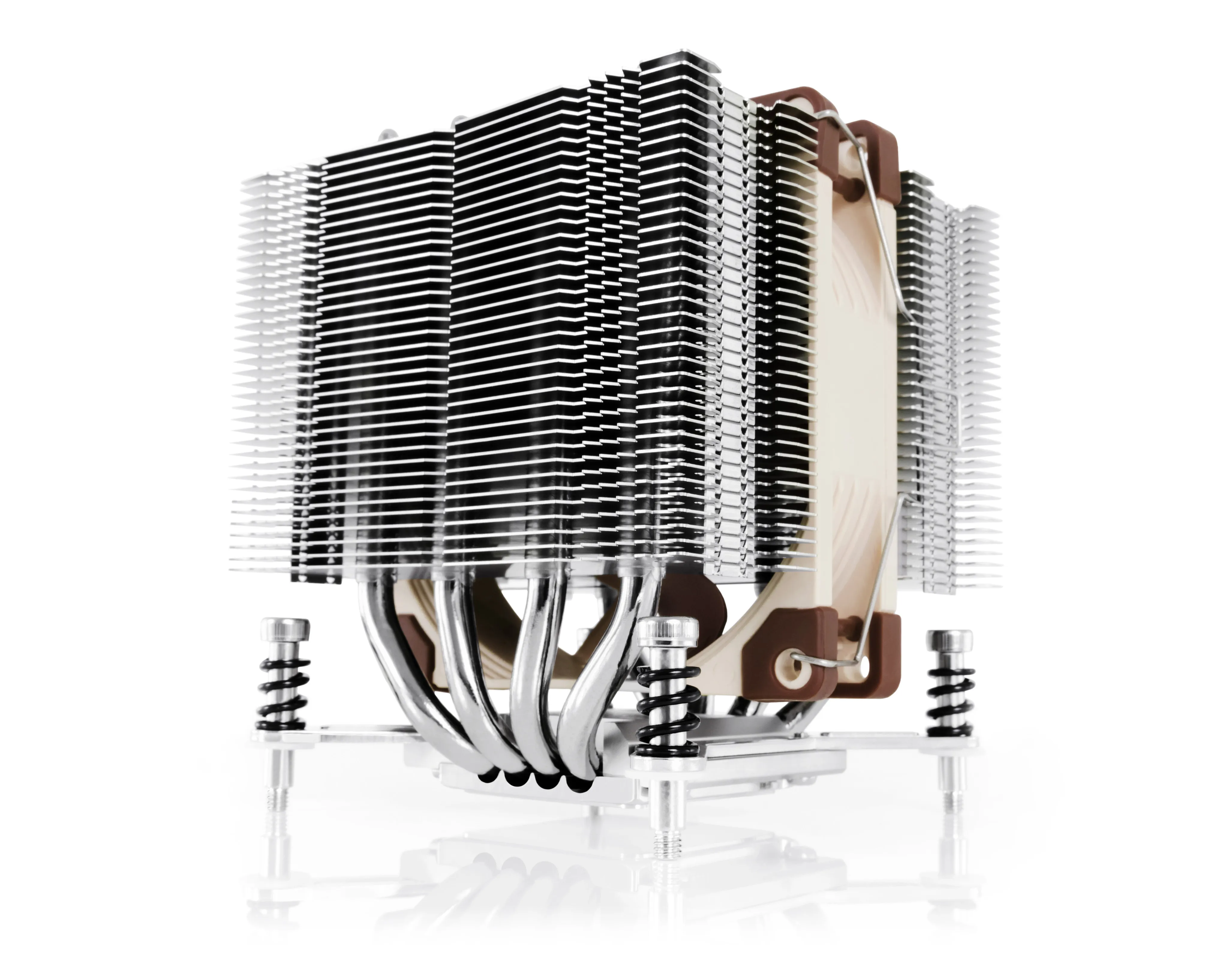

This cooling solution is specifically engineered for high-density 3U server and workstation enclosures utilizing compatible Intel Xeon processors. The design maintains a vertical height of 110 mm, ensuring necessary clearance for constrained rack systems. Heat dissipation relies on four 6 mm copper heat pipes connected to a dense array of nickel-plated aluminum fins. The compact heatsink dimensions are optimized to avoid interference with RAM modules or adjacent PCIe card slots on complex server motherboards.
Thermal performance is managed by a single 92 mm fan, which operates within a PWM-controlled speed range of 400 to 2000 RPM. At maximum operational velocity, the fan provides 78.9 m³/h of airflow and generates 2.28 mmH₂O of static pressure. The maximum reported noise output during operation is 22.8 dB. Utilizing an SSO2 bearing system, the fan provides high operational reliability, evidenced by a 150,000-hour Mean Time Between Failures rating. Mounting support is provided for key Intel Xeon sockets, including LGA2066, LGA2011, and LGA1366.
Key Features:- Compatible with Intel Xeon processors
- LGA2066, LGA2011, and LGA1366 socket support
- 92 mm fan diameter
- Four 6 mm nickel-plated copper heat pipes
- Fan speed adjustable from 400 to 2000 RPM
- Maximum airflow of 46.44 cfm
- Maximum noise output of 22.8 dB
- SSO2 self-stabilizing oil-pressure bearing
- 150,000 hours mean time between failures
- Dimensions: 110 mm high, 95 mm wide, 95 mm deep
