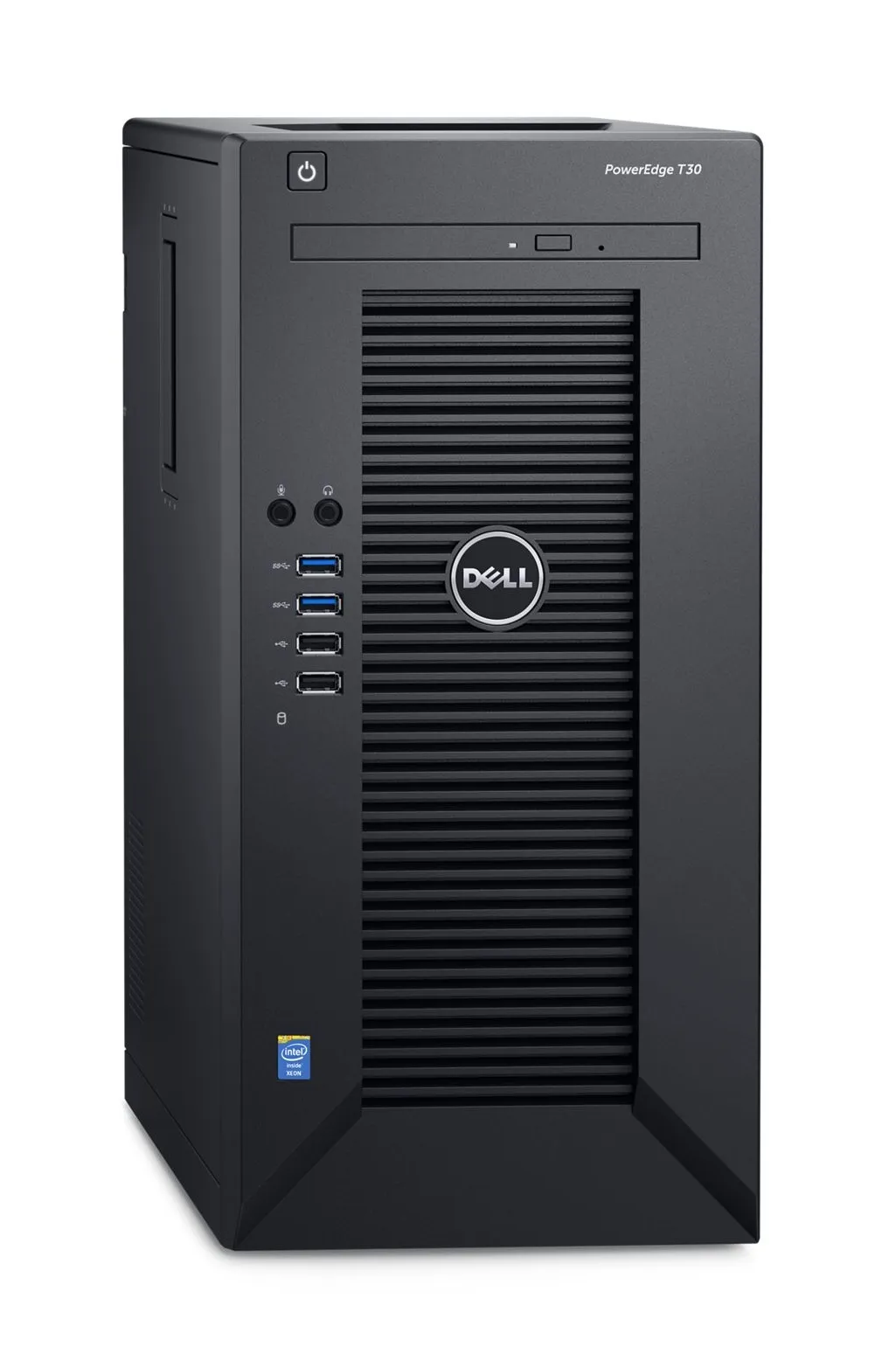

T30 E3-1225v5 8GB 1TB 1Y NBD

Manufacturer: DELL
ID: 30-0265
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Technical details
Number of 3.5" bays4
Number of 2.5" bays2
Processor
Processor modelE3-1225V5
Motherboard chipsetIntel C236
Number of processors installed1
Processor manufacturerIntel
Processor lithography14 nm
Processor familyIntel Xeon
Processor socketLGA 1151
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Processor cores4
System bus rate8 GT/s
Processor threads4
Processor operating modes64-bit
Processor boost frequency3.7 GHz
Processor cache8 MB
Execute Disable Bitcheckmark
Idle Statescheckmark
Thermal Monitoring Technologiescheckmark
Scalability1S
Embedded options availablecheckmark
Bus typeDMI3
Graphics & IMC lithography14 nm
PCI Express configurations1x16, 1x8+2x4, 2x8
Processor frequency3.3 GHz
Thermal Design Power (TDP)80 W
Processor codenameSkylake
Maximum number of PCI Express lanes16
Processor cache typeSmart Cache
Processor seriesIntel Xeon E3-1200 v5
Maximum internal memory supported by processor64 GB
Memory types supported by processorDDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor1333,1600,1866,2133 MHz
Memory bandwidth supported by processor (max)34.1 GB/s
Memory channels supported by processorDual
ECC supported by processorcheckmark
Memory voltage supported by processor1.35 V
Processor package size37.5 x 37.5 mm
Conflict-Free processorcheckmark
Memory
Internal memory typeDDR4-SDRAM
Memory slots4
Maximum internal memory64 GB
ECCcheckmark
Memory clock speed2133 MHz
Internal memory8 GB
Ports & interfaces
USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Weight & dimensions
Height360 mm
Width175 mm
Depth435 mm
Energy management
Power supply290 W
Redundant power supply (RPS) supportcross
Operational conditions
Operating altitude0 - 3048 m
Operating relative humidity (H-H)10 - 80%
Storage temperature (T-T)-40 - 65 °C
Operating temperature (T-T)5 - 35 °C
Storage relative humidity (H-H)5 - 95%
Non-operating altitude0 - 35000 m
Networking
Cabling technology10/100/1000Base-T(X)
Ethernet LANcheckmark
LAN controllerIntel® I217-LM
Ethernet interface typeGigabit Ethernet
Storage
HDD interfaceSATA
Optical drive typeNo
HDD size3.5"
Internal drive bays4
Total storage capacity1 TB
Number of HDDs installed1
Number of HDDs supported6
Supported HDD sizes2.5,3.5"
RAID supportcheckmark
Supported storage drive interfacesSerial ATA II, Serial ATA III
Operating system/software
Compatible operating systems- Microsoft Windows Server 2012; 2012 R2; 2016
- Red Hat Enterprise Linux
- Ubuntu Server 14.04/16.04
Operating system installedcross
Expansion slots
PCI slots1
PCI Express slots version3.0
PCI Express x4 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots2
Other features
Dell E-Value CodePET3002
Design
Chassis typeMini Tower
Graphics
On-board graphics card modelIntel® HD Graphics P530
On-board graphics cardcheckmark
On-board graphics card base frequency400 MHz
On-board graphics card dynamic frequency (max)1150 MHz
On-board graphics card ID0x191D
Maximum on-board graphics card memory1.7 GB
Number of displays supported (on-board graphics)3
On-board graphics card DirectX version12.0
On-board graphics card OpenGL version4.4
On-board graphics card familycheckmark
Processor special features
Intel® Hyper Threading Technology (Intel® HT Technology)cross
Intel® Turbo Boost Technology2.0
Intel® Quick Sync Video Technologycheckmark
Intel® InTru™ 3D Technologycheckmark
Intel® Wireless Display (Intel® WiDi)checkmark
Intel® Clear Video HD Technology (Intel® CVT HD)checkmark
Intel® Insider™checkmark
Intel® Smart Cachecheckmark
Intel® AES New Instructions (Intel® AES-NI)checkmark
Enhanced Intel SpeedStep Technologycheckmark
Intel Trusted Execution Technologycheckmark
CPU configuration (max)1
Intel Enhanced Halt Statecheckmark
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)checkmark
Intel VT-x with Extended Page Tables (EPT)checkmark
Intel TSX-NIcheckmark
Intel® Secure Keycheckmark
Intel 64checkmark
Intel® OS Guardcheckmark
Intel Virtualization Technology for Directed I/O (VT-d)checkmark
Intel Clear Video Technologycheckmark
Intel Software Guard Extensions (Intel SGX)checkmark
Intel Secure Key Technology version1.00
Intel Virtualization Technology (VT-x)checkmark
Intel TSX-NI version1.00
Processor ARK ID88168
EAN5397063930265
Warranty1 year
Source: Icecat.biz

Get organized
By storing and sharing information on a server, the PowerEdge T30 helps you improve access to information, simplify processes and get more done in less time. Overcome the complexity of data and applications and get organized on a central T30 server:

- Eliminate misplaced and lost data, images and videos due to “sneaker-net” file sharing. Users can share files and collaborate with central file storage to eliminate the headaches of having multiple copies and versions of files spread out among users.
- Consolidate data, images and videos stored on multiple media and media types in multiple locations. With the storage capacity of a server, you can centrally store user data and organize your stacks of DVDs, USB drives and external hard drives.

Enhance productivity
The PowerEdge T30 server packs large internal storage capacity and capable performance into a mini-tower chassis designed to deliver efficient and worry-free operation. With the T30, data and applications from multiple desktops, workstations and mobile devices can be consolidated onto a single server to boost collaboration and productivity.

Depending on your needs, you can take advantage of the processing power and storage density of the T30 to attain greater efficiency and productivity for your home or office.

- Save time when moving or copying files between locations. A server offers faster data transfers compared to external storage, cloud storage or email.
- Attain better business-transaction response times.

Compact and affordable design
With its compact size and low sound levels, the T30 easily installs in your small office/home office environment and operates non-disruptively.

- Unobtrusive home- and office-level acoustics: The small form factor and deskside acoustics allow you to install it virtually anywhere.
- Reduce storage and software costs: Help reduce expenses by loading your data onto the T30 and letting users share applications, avoiding the extra costs of additional external storage devices, cloud storage space and copies of software.

Secure and manageable
With or without an IT staff, the T30 makes it easy to secure your data and files with software RAID and optional backup restore solutions.

Backup and restore: Easily implement automatic data backup with Microsoft Windows Server.
Easy management: Update software applications in one place instead of on multiple PCs to simplify tasks and save time.

Control your destiny
Move your business to the next level with built-in expandability for growth. The PowerEdge T30 can help you:

- Easily attach additional devices with up to 10 external USB ( six USB 3.0) ports
- Expand flexibly with four PCI/PCIe slots that allow you to grow at your own pace
- Consolidate data and media files with six internal hard drive bays supporting large storage capacity
- Drive applications and media quickly with your choice of a powerful Intel® multi-core processor
- Support large memory capacity with up to four DDR4 DIMMs to experience enhanced application response times and crisp video performance
