No price development information for this product.
This product is end of life or currently not available.
Ports & interfaces | |
Installed SFP modules quantity | 4 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Weight & dimensions | |
Weight | 3.31 kg |
Height | 43.9 mm |
Width | 442.5 mm |
Depth | 246.1 mm |
Energy management | |
Power consumption (typical) | 23.3 W |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (max) | 32.2 W |
Power supply included | |
Operational conditions | |
Operating relative humidity (H-H) | 15 - 95% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 15 - 95% |
Networking | |
Full duplex | |
Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
Flow control support | |
Port mirroring | |
Rate limiting | |
Auto MDI/MDI-X | |
Spanning tree protocol | |
VLAN support | |
10G support | |
Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
Auto-sensing | |
Data transmission | |
MAC address table | 16000 entries |
Switching capacity | 104 Gbit/s |
Jumbo frames support | |
Packet buffer memory | 1.5 MB |
Latency (10-100 Mbps) | 7 µs |
Latency (1 Gbps) | 2 µs |
Throughput | 77.3 Mpps |
Security | |
Access Control List (ACL) | |
SSH/SSL support | |
IGMP snooping | |
Management features | |
Switch layer | L3 |
Quality of Service (QoS) support | |
Web-based management | |
Switch type | Managed |
Design | |
Rack mounting | |
Form factor | 1U |
Product colour | Gray |
Stackable | |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | |
Performance | |
Processor frequency | 400 MHz |
Internal memory | 256 MB |
Processor model | ARM Cortex-A9 |
Flash memory | 64 MB |
Memory type | SDRAM |
Built-in processor | |
EAN | 5706998562746 |
Warranty | 1 year |
Source: Icecat.biz |

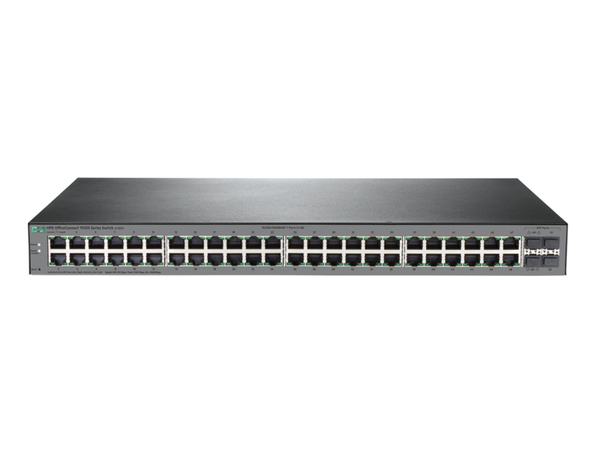

The HPE OfficeConnect 1920S Switch Series, is designed for small businesses that require enhanced performance to support bandwidth-demanding applications. They are ideal for environments that require advanced features for granular control and where smart-managed flexibility is a must for easy network configuration and management. The switches are advanced smart-managed fixed configuration Gigabit switches that are optimized for small business price/performance. They offer 8-, 24- and 48-port configurations, choice of PoE+ and non-PoE+ models; some include SFP slots for fiber connectivity.
What's new
- Six new advanced smart managed fixed-configuration lite Layer 3 Gigabit switches for affordable high-performance connectivity.
- Non-PoE and PoE+ 8-, 24- and 48-port models for deployment flexibility.
- Simple and consistent Web interface for easy switch configuration.
- Limited Lifetime Warranty
Features
Simplifies Network Deployment and Management for Small Organizations
- The HPE OfficeConnect 1920S Switch Series features easy-to-use, out of the box, plug-and-play deployment.
- The series offers a complete portfolio of choices for increased small business flexibility. It consists of six rack-mountable models including 8G-, 24G- and 48G-port with and without PoE+. The 24G- and 48G-port PoE+ models offer SPF fiber connectivity.
- These smart-managed switches use an intuitive Web management interface, to simplify deployment and management while offering granular control of key features.
Keeps Your Business Protected with Enhanced Security
- The HPE OfficeConnect 1920S Switch Series supports Energy Efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
- Enhanced security features such as Access Control List, IEEE 802.1x and VLANs guard your network from unwanted or unauthorized access.
- Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection and supports secure http (https).
Delivers Better Performance at a Lower Total Cost of Ownership
- The HPE OfficeConnect 1920S Switch Series delivers advanced functionality in smart-managed switches, including Layer 3 static routes, SFP ports, rate limiting, link aggregation and IGMP.
- The switch series includes PoE+ options to power IP devices without the cost of additional cabling.
- Green features like port shutdown and Energy Efficient Ethernet compliance for greater energy-efficiency.
- The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and business hours thereafter.
