Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
WAN connection | Ethernet (RJ-45) |
USB connector type | USB Type-A |
USB 2.0 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 2 |
Weight & dimensions | |
Weight | 320 g |
Height | 95 mm |
Width | 155 mm |
Depth | 50 mm |
Energy management | |
Power over Ethernet (PoE) | ![]() |
AC input frequency | 47-63 Hz |
AC input voltage | 90 - 265 V |
Power consumption (max) | 7.5 W |
Operational conditions | |
Operating relative humidity (H-H) | 5 - 95% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Packaging data | |
Package weight | 510 g |
Package depth | 159 mm |
Package height | 78 mm |
Package width | 224 mm |
Antenna | |
Antenna type | Internal |
Antennas quantity | 2 |
Antenna features | Integrated antenna |
Design | |
LED indicators | Power, Status |
Product colour | White |
Reset button | ![]() |
Placement | Table, Wall |
Features | |
Maximum data transfer rate | 1000 Mbit/s |
Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
Spread spectrum method | DSSS, OFDM |
Networking standards | IEEE 802.11ac |
Auto MDI/MDI-X | ![]() |
Transmitting power | 21 dBmW |
2.4 GHz | ![]() |
5 GHz | ![]() |
Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
Maximum data transfer rate (5 GHz) | 867 Mbit/s |
Logistics data | |
Harmonized System (HS) code | 85176990 |
EAN | 0190017107769 |
Warranty | 1 year |
Source: Icecat.biz |

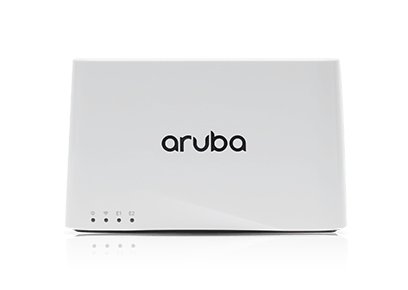

This compact, cost-effective remote access point is software configurable to operate in either 1x1 dual radio mode, or 2x2 single radio mode.
Managed by the Aruba Mobility Controller, the 203R supports centralized configuration, data encryption, policy enforcement and network services. It extends corporate resources to remote locations by establishing site-to-site VPN tunnels to the data center.
It offers a variety of enterprise-class features which gives remote workers the same high-quality Wi-Fi experience they get at corporate headquarters.
Get a big performance advantage
Patented ClientMatch™ technology improves performance and eliminates sticky client behavior while roaming.
Protect service quality over the air
AppRF technology enables prioritization and policy enforcement for business-critical enterprise apps like Microsoft Lync.
You have the freedom to choose
The RAP-203R can be deployed as a wall-mounted hospitality AP or converted to a desk mounted remote AP.
