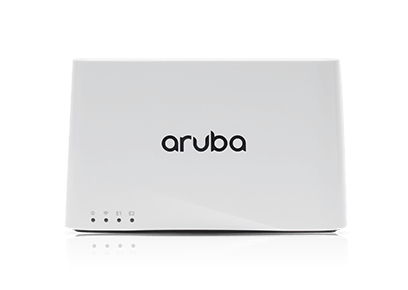

Aruba AP-203RP (RW)

ID: JY720A
Product unavailable
This product is end of life or currently not available.

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
WAN connectionEthernet (RJ-45)
USB connector typeUSB Type-A
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports2
Weight & dimensions
Weight320 g
Height95 mm
Width155 mm
Depth50 mm
Energy management
Power over Ethernet (PoE)checkmark
AC input frequency47-63 Hz
AC input voltage90 - 265 V
Power consumption (max)7.5 W
Operational conditions
Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Packaging data
Package weight510 g
Package depth159 mm
Package height78 mm
Package width224 mm
Antenna
Antenna typeInternal
Antennas quantity2
Antenna featuresIntegrated antenna
Design
LED indicatorsPower, Status
Product colourWhite
Reset buttoncheckmark
PlacementTable, Wall
Features
Maximum data transfer rate1000 Mbit/s
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Spread spectrum methodDSSS, OFDM
Networking standardsIEEE 802.11ac
Auto MDI/MDI-Xcheckmark
Transmitting power21 dBmW
2.4 GHzcheckmark
5 GHzcheckmark
Maximum data transfer rate (2.4 GHz)400 Mbit/s
Maximum data transfer rate (5 GHz)867 Mbit/s
Logistics data
Harmonized System (HS) code85176990
EAN0190017107769
Warranty1 year
Source: Icecat.biz

This compact, cost-effective remote access point is software configurable to operate in either 1x1 dual radio mode, or 2x2 single radio mode.

Managed by the Aruba Mobility Controller, the 203R supports centralized configuration, data encryption, policy enforcement and network services. It extends corporate resources to remote locations by establishing site-to-site VPN tunnels to the data center.

It offers a variety of enterprise-class features which gives remote workers the same high-quality Wi-Fi experience they get at corporate headquarters.

Get a big performance advantage
Patented ClientMatch™ technology improves performance and eliminates sticky client behavior while roaming.

Protect service quality over the air
AppRF technology enables prioritization and policy enforcement for business-critical enterprise apps like Microsoft Lync.

You have the freedom to choose
The RAP-203R can be deployed as a wall-mounted hospitality AP or converted to a desk mounted remote AP.
