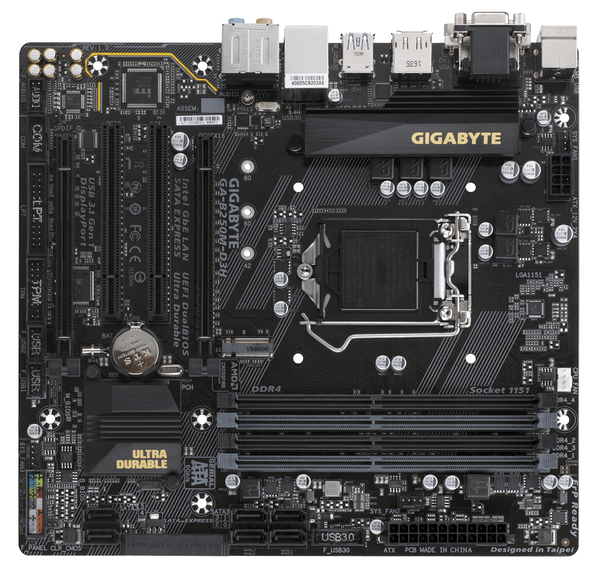

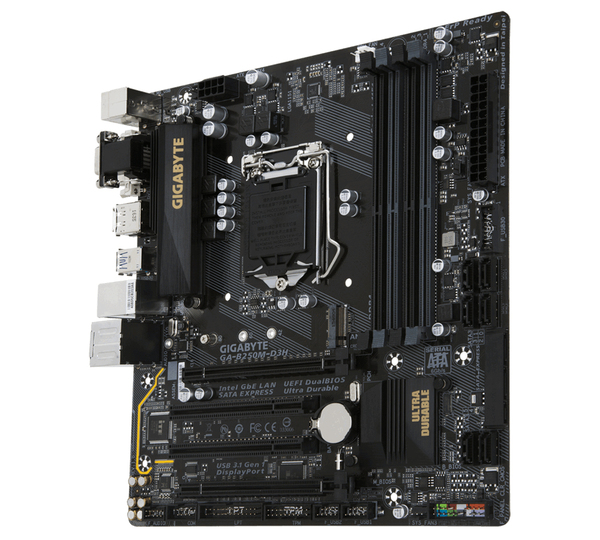

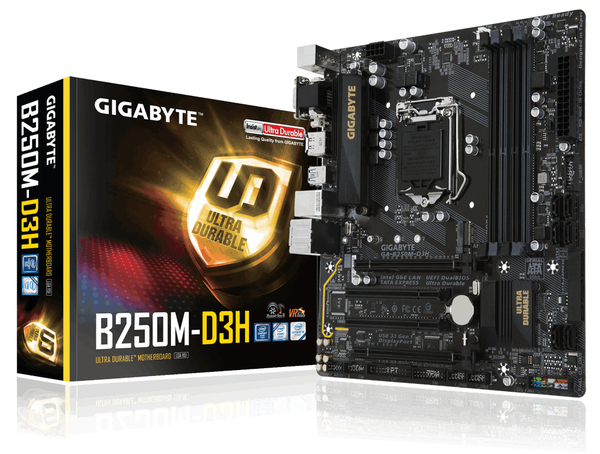

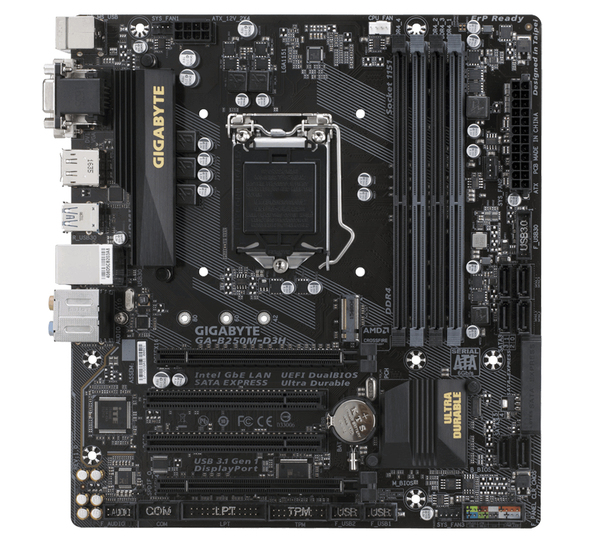

Gigabyte GA-B250M-D3H Mini-ATX - motherboard

Manufacturer: GIGABYTE
ID: GA-B250M-D3H
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Processor
Processor manufacturerIntel
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Processor socketLGA 1151
Intel Core i3/i5/i7/i9 seriesi3-7xxx,i3-xxx,i5-xxx,i7-xxx
Memory
Maximum internal memory64 GB
Non-ECCcheckmark
Supported memory clock speeds2133,2400 MHz
Supported memory typesDDR4
Memory channelsDual-channel
Unbuffered memorycheckmark
Memory slots typeDIMM
Supported memory module capacities1GB, 2GB, 4GB, 8GB, 16GB
Number of memory slots4
Weight & dimensions
Width225 mm
Depth244 mm
Networking
Ethernet LANcheckmark
Ethernet interface typeFast Ethernet
Internal I/O
USB 2.0 connectors6
S/PDIF out connectorcheckmark
CPU fan connectorcheckmark
Front panel audio connectorcheckmark
TPM connectorcheckmark
EPS power connector (8-pin)checkmark
USB 3.2 Gen 1 (3.1 Gen 1) connectors6
Number of SATA III connectors6
Front panel connectorcheckmark

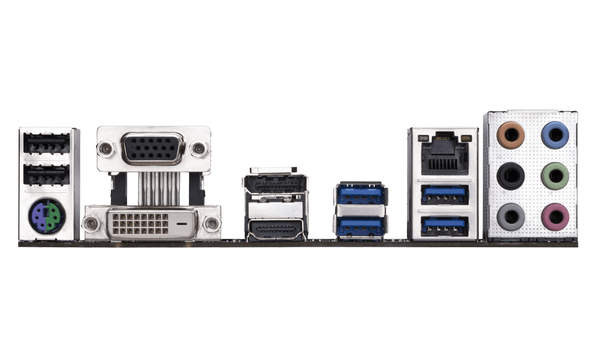

Back panel I/O ports
PS/2 ports quantity1
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
Headphone outputs1
Microphone incheckmark
VGA (D-Sub) ports quantity1
DVI-D ports quantity1
HDMI ports quantity1
USB 3.0 (3.1 Gen 1) Type-A ports quantity1
Storage controllers
Supported storage drive typesHDD & SSD
Expansion slots
PCI Express x16 slots1
PCI Express x1 slots2
Number of M.2 (M) slots1
BIOS
BIOS memory size128 Mbit
BIOS typeEFI AMI
ACPI version5.0
Clear CMOS jumpercheckmark
Processor special features
Intel Extreme Memory Profile (XMP)checkmark
Intel® Optane™ Memory Readycheckmark
Features
Motherboard chipsetIntel B250
Audio output channels7.1 channels
Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Linux operating systems supportedcheckmark
Power source typeATX
Motherboard chipset familyIntel
Component forPC
Motherboard
Motherboard form factorATX
EAN4719331847241
Warranty1 year

- Supports 7th/ 6th Generation Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 2-Way CrossFire™ Multi-Graphics Support
- SATA Express Connector for up to 16Gb/s Data Transfer
- Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
- Intel® Optane™ Memory Ready
- Triple display interfaces including High Definition Multimedia Interface
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
- GIGABYTE UEFI DualBIOS™
- APP Center Including Cloud Station™ Utility
