Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Processor socket | LGA 1151 |
| Intel Core i3/i5/i7/i9 series | i3-6xxx,i3-7xxx,i5-6xxx,i5-7xxx,i7-6xxx,i7-7xxx |
| Memory | |
| Maximum internal memory | 64 GB |
| Non-ECC |  |
| Supported memory clock speeds | 2133,2400 MHz |
| Supported memory types | DDR4 |
| Memory channels | Dual |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 225 mm |
| Networking | |
| Ethernet LAN | |
| Ethernet interface type | Gigabit Ethernet |
| Internal I/O | |
| Number of SATA connectors | 6 |
| USB 2.0 connectors | 2 |
| S/PDIF out connector | |
| CPU fan connector | |
| ATX Power connector (24-pin) | |
| Number of chassis fan connectors | 3 |
| TPM connector | |
| EPS power connector (8-pin) | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| Serial port headers | 1 |

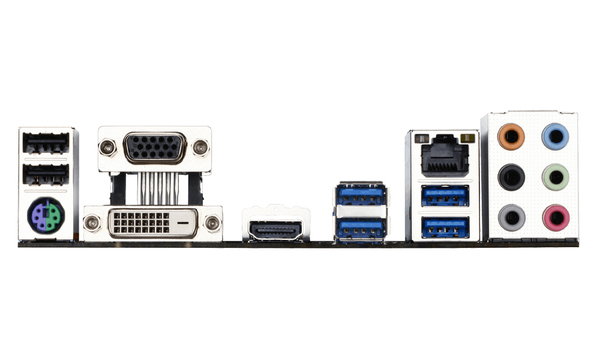

| Back panel I/O ports | |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Storage controllers | |
| Supported storage drive interfaces | M.2,Serial ATA |
| Packaging content | |
| Bundled software | Norton Internet Security (OEM version), Intel Optane Memory Ready, cFosSpeed |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| Graphics | |
| Number of displays supported | 3 |
| Processor special features | |
| Trusted Platform Module (TPM) | |
| Intel Extreme Memory Profile (XMP) | |
| Features | |
| Motherboard chipset | Intel B250 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8.1 x64 |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Component for | PC |
| Motherboard | |
| Motherboard form factor | Micro ATX |
| EAN | 4719331801489 |
| Warranty | 1 year |
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
All Hybrid Fan Pin Headers
- All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
- Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.
New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds
Fan Curve
Customize fan curves based on specific temperatures with the intuitive graphical UI.
Enhanced BIOS Interface
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows.
Ambient LED
Ambient lights are now programmable, You can have them beat to the rhythm of the music you are listening to, or pulse at a soothing pace to create an atmosphere that enhances the environment of your game, movie or music.
2-Way CrossFire Multi Graphics
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
Intel GbE LAN with cFosSpeed Internet Accelerator Networking
Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Fast Onboard Storage with NVMe
PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)
GIGABYTE's M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
All Hybrid Fan Pin Headers
- All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
- Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.
New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds
Fan Curve
Customize fan curves based on specific temperatures with the intuitive graphical UI.
Enhanced BIOS Interface
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows.
Ambient LED
Ambient lights are now programmable, You can have them beat to the rhythm of the music you are listening to, or pulse at a soothing pace to create an atmosphere that enhances the environment of your game, movie or music.
2-Way CrossFire Multi Graphics
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
Intel GbE LAN with cFosSpeed Internet Accelerator Networking
Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Fast Onboard Storage with NVMe
PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)
GIGABYTE's M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices
