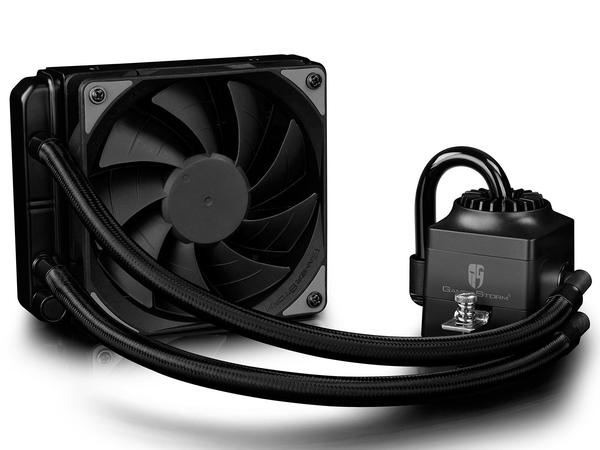

Deepcool CAPTAIN 120 EX RGB

Upgraded high-density water microchannel with powerful self-governed circulation system, 10% more efficient heat dissipation.
Amazing glass design &patented visual external-circulation system.
Updated tooling free installation solution, solid 100% metal material clip.
Unique silent TF 120 double-blade fan to offer a higher air pressure for radiator, more efficient to take heat away.
Upgraded anti-explosion rubber tube, anti-corrosion, crush resistance&Thermostable material.
Three-phase induction motor built-in the powerful closed impeller, the stronger liquid flow & bigger delivery head.
Long lifetime ceramic bearing with MTBF 120,000 hours.

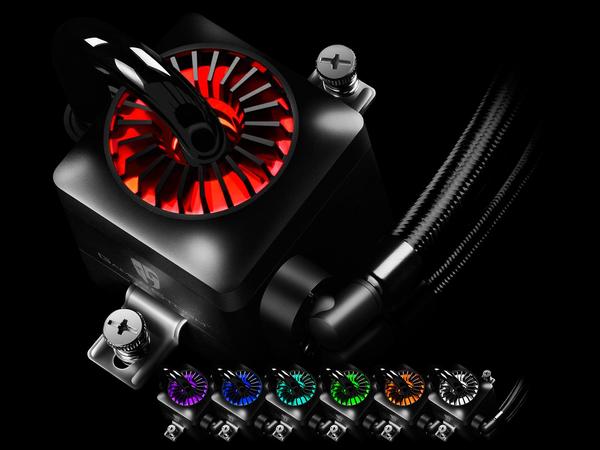

Crazy steam punk appearance &the unique reactor-style pump housing.
Bionic red LED breathing light lightening up while operating.

Application For

Intel LGA 2011-V3/2011All Series
Intel LGA 1366 All Series
Intel LGA 115X All Series
AMD FM2+/FM2/FM1 All Series
AMD AM3+/AM3 All Series
AMD AM2+/AM2 All Series
AMD AM4 Series


Technical Spec

Main system Dimensions 92.5X93X85mm
Radiator Dimensions 154X120X27mm
Radiator Material Aluminum
Fan Dimensions 120X120X25mm(1pcs) +PWM
Fan Speed 500±200-1800±10%RPM
Fan Air Flow 76.52CFM（MAX）
Fan Air Pressure 3.31mmH2O(MAX)
Fan Life Expectancy 50000 hours
Fan Noise Level 17.6~31.3dB(A)
Fan Bearing Type Hydro Bearing
Fan Connector 4Pin
Fan Rated Voltage 12VDC
Fan Rated Current 0.12±10%A(MAX)
Fan Power Consumption 1.44W
Pump Life Expectancy 120000 hours
Pump Connector 3Pin
Pump Operating Voltage 6~13.8VDC
Pump Rated Voltage 12VDC
Pump Speed 2100±10%RPM
Pump Load Current 0.15A(max)
Pump Power Consumption 1.80W
