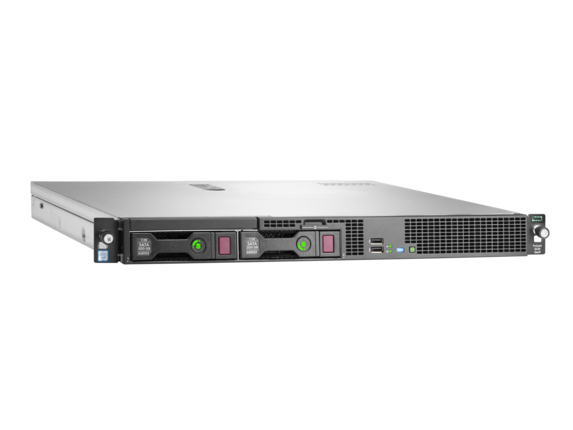

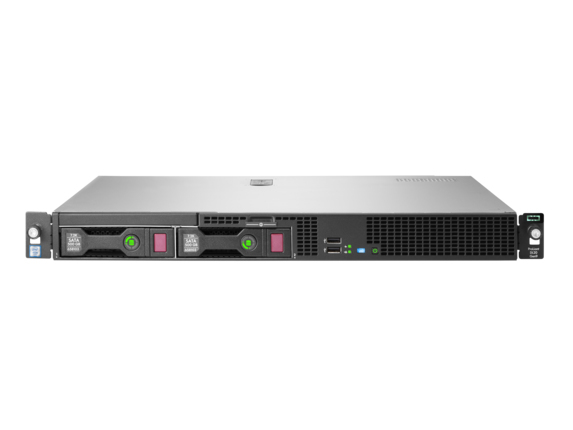

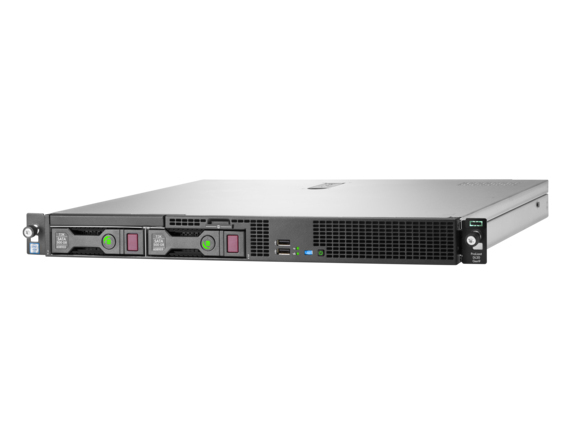

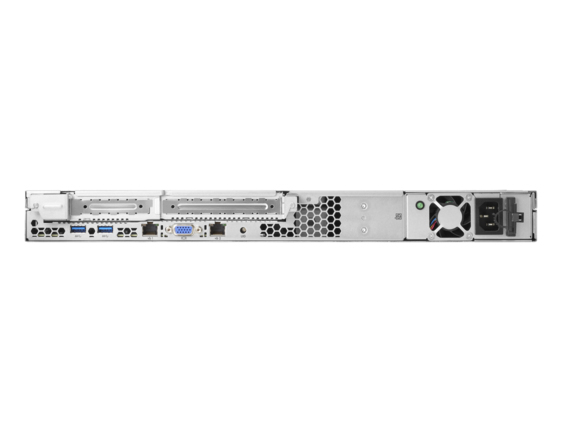

HPE ProLiant DL20 Gen9 G4560 2-Core 3.50GHz 3MB 8GB 1x8GB DDR4 UDIMM 2xNon-HotPlug 3.5in Dynamic SA B140i SATA 290W 1yr NBD

871428-B21
934,90 € Show VAT 0% Show VAT 24%
Online store: 4 pcs available Estimated delivery time: 1-4 days
Specifications
Description
Availability / Delivery
Price development
Processor
Processor modelG4560
Motherboard chipsetIntel® C232
Number of processors installed1
Processor lithography14 nm
Processor familyIntel Pentium
Processor socketLGA1151
SteppingB0
Supported instruction setsSSE4.1,SSE4.2
Processor cores2
Processor codeSR32Y
System bus rate8 GT/s
Processor threads4
Processor operating modes32-bit,64-bit
Processor cache3 MB
Execute Disable Bitcheckmark
Idle Statescheckmark
Thermal Monitoring Technologiescheckmark
Scalability1S
Tjunction100 °C
Embedded options availablecross
Bus typeDMI3
Graphics & IMC lithography14 nm
PCI Express configurations1x16,1x8+2x4,2x8
Processor frequency3.5 GHz
Thermal Design Power (TDP)54 W
Thermal solution specificationPCG 2015C
Processor codenameKaby Lake
Maximum number of PCI Express lanes16
Processor seriesIntel Pentium G4500 Series For Desktop
Maximum internal memory supported by processor64 GB
Memory types supported by processorDDR3L-SDRAM,DDR4-SDRAM
Memory clock speeds supported by processor1333,1600,2133,2400 MHz
Memory channels supported by processorDual
ECC supported by processorcross
Memory voltage supported by processor1.35 V
Processor package size37.5 x 37.5 mm
Conflict Free processorcheckmark
Memory
Internal memory typeDDR4-SDRAM
Memory slots4 DIMM
Maximum internal memory64 GB
ECCcheckmark
Memory clock speed2400 MHz
Memory layout (slots x size)1 x 8 GB
Internal memory8 GB
Ports & interfaces
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1
USB 3.0 (3.1 Gen 1) Type-A ports quantity2
Weight & dimensions
Weight7.88 kg
Height43.2 mm
Width434.6 mm
Depth382.2 mm
Energy management
Power supply290 W
Redundant power supply (RPS) supportcross
Number of main power supplies1
Networking
Cabling technology10/100/1000Base-T(X)
Ethernet LANcheckmark
Ethernet interface typeGigabit Ethernet
Storage
HDD interfaceSATA
RAID levels0, 1, 5
HDD size3.5"
Number of HDDs supported2
Maximum storage capacity16 TB
RAID supportcheckmark
Certificates
Energy Star certifiedcheckmark
Operating system/software
Compatible operating systemsMicrosoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
VMware
Operating system installedcross
Expansion slots
PCI Express slots version3.0
Design
Chassis typeRack (1U)
Optical drive typeN
Graphics
On-board graphics adapter modelIntel® HD Graphics 610
On-board graphics adapter base frequency350 MHz
On-board graphics adapter dynamic frequency (max)1050 MHz
On-board graphics adapter ID0x5902
Maximum on-board graphics adapter memory64 GB
Number of displays supported (on-board graphics)3
On-board graphics adapter DirectX version12.0
On-board graphics adapter OpenGL version4.4
Processor special features
Intel® Identity Protection Technology (Intel® IPT)checkmark
Intel® Hyper Threading Technology (Intel® HT Technology)checkmark
Intel® Turbo Boost Technologycross
Intel® Quick Sync Video Technologycheckmark
Intel® InTru™ 3D Technologycheckmark
Intel® Clear Video HD Technology (Intel® CVT HD)checkmark
Intel® AES New Instructions (Intel® AES-NI)checkmark
Enhanced Intel SpeedStep Technologycheckmark
Intel Trusted Execution Technologycross
CPU configuration (max)1
Intel Enhanced Halt Statecheckmark
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)checkmark
Intel VT-x with Extended Page Tables (EPT)checkmark
Intel TSX-NIcheckmark
Intel® Secure Keycheckmark
Intel 64checkmark
Intel Stable Image Platform Program (SIPP)cross
Intel® OS Guardcheckmark
Intel Virtualization Technology for Directed I/O (VT-d)checkmark
Intel Clear Video Technologycheckmark
Intel Software Guard Extensions (Intel SGX)checkmark
Intel Virtualization Technology (VT-x)checkmark
Processor ARK ID97143
EAN4549821061549
Warranty1 year
Source: Icecat.biz

English

Are you looking for a compact 1U server that works in a variety of environments? The dense and compact HPE ProLiant DL20 Gen9 Server powered by Intel® Pentium®, Core i3 and E3-1200v5 processors provides a unique blend of enterprise-class capabilities at a great value—making it an ideal rack server platform for growing businesses and service providers. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point.

The DL20 Gen9 Server offers a range of HPE Qualified options to fit most needs like affordable drives for light workloads, solid state drives for the demanding requirements, from a single non-hot plug power supply to an efficient HPE Hot Plug Redundant Power supply, from multiple storage controllers to the HPE FlexibleLOM networking cards—helping customers find the right configuration for their workloads.

Features

Optimized Reliable Solution
- The HPE ProLiant DL20 Gen9 Server is a 1P 1U rack server that combines the right balance of performance, expandability, reliability and manageability for a variety of business needs.
- The DL20 Gen9 Server combines a dense and compact form factor with redundant power supply capability which keeps your business running and provides data protection and accessibility even in the event of a power supply failure.
- Customers can protect against data loss and downtime with the enhanced error handing of HPE DDR4 ECC memory options while also improving workload performance and power efficiency.
- Trusted and proven HPE Smart Array technology provides businesses with protection for critical data through RAID mirroring and striping capability and, with FBWC up to 4 GB, captures and holds data indefinitely in the event of a power loss, equipment failure, or human error.
- Your business cannot afford disruptions due to downtime on your server. HPE Insight Online with HPE Insight Remote Support provides 24x7 remote monitoring with anywhere, anytime personalized access to your IT and support status to get your business up and running.

Ease of Use for Many Environments and Workloads
- The HPE ProLiant DL20 Gen9 Server is a short-depth chassis of 15.05” providing mobility and easy deployment in a wide variety of environments.
- The HPE embedded management solution based on HPE iLO 4 provides simple, versatile and comprehensive tools to deploy, manage and troubleshoot servers—even for customers with limited IT resources.
- The DL20 Gen9 Server has the great quality and design features that are a hallmark of the ProLiant family such as tool-less access to system components and enhanced serviceability.
- Trusted and proven HPE Smart Array technology provides businesses with protection for critical data through RAID mirroring and striping capability and, with FBWC up to 4 GB, captures and holds data indefinitely in the event of a power loss, equipment failure, or human error.

Great Combination of Performance and Efficiency
- The HPE ProLiant DL20 Gen9 Server supports Flex LOM which enables next-generation network capability for faster data transfer.
- You have a wide choice of dual core and quad core Intel Pentium and Xeon® E3-1200 processors with up to 64 GB of DDR4 ECC memory to handle any demands that your workload might make on the HPE ProLiant DL20 Gen9 Server.
- The DL20 Gen9 Server consumes up to 29% less power compared to the previous generation which combined with the efficient, redundant power supply solution provides you with an Energy Star® certified power saving solution.
