FUJITSU PRIMERGY TX1310 M3 Xeon E3-1225V6 1x8GB 2x 1TB HDD 8,9cm 3,5Zoll DVD-RW SM Std SV 1J VOS
Manufacturer: FUJITSU
ID: VFY:T1313SC010IN
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Processor | |
Processor model | E3-1225V6 |
Motherboard chipset | Intel C236 |
Number of processors installed | 1 |
Processor manufacturer | Intel |
Processor lithography | 32 nm |
Processor family | Intel Xeon |
Processor socket | LGA 1155 |
Stepping | D2 |
Supported instruction sets | AVX,SSE4.1,SSE4.2 |
Processor cores | 4 |
Processor code | SR00G |
CPU multiplier (bus/core ratio) | 31 |
System bus rate | 5 GT/s |
Processor threads | 4 |
Processor operating modes | 64-bit |
Processor boost frequency | 3.7 GHz |
Processor cache | 8 MB |
Execute Disable Bit | |
Idle States | |
Thermal Monitoring Technologies | |
Tcase | 72.6 °C |
Embedded options available | |
Bus type | DMI |
Processor frequency | 3.3 GHz |
Thermal Design Power (TDP) | 95 W |
Processor codename | Sandy Bridge |
Maximum number of PCI Express lanes | 2 |
Processor cache type | Smart Cache |
Maximum internal memory supported by processor | 32 GB |
Memory types supported by processor | DDR3-SDRAM |
Memory clock speeds supported by processor | 1066,1333 MHz |
Memory bandwidth supported by processor (max) | 21 GB/s |
Memory channels supported by processor | Dual |
ECC supported by processor | |
Processor package size | 37.5 mm |
Hard drive | |
Device type | HDD |
Memory | |
Internal memory type | DDR4-SDRAM |
Memory slots | 4 |
Maximum internal memory | 64 GB |
ECC | |
Memory clock speed | 2400 MHz |
Memory layout (slots x size) | 1 x 8 GB |
Internal memory | 8 GB |
Ports & interfaces | |
USB 2.0 ports quantity | 3 |
Ethernet LAN (RJ-45) ports | 1 |
DisplayPorts quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
Weight & dimensions | |
Weight | 14 kg |
Height | 375 mm |
Width | 180 mm |
Depth | 305 mm |
Energy management | |
Power supply | 250 W |
Power supply input frequency | 50 - 60 Hz |
Redundant power supply (RPS) support | |
Number of main power supplies | 1 |
Operational conditions | |
Operating temperature (T-T) | 10 - 35 °C |
Networking | |
Cabling technology | 10/100/1000Base-T(X) |
Ethernet LAN | |
LAN controller | Intel® I219 |
Ethernet interface type | Gigabit Ethernet |
Storage | |
Drive capacity | 1000 GB |
HDD speed | 7200 RPM |
HDD interface | SATA |
Optical drive type | DVD-RW |
RAID levels | 0,1,10 |
HDD size | 3.5" |
Hot-Plug support | |
Total storage capacity | 2000 GB |
Number of HDDs installed | 2 |
Number of HDDs supported | 4 |
SSD interface | SATA III |
Supported HDD sizes | 3.5" |
RAID support | |
Supported storage drive interfaces | Serial ATA III |
Certificates | |
Certification | CB, RoHS, WEEE, GS, CE, CSA us, ULc/us, FCC Class A, VCCI:V3 Class A + JIS 61000-3-2, KC, CCC, C-Tick (AS / NZS CISPR 22 Class A) |
Operating system/software | |
Compatible operating systems | Microsoft Hyper-V Server 2012 R2 Microsoft Hyper-V Server 2016 Microsoft Windows Server 2012 R2 Datacenter Microsoft Windows Server 2016 Datacenter Microsoft Windows Server 2012 R2 Standard Microsoft Windows Server 2016 Standard Microsoft Windows Server 2012 R2 Essentials Microsoft Windows Server 2016 Essentials Microsoft Windows Server 2012 R2 Foundation Microsoft Windows Storage Server 2012 R2 Standard Microsoft Windows Storage Server 2016 Standard Microsoft Hyper-V Server 2012 Microsoft Windows Server 2012 Datacenter Microsoft Windows Server 2012 Standard Microsoft Windows Server 2012 Essentials Microsoft Windows Server 2012 Foundation SUSE Linux Enterprise Server 12 Red Hat Enterprise Linux 7 |
Expansion slots | |
PCI Express slots version | 2.0 |
PCI Express x4 (Gen 3.x) slots | 1 |
PCI Express x1 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 3.x) slots | 1 |
Design | |
Chassis type | Tower |
Graphics | |
On-board graphics card model | Intel® HD Graphics P3000 |
On-board graphics card | |
On-board graphics card base frequency | 850 MHz |
On-board graphics card dynamic frequency (max) | 1350 MHz |
On-board graphics card ID | 0x191D |
On-board graphics card 4K support | |
Maximum on-board graphics card memory | 1.7 GB |
Number of displays supported (on-board graphics) | 2 |
On-board graphics card DirectX version | 12.0 |
On-board graphics card OpenGL version | 4.4 |
On-board graphics card family | |
Processor special features | |
Intel® Hyper Threading Technology (Intel® HT Technology) | |
Intel® Turbo Boost Technology | 2.0 |
Intel® Quick Sync Video Technology | |
Intel® InTru™ 3D Technology | |
Intel® Wireless Display (Intel® WiDi) | |
Intel FDI Technology | |
Intel® Clear Video HD Technology (Intel® CVT HD) | |
Intel Dual Display Capable Technology | |
Intel Fast Memory Access | |
Intel Flex Memory Access | |
Intel® Smart Cache | |
Intel® AES New Instructions (Intel® AES-NI) | |
Enhanced Intel SpeedStep Technology | |
Intel Trusted Execution Technology | |
CPU configuration (max) | 1 |
Intel Enhanced Halt State | |
Intel VT-x with Extended Page Tables (EPT) | |
Intel Demand Based Switching | |
Intel 64 | |
Intel Virtualization Technology for Directed I/O (VT-d) | |
Intel Identity Protection Technology version | 1.00 |
Intel Virtualization Technology (VT-x) | |
Processor ARK ID | 52270 |
Performance | |
Trusted Platform Module (TPM) | |
EAN | 4057185856607 |
Warranty | 1 year |
Source: Icecat.biz |

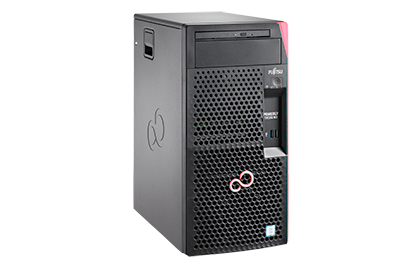

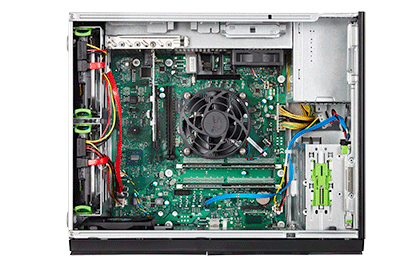

The FUJITSU Server PRIMERGY TX1310 M3 is a versatile and affordable mono-socket platform designed for Small and Medium Enterprise (SME) needs. It features the latest Intel® Xeon ® E3-1200 v6 product family, Core™ i3, Pentium® and Celeron® processors and up to 64 GB DDR4 memory for essential computing needs. Its compact new chassis offers the right mix of storage and scalability for essential SME workloads at the right price, with support for up to four 3.5-inch storage drives (40TB max.) and four PCIe Gen3 slots. The server is also easy to service with a screw-less chassis and hard disk quick-release capability. Silent operation makes it perfect for standard SME deployment requirements, such as showrooms or offices.
