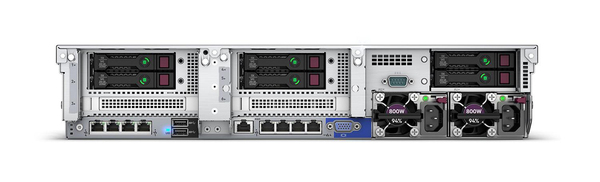

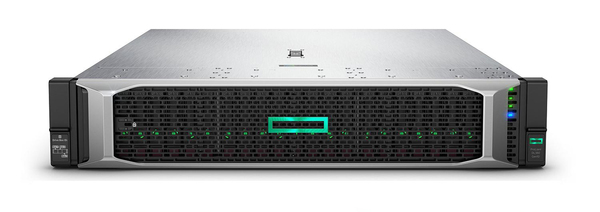

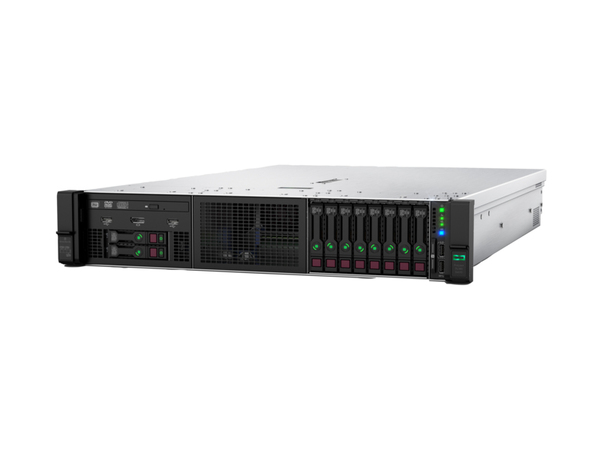

HPE DL380 Gen10 3106 1P 16G 8SFF Svr

ID: 826564-B21
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Processor
Processor model3106
Number of processors installed1
Processor manufacturerIntel
Processor lithography14 nm
Processor familyIntel Xeon
Processor socketP
SteppingU0
Processor cores8
Processor codeSR3GL
Processor threads8
Processor operating modes64-bit
Processor cache11 MB
Execute Disable Bitcheckmark
Scalability2S
Tcase77 °C
Embedded options availablecheckmark
Processor frequency1.7 GHz
Thermal Design Power (TDP)85 W
Processor codenameSkylake
Maximum number of PCI Express lanes48
Processor cache typeL3
Maximum internal memory supported by processor768 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2133 MHz
Memory channels supported by processorHexa
ECC supported by processorcheckmark
Processor package size76.0 x 56.5 mm
Conflict-Free processorcheckmark
Memory
Internal memory typeDDR4-SDRAM
Memory slots24x DIMM
Maximum internal memory768 GB
Memory clock speed2666 MHz
Memory layout (slots x size)1 x 16 GB
Internal memory16 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports4
DisplayPorts quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
Weight & dimensions
Weight14.8 kg
Height87.4 mm
Width445.5 mm
Depth730.3 mm
Energy management
Power supply500 W
Redundant power supply (RPS) supportcheckmark
Number of main power supplies1
Number of redundant power supplies installed1
Networking
Ethernet LANcheckmark
LAN controllerHP 331i
Ethernet interface typeGigabit Ethernet
Storage
HDD interfaceSATA
Optical drive typeN
RAID levels0,1,5,10
HDD size2.5"
Hot-Plug supportcheckmark
Number of HDDs supported8
Maximum storage capacity60 TB
Supported HDD sizes2.5"
RAID supportcheckmark
Supported storage drive interfacesSerial ATA
Operating system/software
Compatible operating systemsWindows Server 2012 R2
Windows Server 2016
VMware ESXi 6.0 U3
VMware ESXi 6.5 & U1
Red Hat Enterprise Linux (RHEL) 6.9 & 7.3
SUSE Linux Enterprise Server (SLES) 11 SP4 & 12 SP2
ClearOS
CentOS
Operating system installedcross
Expansion slots
PCI Express slots version3.0
Design
Rack mountingcheckmark
Chassis typeRack (2U)
Product colourBlack, Silver
Graphics
On-board graphics cardcheckmark
Processor special features
Intel® Hyper Threading Technology (Intel® HT Technology)cross
Intel® Turbo Boost Technologycross
Intel® AES New Instructions (Intel® AES-NI)checkmark
Enhanced Intel SpeedStep Technologycheckmark
Intel Trusted Execution Technologycheckmark
Intel VT-x with Extended Page Tables (EPT)checkmark
Intel TSX-NIcheckmark
Intel 64checkmark
Intel Virtualization Technology for Directed I/O (VT-d)checkmark
Intel Virtualization Technology (VT-x)checkmark
Intel TSX-NI version1.00
Processor ARK ID123540
Performance
Remote administrationiLO 5 ASIC
EAN0725184018572
Warranty1 year
Source: Icecat.biz

What is your server bottleneck...storage, compute, expansion? The world’s best-selling server1 just got better. The HPE ProLiant DL380 Gen10 Server delivers the latest in security, performance and expandability. While backed by a comprehensive warranty, makes it ideal for any server environment. Standardize on the industry's most trusted compute platform. The HPE ProLiant DL380 Gen10 Server is securely designed to reduce costs and complexity, the Intel® Xeon® Processor Scalable Family with up to a 71% performance gain and 27% increase in cores, plus the HPE 2666 MT/s DDR4 SmartMemory supporting 3.0 TB and up to 11% faster than 2400 MT/s. It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. HPE Persistent Memory, optimized on HPE ProLiant Servers, offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission critical applications, and deploy with confidence.

What's new
- Security through firmware and optional chassis intrusion options
- HPE performance leadership with Persistent Memory
- HPE innovation with Intelligent System Tuning
- Modular chassis with greater drive capacity and flexibility
- Supports Intel® Xeon® Processor Scalable Family

Features

Flexible Design Making Your Investment Expand As Your Business Needs Grow
- The HPE ProLiant DL380 Gen10 Server has an adaptable chassis, including new HPE modular drive bay configuration options with up to 30 SFF, up to 19 LFF or up to 20 NVMe drive options along with support for up to 3 double wide GPU options.
- HPE Persistent Memory, delivers unprecedented levels of performance and data resiliency for databases and analytic workloads. With up to 27x faster4 application checkpoint operations and 20x faster restores, HPE delivers the fastest persistent memory in the market at TB-scale.
- In conjunction with the embedded SATA HPE Dynamic Smart Array S100i Controller for boot, data and media needs, the redesigned HPE Smart Array Controllers allow you the flexibility to choose the optimal 12 Gb/s controller most suited to your environment, and operate in both SAS and HBA mode.
- Along with an embedded 4x1GbE, you have a choice of HPE FlexibleLOM or PCIe standup adapters which offer a choice of networking bandwidth (1GbE to 40GbE) and fabric so you can adapt and grow to changing business needs.
- Supporting a wide range of operating environments from Azure to Docker to ClearOS in addition to traditional OSes.

Security Innovations
- Only Hewlett Packard Enterprise offers industry standard servers with major firmware anchored directly into the silicon. With security protection built in across the server life-cycle starting with Silicon Root of Trust.
- Millions of lines of firmware code run before server operating system boots and with Run-Time Firmware Validation, enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.
- Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised code.
- Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to the server and securely store artifacts used to authenticate the server platforms while the Intrusion Detection kit logs and alerts when the server hood is removed.

World-Class Performance
- HPE innovation with Intelligent System Tuning optimizes workload performance using customized profiles to tune internal resources, with improved throughput for all workloads including latency-sensitive workloads such as high-frequency trading with jitter smoothing.
- The HPE ProLiant DL380 Gen10 Server supports industry standard technology leveraging the latest Intel® Xeon® Processor Scalable Family with up to 28 cores, 12 Gb SAS and 3.0 TB6 of HPE DDR4 SmartMemory.
- The HPE ProLiant DL380 Gen10 supports up to three double wide or five single wide GPUs for workload acceleration.

Industry Leading Services and Ease of Deployment
- The HPE ProLiant DL380 Gen10 Server comes with a complete set of HPE Technology Services, delivering confidence, reducing risk and helping customers realize agility and stability.
- HPE Pointnext Services simplifies all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an optimal solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.
- Services provided under Operational Services include: Flexible Capacity, Datacenter Care, Infrastructure Automation, Campus Care, Proactive Services and Multi-vendor coverage.
- HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
