MSI Z370I Gaming Pro CARBON AC, mini-ITX motherboard
Manufacturer: MSI
ID: Z370I GAMING PRO CARBON AC
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Processor socket | LGA 1151 |
| Memory | |
| Maximum internal memory | 32 GB |
| Non-ECC |  |
| Supported memory clock speeds | 2133,2400,2667,2800,3000,3200,3300,3333,3466,3600,3733,3866,4000,4133,4266,4333,4400,4500 MHz |
| Supported memory types | DDR4 |
| Memory channels | Dual |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
| Energy management | |
| Power source type | ATX |
| Networking | |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Bluetooth version | 4.2 |
| Ethernet LAN | |
| Bluetooth | |
| LAN controller | Intel® I219-V |
| Wi-Fi | |
| Ethernet interface type | Gigabit Ethernet |
| Internal I/O | |
| Number of SATA connectors | 4 |
| USB 2.0 connectors | 1 |
| CPU fan connector | |
| ATX Power connector (24-pin) | |
| Chassis intrusion connector | |
| Front panel audio connector | |
| TPM connector | |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Supported storage drive interfaces | M.2,Serial ATA III |
| Front panel connector | |
| 12V power connector | |

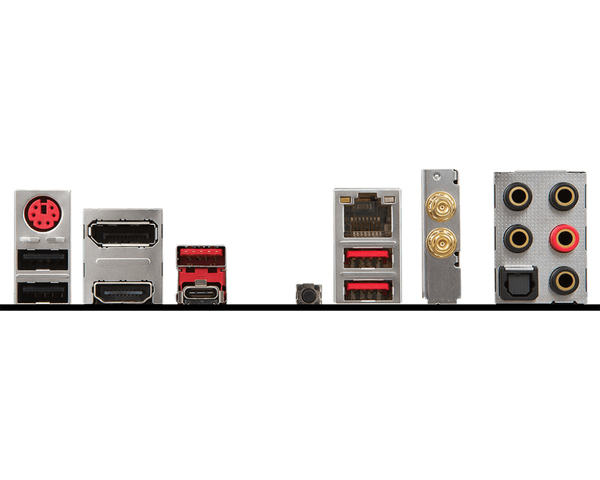

| Back panel I/O ports | |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | |
| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Analog audio output | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Supported storage drive types | HDD,SSD |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
| Clear CMOS button | |
| Clear CMOS jumper | |
| Graphics | |
| Maximum resolution | 4096 x 2304 pixels |
| DirectX version | 12.0 |
| Processor special features | |
| Intel Extreme Memory Profile (XMP) | |
| Intel® Optane™ Memory Ready | |
| Features | |
| Motherboard chipset | Intel Z370 |
| Motherboard form factor | Mini ITX |
| Audio output channels | 7.1 channels |
| Supported processor sockets | LGA 1151 (Socket H4) |
| Motherboard chipset family | Intel |
| Component for | PC |
| Audio chip | Realtek ALC1220 |
| EAN | 4719072540333 |
| Warranty | 3 years |
FEATURES
Personalize your gaming rig
Customize and set up your own color scheme with MSI Mystic Light utility. Select the available colors from the palette to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!
Stay cool while gaming
Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.
Your in-game advantage
Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.
Be the first on the battlefield
This MSI GAMING motherboard supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies.
Immerse yourself into virtual worlds
Integrating the very best of cutting edge technologies on MSI hardware provides a smooth VR ride. Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid and realistic experience in which content truly comes alive.
Sound that pulls you into the game
Get the most immersive sound experience when gaming. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most exciting gameplay.
Dominate the game with the lowest latency
Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.
Unmatched memory performance
MSI motherboards are crammed with features to fuel your gaming rig's memory with more speed, higher overclockability and increased stability.
Designed for limitless tuning
Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.
Maximize your USB device performance
Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds up to 10Gb/s!
Built on everlasting quality
Using only the finest quality components and integrating the latest technological innovations delivers the best possible gaming and professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.
A gamers' BIOS
We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance when gaming.
FIRE YOUR IMAGINATION!
Create your own unique modifications for MSI GAMING motherboards! MSI supports 3D-printable parts for personalization. With various design offered by MSI MOD HUB, you are able to easily customize heatsink covers, SLI bridges, and even your own name plates and logos in your favorite colors and materials.
8. EZ Debug LED: Easiest way to troubleshoot
- Lightning Fast Game experience: 1x TURBO M.2, Intel Optane Memory Ready. LIGHTNING USB 3.1 GEN2
- AUDIO BOOST 4 with Nahimic 2+: Reward your ears with studio grade sound quality for the most immersive gaming experience
- DDR4 Boost with STEEL ARMOR: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost
- GAMING LAN and Wireless support, powered by Intel: The best online gaming experience with lowest latency and bandwidth management
- VR Ready: Best virtual reality game experience without latency, reduces motion sickness
- Military Class 5, Guard-Pro: Latest evolution with highquality Japanese components for best protection and efficiency
- In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, WTFast
Personalize your gaming rig
Customize and set up your own color scheme with MSI Mystic Light utility. Select the available colors from the palette to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!
Stay cool while gaming
Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.
Your in-game advantage
Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.
Be the first on the battlefield
This MSI GAMING motherboard supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies.
Immerse yourself into virtual worlds
Integrating the very best of cutting edge technologies on MSI hardware provides a smooth VR ride. Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid and realistic experience in which content truly comes alive.
Sound that pulls you into the game
Get the most immersive sound experience when gaming. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most exciting gameplay.
Dominate the game with the lowest latency
Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.
Unmatched memory performance
MSI motherboards are crammed with features to fuel your gaming rig's memory with more speed, higher overclockability and increased stability.
Designed for limitless tuning
Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.
Maximize your USB device performance
Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds up to 10Gb/s!
Built on everlasting quality
Using only the finest quality components and integrating the latest technological innovations delivers the best possible gaming and professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.
A gamers' BIOS
We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance when gaming.
FIRE YOUR IMAGINATION!
Create your own unique modifications for MSI GAMING motherboards! MSI supports 3D-printable parts for personalization. With various design offered by MSI MOD HUB, you are able to easily customize heatsink covers, SLI bridges, and even your own name plates and logos in your favorite colors and materials.
8. EZ Debug LED: Easiest way to troubleshoot
- Lightning Fast Game experience: 1x TURBO M.2, Intel Optane Memory Ready. LIGHTNING USB 3.1 GEN2
- AUDIO BOOST 4 with Nahimic 2+: Reward your ears with studio grade sound quality for the most immersive gaming experience
- DDR4 Boost with STEEL ARMOR: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost
- GAMING LAN and Wireless support, powered by Intel: The best online gaming experience with lowest latency and bandwidth management
- VR Ready: Best virtual reality game experience without latency, reduces motion sickness
- Military Class 5, Guard-Pro: Latest evolution with highquality Japanese components for best protection and efficiency
- In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, WTFast
