Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
| Processor | |
| Processor model | N3350 |
| Processor manufacturer | Intel |
| L2 cache | 2 MB |
| Processor lithography | 14 nm |
| Processor family | Intel Celeron |
| Processor cores | 2 |
| Processor threads | 2 |
| Built-in processor |  |
| Processor boost frequency | 2.4 GHz |
| CPU configuration (max) | 1 |
| Processor frequency | 1.1 GHz |
| Thermal Design Power (TDP) | 6 W |
| Processor codename | Apollo Lake |
| Processor series | Intel Celeron N3000 series |
| Memory | |
| Maximum internal memory | 8 GB |
| Memory voltage | 1.35 V |
| Supported memory clock speeds | 1333,1600,1866 MHz |
| Supported memory types | DDR3 |
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |

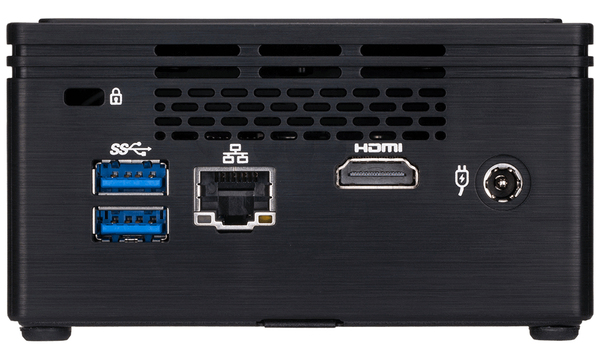

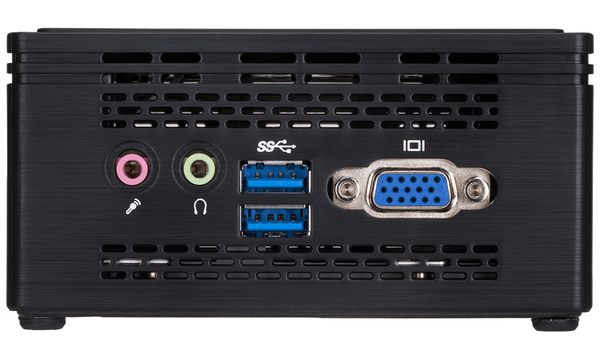

| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Combo headphone/mic port | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Weight & dimensions | |
| Height | 56.1 mm |
| Width | 107.6 mm |
| Depth | 114.4 mm |
| Energy management | |
| AC adapter output voltage | 19 V |
| AC adapter output current | 2.1 A |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Networking | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth version | 4.0 |
| Ethernet LAN | |
| Bluetooth | |
| LAN controller | Realtek RTL8111HS |
| Wi-Fi | |
| Storage | |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 1 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD |
| Operating system/software | |
| Compatible operating systems | WIN10 64bit |
| Operating system installed |  |
| Expansion slots | |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x2+2x1, 4x1 |
| Other features | |
| Processor ARK ID | 95598 |
| Design | |
| Chassis type | 0.69L sized PC |
| Product colour | Black |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| VESA mounting | |
| Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics 500 |
| On-board graphics card | |
| Processor special features | |
| Intel® Identity Protection Technology (Intel® IPT) | |
| Intel® Anti-Theft Technology (Intel® AT) | |
| Intel® Smart Response Technology | |
| Intel Smart Connect Technology | |
| Intel® Hyper Threading Technology (Intel® HT Technology) | |
| Intel® Turbo Boost Technology | |
| Intel® Quick Sync Video Technology | |
| Intel® InTru™ 3D Technology | |
| Intel® Wireless Display (Intel® WiDi) | |
| Intel® Clear Video HD Technology (Intel® CVT HD) | |
| Intel® Insider™ | |
| Intel® AES New Instructions (Intel® AES-NI) | |
| Enhanced Intel SpeedStep Technology | |
| Execute Disable Bit | |
| Idle States | |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Thermal Monitoring Technologies | |
| Intel Trusted Execution Technology | |
| Intel VT-x with Extended Page Tables (EPT) | |
| Embedded options available | |
| Intel Rapid Storage Technology | |
| Intel® High Definition Audio (Intel® HD Audio) | |
| Intel® Small Business Advantage (Intel® SBA) | |
| Intel® Secure Key | |
| Intel 64 | |
| Intel Stable Image Platform Program (SIPP) | |
| Intel® OS Guard | |
| Intel Virtualization Technology for Directed I/O (VT-d) | |
| Intel Clear Video Technology | |
| Intel Virtualization Technology (VT-x) | |
| Performance | |
| Audio system | Realtek ALC891 |
| Processor socket | BGA 1296 |
| EAN | 4719331262181 |
| Warranty | 1 year |

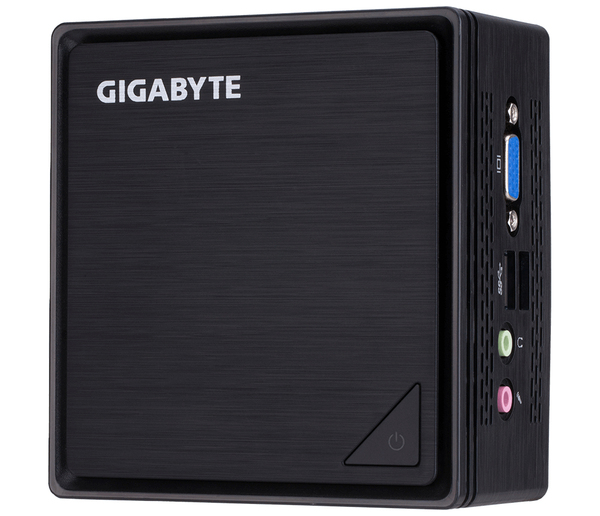

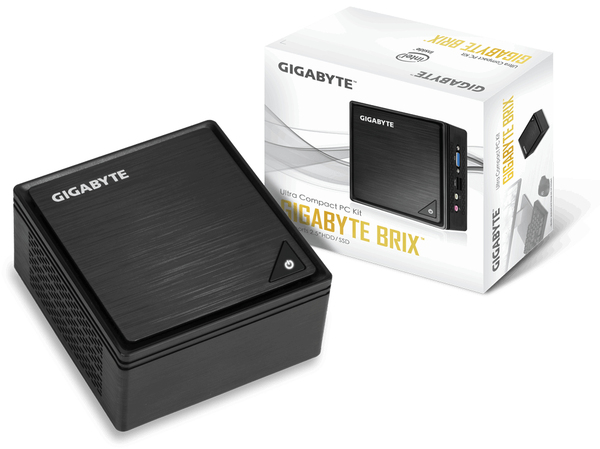

Redefining the Desktop PC
Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish design based on a brushed aluminum surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience, sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC / multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. The BRIX is an ultra compact,versatile DIY PC kit that redefines the desktop PC in terms of miniaturization with a form factor that is small enough (56mm x 107mm x 114mm) to sit in the palm of your hand.
Intel® Celeron Processor
The new generation of Intel® Celeron Processors leverage the 14nm process technology. The new processors improve upon power consumption along with enhancements in performance for graphics and computations. For the BRIX the new Celeron processors deliver a 30% increase in performance and at least 35% better 3D graphics performance gen-over-gen. The system-on-chip (SoC) design provides an even smaller footprint than its desktop counterparts, making BRIX the ideal solution for thin clients, POS solutions, and digital signage.
Dual Display
With HDMI and VGA output, the BRIX can power two displays simultaneously, making it a perfect choice as a high productivity PC in both working environment and home entertainment.
Advanced Features For Power Users
The Brix is engineered to take full advantage of what the hardware and its UEFI BIOS are capable of. And therefore, it’s designed to deliver the most intuitive and integrated operating systems in the world.
VESA Support
The BRIX is packed with wall mount adapter whether undergo rigorous testing for safety and reliability. The BRIX also bundled with a VESA bracket, it can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This offers a simple and elegant way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish design based on a brushed aluminum surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience, sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC / multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. The BRIX is an ultra compact,versatile DIY PC kit that redefines the desktop PC in terms of miniaturization with a form factor that is small enough (56mm x 107mm x 114mm) to sit in the palm of your hand.
Intel® Celeron Processor
The new generation of Intel® Celeron Processors leverage the 14nm process technology. The new processors improve upon power consumption along with enhancements in performance for graphics and computations. For the BRIX the new Celeron processors deliver a 30% increase in performance and at least 35% better 3D graphics performance gen-over-gen. The system-on-chip (SoC) design provides an even smaller footprint than its desktop counterparts, making BRIX the ideal solution for thin clients, POS solutions, and digital signage.
Dual Display
With HDMI and VGA output, the BRIX can power two displays simultaneously, making it a perfect choice as a high productivity PC in both working environment and home entertainment.
Advanced Features For Power Users
The Brix is engineered to take full advantage of what the hardware and its UEFI BIOS are capable of. And therefore, it’s designed to deliver the most intuitive and integrated operating systems in the world.
VESA Support
The BRIX is packed with wall mount adapter whether undergo rigorous testing for safety and reliability. The BRIX also bundled with a VESA bracket, it can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This offers a simple and elegant way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
