Asus VIVO-Mini UN68U-M008Z i7-8550U Intel HD 620 8GB 256GB SSD m2, Win 10 Home

Manufacturer: ASUS
ID: 90MS0171-M00080
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Technical details
Device typeSSD
Processor
Processor modeli7-8550U
Number of processors installed1
Processor lithography14 nm
Processor familyIntel Core i7
Processor socketBGA 1356
SteppingY0
Processor cores4
System bus rate4 GT/s
Processor threads8
PCI Express slots version3.0
Processor operating modes64-bit
Processor boost frequency4.00 GHz
Processor cache8 MB
Tjunction100 °C
Bus typeOPI
PCI Express configurations1x2+2x1,1x4,2x2,4x1
Processor frequency1.80 GHz
Thermal Design Power (TDP)15 W
Processor codenameKaby Lake R
Maximum number of PCI Express lanes12
Configurable TDP-down frequency800 MHz
Maximum internal memory supported by processor32 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2133,2400 MHz
Memory bandwidth supported by processor (max)34.1 GB/s
Memory channels supported by processorDual
ECC supported by processorcross
Memory
Internal memory typeDDR4-SDRAM
Maximum internal memory32 GB
Memory clock speed2400 MHz
Internal memory8 GB
Optical drive
Optical drive typeN
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Microphone incross
DC-in jackcheckmark
DVI portcross
HDMI ports quantity1
DisplayPorts quantity1
Combo headphone/mic portcheckmark
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Weight & dimensions
Weight700 g
Height52 mm
Width131 mm
Depth131 mm
Energy management
Power supply65 W
Networking
Wi-Fi standards802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Cabling technology10/100/1000Base-T(X)
Bluetooth version4.2
Ethernet LANcheckmark
Bluetoothcheckmark
Wi-Ficheckmark
Ethernet LAN data rates10,100,1000 Mbit/s
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Storage
Drive capacity256 GB
Compatible memory cardsMMC,SD,SDHC,SDXC
Total storage capacity256 GB
Card reader integratedcheckmark
Number of SSDs installed1
Storage mediaSSD
Operating system/software
Operating system installedWindows 10 Home
Operating system architecture64-bit
Packaging content
Display includedcross
Design
Cable lock slotcheckmark
Product colourBlue
Cable lock slot typeKensington
Graphics
On-board graphics card modelIntel® UHD Graphics 620
Discrete graphics card modelNot available
On-board graphics cardcheckmark
On-board graphics card base frequency300 MHz
On-board graphics card dynamic frequency (max)1150 MHz
On-board graphics card ID0x5917
Maximum on-board graphics card memory32 GB
Number of displays supported (on-board graphics)3
On-board graphics card DirectX version12.0
On-board graphics card OpenGL version4.4
Discrete graphics cardcross
Processor special features
Supported instruction setsAVX 2.0,SSE4.1,SSE4.2
Intel® My WiFi Technology (Intel® MWT)checkmark
Intel® Identity Protection Technology (Intel® IPT)checkmark
Intel® Hyper Threading Technology (Intel® HT Technology)checkmark
Intel® Turbo Boost Technology2.0
Intel® Quick Sync Video Technologycheckmark
Intel® InTru™ 3D Technologycheckmark
Intel® Clear Video HD Technology (Intel® CVT HD)checkmark
Intel Flex Memory Accesscheckmark
Intel® AES New Instructions (Intel® AES-NI)checkmark
Enhanced Intel SpeedStep Technologycheckmark
Execute Disable Bitcheckmark
Idle Statescheckmark
Thermal Monitoring Technologiescheckmark
Intel Trusted Execution Technologycross
CPU configuration (max)1
Intel Enhanced Halt Statecheckmark
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)checkmark
Intel VT-x with Extended Page Tables (EPT)checkmark
Embedded options availablecross
Intel TSX-NIcheckmark
Intel 64checkmark
Intel® OS Guardcheckmark
Intel Virtualization Technology for Directed I/O (VT-d)checkmark
Intel Clear Video Technologycheckmark
Intel Software Guard Extensions (Intel SGX)checkmark
Intel Virtualization Technology (VT-x)checkmark
Processor package size42 x 24 mm
Conflict-Free processorcheckmark
Processor ARK ID122589
Performance
Product typeMini PC
EAN4712900896077
Warranty2 years
Source: Icecat.biz

Desktop performance, miniaturized
ASUS VivoMini UN68U packs the capabilities of a full-fledged business PC into a compact and lightweight chassis. It features the latest 8th Generation Intel® Core™ processor, a flexible dual-storage design, blazing-fast M.2 PCIe 3.0 x4 NVMe data transfers, and lots of high-speed, convenient connectivity options. Even with all this power VivoMini UN68U is a quiet performer, with a low-speed-fan design that keeps noise levels to a minimum. It also benefits from the pre-installed ASUS Business Manager software, to help small business owners with system management and maintenance.

VivoMini UN68U is the ideal solution for offices, and it's also great for digital signage or information kiosks. The ‘bare-bones'* version of the machine is perfect for those who need to choose their own operating system, Wi-Fi card and storage options, and it offers an easy-access design that allows for simple, hassle-free hardware upgrades.

Uncompromising performance
VivoMini UN68U is available with the latest 8th Generation Intel Core i7,or i5 processor, delivering a 40% performance increase compared to previous-generation processors.* VivoMini UN68U also has faster, more-efficient memory, with the DDR4 2400MHz complement running at up to 1.5X quicker and while using 20% less energy compared to DDR3 1600MHz memory. All this provides you with fast and efficient performance for daily multitask computing. Whether you're running business applications, performing online research, or working with Microsoft Office apps, VivoMini UN68U takes it all in stride.

Multi-display productivity
VivoMini UN68U supports up to three independent displays though HDMI and DisplayPort++, providing the freedom to multitask across as much space as your work demands. And, of course, it's compatible with any modern monitor, HDMI TV or projector, so you'll never be short of display options.

Flexible dual-storage design

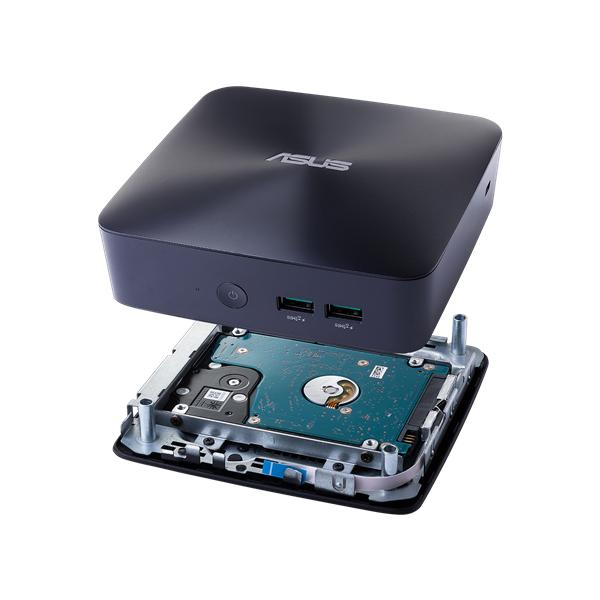

VivoMini UN68U features a dual-storage design for maximum flexibility. It can with a single high-speed M.2 SSD, a single 2.5-inch HDD or 2.5-inch SSD, or an M.2 SSD in combination with either a 2.5-inch HDD or a 2.5-inch SSD — while the bare-bones model allows you to create whatever storage solution you need.

Blazing-fast NVM Express support
Built-in support for M.2 PCIe 3.0 x4 gives VivoMini UN68U the speed and performance you crave in a compact PC. NVM Express® (NVMe) SSDs deliver data-transfer speeds of up to 32Gbps, making them the perfect choice for an operating system or application drive — so you spend less time waiting and more time getting work done.

Faster storage with Intel Optane memory
VivoMini UN68U can be optionally specified with Intel Optane™ memory for unmatched system performance. Intel Optane memory technology is a smart and adaptable system accelerator that improves responsiveness to enable up to 24X-faster HDD access speeds, 1.5X-faster in common communications usage, and 2.5X-faster file searches. VivoMini UN68U's high-capacity HDD, coupled with Intel Optane, provides an optimal combination of large storage capacity and high-speed data access.

Quiet operation
VivoMini UN68U is remarkably quiet, thanks to optimized low-speed-fan settings that keep noise levels down to just 23dB at idle — as hushed as office whispers. And it doesn't get much louder at full load either, generating just 38dB of noise. That's 36% below the industry standard, allowing you to concentrate on your work without the distraction of background noise.

Built for the business world
VivoMini UN Series has a Good Design Award-winning design that features smooth, rounded edges and the iconic Zen-inspired ASUS finish. Available in glossy Midnight Blue, the chassis of VivoMini UN68U is just 131 x 131 x 52mm and can be VESA-mounted on the back of a display to create a tidy, all-in-one workstation.

Customization made easy
Each business has its own IT infrastructure requirements and challenges. VivoMini UN68U lets you tailor solutions for your specific organizational needs. You can even choose whichever operating system, Wi-Fi card or storage options you need — and making it easy to upgrade whenever you want.

Fast and convenient connectivity

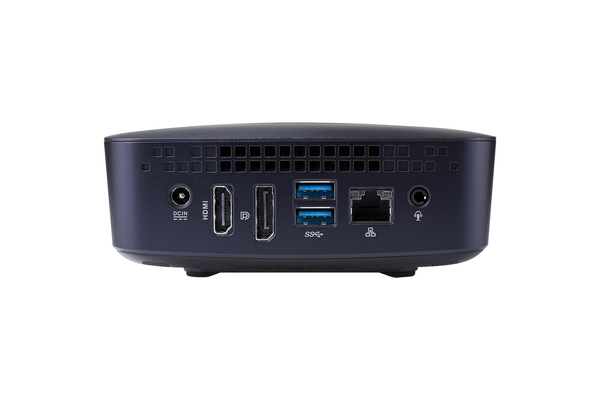

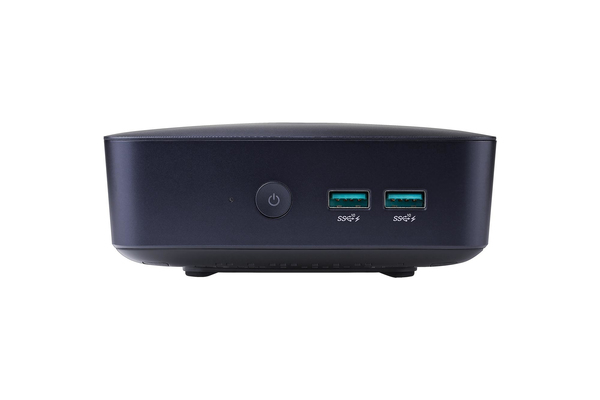

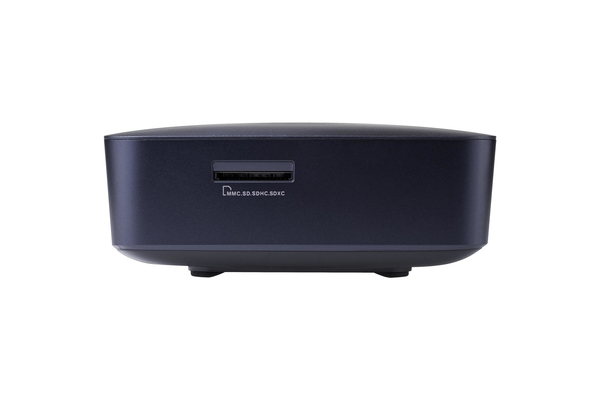

VivoMini UN68U features two easy-reach front-mounted USB 3.1 Gen 2 ports with fast-charge technology, so your mobile devices will charge in half the time. In addition, VivoMini UN68U offers convenient connectivity options, including two USB 3.1 Gen 1 ports, a 4-in-1 card reader, HDMI and DisplayPort++.

Corporate Stable Model (CSM)
The CSM program is an initiative designed to provide businesses with stable product supply and enhanced aftersales support. Each CSM mini PC purchase entitles the customer to the ASUS Control Center IT-management software suite (CSM Edition, a $60 value)* that provides comprehensive control and monitoring. ASUS CSM products also include a stable roadmap and assured 36-month supply availability to ensure customers need not worry about material-supply gaps or extended supply.

Fully-tested for extreme reliability, wide compatibility and assured safety
Years of engineering expertise have gone into each VivoMini UN68U, with each unit being subjected to a series of reliability and quality tests to ensure they meet our exacting standards. It's engineered to cope with temperature extremes and is robust enough to withstand bumps and knocks during shipping.

- Windows 10 Home or other editions available Full-fledged desktop performance with the latest 8th Gen Intel® Core™ i7 or i5 Kaby Lake R processors & DDR4 2400MHz support Dual-storage design for additional storage capacity and flexibility NVM Express® support for blazingly fast SSD data transfers of up to 32Gbps Two easy-access front-mounted USB 3.1 Gen 2 ports with fast USB charging High-capacity HDD and Intel® Optane™ memory acceleration for high-speed data performance Quiet mini PC with energy-efficient performance — even under demanding loads ASUS Business Manager software for routine maintenance and servicing Lightning-fast 802.11ac Wi-Fi, with 100GB of free ASUS WebStorage space VESA-mount compatible for a tidy, clutter-free workstation Ultra-compact Good Design Award-winning design with a Zen-inspired spun-metal-effect finish and weighing less than 700g
