This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
Motherboard power connector | 20+4 pin ATX |
Floppy drive power connector | 1 |
Number of SATA power connectors | 8 |
Peripheral (Molex) power connectors (4-pin) | 3 |
PCI Express power connectors (6+2 pin) | 2 |
Cabling type | Modular |
Weight & dimensions | |
Height | 86 mm |
Width | 170 mm |
Depth | 150 mm |
Energy management | |
Nominal power | 550 W |
Efficiency | 90% |
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Power factor | 0.9 |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 100 W |
Combined power (+12V) | 550 W |
Combined power (+5V) | 100 W |
Combined power (-12V) | 3.5 W |
Combined power (+5Vsb) | 12.5 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V) | 45.84 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 2.5 A |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Total power | 550 W |
Maximum input current (@110V) | 8 A |
Maximum input current (@220V) | 4 A |
Certificates | |
80 PLUS certification | 80 PLUS Gold |
Design | |
Product colour | Black |
Number of fans | 1 fan(s) |
On/off switch | |
Cooling type | Active |
Fan diameter | 13.5 cm |
Performance | |
Safety | CE, FCC, TUV, BSMI, UL, CCC |
Noise level | 35 dB |
Purpose | PC |
Bearing technology | FDB |
ATX version | 2.4 |
EPS version | 2.92 |
Power supply unit (PSU) form factor | ATX |
EAN | 4713224520747 |
Warranty | 2 years |

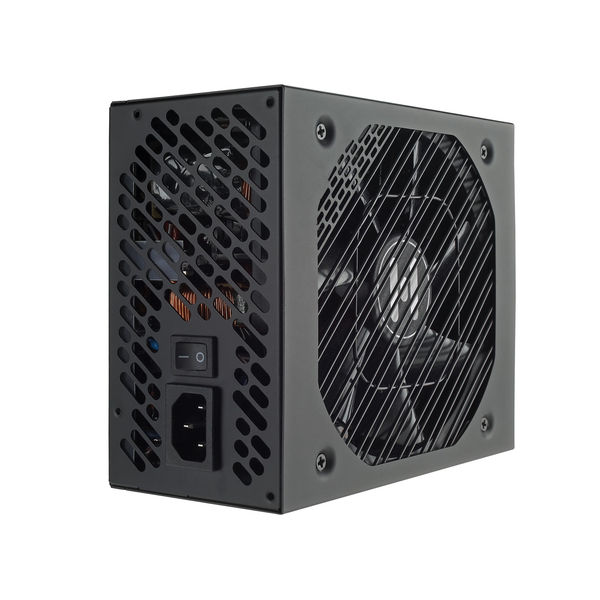

Hydro GE 80 Plus® Gold Power Supply is designed to maximize cooling efficiency with features such as a 135mm FDB fan with thermal control design, internal component arrangement for increased airflow, enhanced heat dissipation and efficient energy conversion. This Hydro GE series also features changeable logos that allow DIY enthusiasts to match the logo with the rest of the hardware.
Hydro GE series, 80 Plus® Gold Power Supply, is designed to reduces operating cost and excess heat and ensure solid power delivery and long term reliability, with 135mm FDB fan arrangement for increased airflow. Hydro GE series features changeable logos that allow DIY enthusiasts to match the logo with good-looking results.
Fully Modular Design with Ribbon Cable
The modular cable design simplifies installation and neat build, in choosing only those cables you needed.
Stylish in DIY Spirit
For DIY enthusiasts and gamers, Hydro GE series is the first power supply that features changeable logos, three kinds of changeable side stickers you can show your style and fit your preferences.
Stable DC to DC Output Quality
For maximum efficiency and stable voltage, Hydro GE series with DC to DC circuit design offers benefits such as better compatibility and reliablity, and high system compatibility especially in cross regulation mode.
80 Plus® Gold Certification
Hydro GE series is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
Low Noise and Durable Cooling Fan
Hydro GE series is built in 135mm FDB Fan, allows for little or decreased noise level during regular operation.
100% Japan-made E-Cap
Get the most reliability and greatest performance with the use of the highest quality Japan-made electrolytic capacitors for prolong lifespan.
