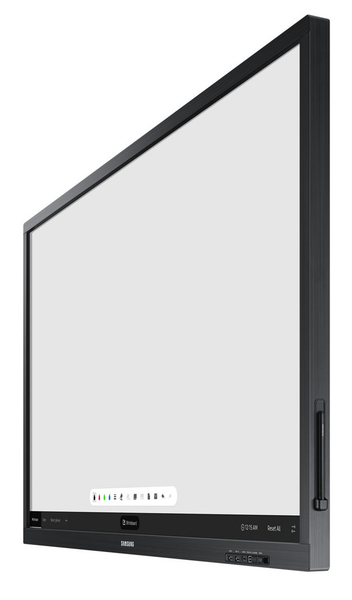

SAMSUNG 75inch QB75H-TR

Display
Contrast ratio (typical)	5000:1
Horizontal scan range	30 - 81 kHz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Vertical scan range	48 - 75 Hz
Display diagonal	190.5 cm (75")
Display brightness	250 cd/m²
Response time	6 ms
Display resolution	4K 3840 x 2160 pixels
Display diagonal (metric)	189 cm
Touchscreen
LED backlighting type	Direct-LED
Display type	LED
HD type	4K Ultra HD
Colour gamut	72%
Dynamic contrast ratio marketing name	Mega Contrast
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)
Ports & interfaces
Ethernet LAN
Ethernet LAN (RJ-45) ports	1
DVI port
DVI-D ports quantity	1
Wi-Fi
HDMI ports quantity	3
RS-232 interface
HDMI version	1.4/2.0
DisplayPorts quantity	1
USB version	2.0
USB ports quantity	3
RS-232C
USB port
Weight & dimensions
Weight	54.8 kg
Height	1012.1 mm
Width	1741.5 mm
Depth	86.8 mm
Energy management
Power consumption (typical)	265 W
Power consumption (standby)	0.5 W
Energy efficiency class	B
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Operational conditions
Operating relative humidity (H-H)	10 - 80%
Operating temperature (T-T)	0 - 40 °C
Packaging data
Package weight	68.4 kg
Package depth	467 mm
Package height	1152 mm
Package width	1865 mm
Certificates
Certification	FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
Packaging content
Cables included	AC
Other features
Safety	CB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 UL(USA) : cUL60950-1 CSA (Canada) : cUL TUV (Germany) : CE NEMKO (Norway) : CE
Video compression formats	AVC,AVS,H.263,H.264,HEVC,MPEG,MPEG1,MPEG2,MPEG4,VC-1,VP8,VP9
Glass protection
Design
Product colour	Black
Placement supported	Indoor
Panel mounting interface	400 x 400 mm
Product design	Digital signage flat panel
VESA mounting
Performance
TV tuner integrated
Purpose	Universal
Operating hours (hours/days)	16/7
Computer system
Processor model	A72
Processor family	ARM Cortex
Audio formats supported	AC3,MP3
Memory clock speed	1600 MHz
Operating system installed	Tizen 3.0
L2 cache	2048 KB
Processor cores	4
Video formats supported	AVC,AVS,H.263,H.264,HEVC,MPEG,MPEG1,MPEG2,MPEG4,MVC,VC-1,VP8,VP9
Internal storage capacity	8 GB
Processor frequency	1.7 GHz
Internal memory	3 GB
User memory	4.12 GB
Computer system
Computer system type	System on Chip (SoC)
EAN	8801643034979
Warranty	1 year
Source: Icecat.biz

Revitalize Productive Collaboration
QBH-TR e-boards offer a versatile, all-in-one arena for improved collaboration. Enhanced touch technology, the intuitive MagicIWB S5 solution and UHD picture quality come together to boost productivity and collaboration by facilitating engaging, efficient interaction.

Enhance Touch, Enhance Capacity
Leverage heightened touch functionality for a smooth and versatile digital writing experience. Up to four users can write simultaneously using the provided pen or virtually any other tool.

Elevate Collaboration Quality
The embedded MagicIWB S5 solution facilitates discussion management and organization with an intuitive interface for quick access to vital collaborative functionalities such as screen mirroring and real-time notation saving.

Switch Sources Seamlessly
Through the Working Screen function, users can quickly switch between multiple screens, such as the whiteboard, internet browser and connected input sources, with just a few touches.

Retrieve and Control Content Remotely
Pull and edit content on remote laptops directly through the central screen utilizing touch functionality. The powerful Knox system secures the Remote Workspace connection to protect against information leakage and meddling.

Connect with Convenience
Bring collaborative ideas to life through advanced UHD picture quality. Through ultra-high resolution, ensure all notations and introduced content are clear and legible for every participant.

Amplify Visual Presentation
Bring collaborative ideas to life through advanced UHD picture quality. Through ultra-high resolution, ensure all notations and introduced content are clear and legible for every participant.

Maintain Organization with Style

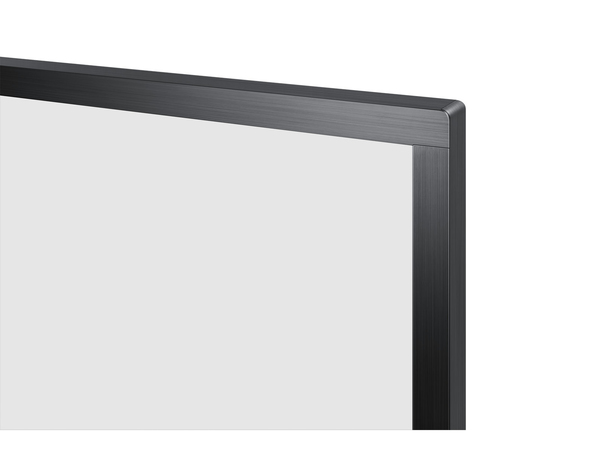

Drive more organized collaboration with a sleek, sophisticated design. The magnetic side pen holder and frontal connection ports keep needed functions within reach, without the mess.

- Heightened touch functionality for a smooth and versatile digital writing experience
- Intuitive interface for quick access to screen mirroring and real-time notation saving
- Working Screen function that enables users to toggle between multiple screens
- Distinct content clarity through advanced UHD picture quality
