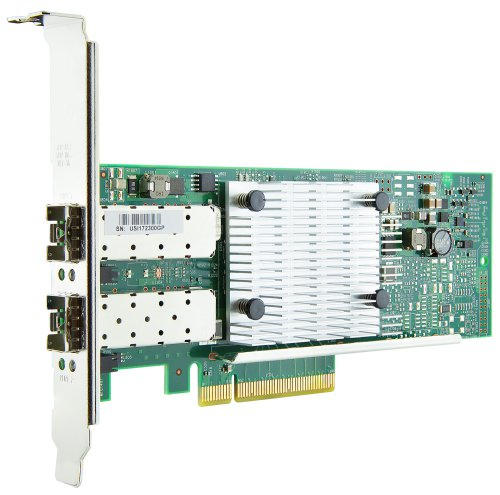

LENOVO DCG Broadcom NetXtreme Dual Port 10GbE SFP+ Adapter for LENOVO System x
This product is end of life or currently not available.
System requirements | |
Linux operating systems supported | Red Hat Enterprise Linux WS 5.0,SuSE Linux 11 |
Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2 |
Other operating systems supported | VMware vSphere ESXi |
Ports & interfaces | |
Interface | Ethernet / Fiber |
Connectivity technology | Wired |
Host interface | PCI Express |
Fiber ports quantity | 2 |
Fiber optic connector | SFP+ |
PCI version | 2.0 |
Weight & dimensions | |
Height | 69 mm |
Width | 17 mm |
Depth | 168 mm |
Operational conditions | |
Storage temperature (T-T) | -20 - 65 °C |
Operating temperature (T-T) | 0 - 55 °C |
Networking | |
Maximum data transfer rate | 10000 Mbit/s |
Networking standards | IEEE 802.1p,IEEE 802.3ae,IEEE 802.3x |
Jumbo frames support | |
Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
Ethernet interface type | 10 Gigabit Ethernet |
Design | |
Internal | |
Certification | EN55022 EN55024 EN60950 / CE EN 61000-3-2 EN 61000-3-3 ICES-003, Issue-004 IEC 950 CB Scheme FCC 47 CFR Part 15 Class A UL 1950 CSA C22.2 950-95 VCCI AS/NZSCISPR 22 / C-tick RRL for KC BSMI UL 94-/V |
Product colour | Green |
EAN | 883436501439 |
Warranty | 1 year |
Source: Icecat.biz |
Virtualization, cloud computing, high performance computing (HPC), and clustering initiatives are increasing workload demands. The Broadcom network adapter family is the solution of choice for workload-intensive computing environments, providing a reliable, high-performance 10 GbE connectivity solution.
These adapters support PCI-SIG single root input/output virtualization (SR-IOV) and NIC partitioning (NPAR). SR-IOV delivers higher performance and lower CPU utilization with increased virtual machine (VM) scalability.
QLogic NPAR enables up to four physical, switch-agnostic, switch-independent NIC partitions per adapter port. Dynamic and fine-grained bandwidth provisioning enables control of network traffic from VMs and hypervisor services.
