TS/Smarthub 500 i5 8 128 W10IOT

Technical details
Device type	SSD
Processor
Processor model	i5-7500T
Motherboard chipset	Intel Q270
Processor manufacturer	Intel
Processor lithography	14 nm
Processor family	Intel Core i5
Processor socket	LGA 1151
Processor cores	4
System bus rate	8 GT/s
Processor threads	4
PCI Express slots version	3.0
Processor operating modes	64-bit
Processor boost frequency	3.3 GHz
Processor cache	6 MB
Tjunction	80 °C
Bus type	DMI3
PCI Express configurations	2x8,1x8+2x4
Processor frequency	2.7 GHz
Thermal Design Power (TDP)	35 W
Processor codename	Kaby Lake
Maximum number of PCI Express lanes	16
Processor cache type	Smart Cache
Configurable TDP-down frequency	1.7 GHz
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM,DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
Memory channels supported by processor	Dual
ECC supported by processor
Memory voltage supported by processor	1.35 V
Conflict-Free processor
Memory
Internal memory type	DDR4-SDRAM
Memory slots	2
Maximum internal memory	8 GB
Memory clock speed	2400 MHz
Memory form factor	DIMM/SO-DIMM
Memory slots type	SO-DIMM
Memory layout (slots x size)	2 x 4 GB
Internal memory	8 GB
Display
Display diagonal	29.5 cm (11.6")
Display brightness	300 cd/m²
Display resolution	1920 x 1080 pixels
Touchscreen
LED backlight
Touch technology	Multi-touch
Native aspect ratio	16:9
HD type	Full HD
Panel type	WVA
Display surface	Matt
Screen shape	Flat
Audio
Built-in microphone
RMS rated power	4 W
Built-in speaker(s)
Number of speakers	2
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Microphone in
HDMI ports quantity	2
Combo headphone/mic port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Weight & dimensions
Width (with stand)	278.9 mm
Height (with stand)	178.4 mm
Depth (with stand)	193.2 mm
Weight (with stand)	2.5 kg
Energy management
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter power	90 W
Networking
Wi-Fi standards	802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Bluetooth version	4.1
Ethernet LAN
Antenna type	1x1
Bluetooth
Wi-Fi
Ethernet LAN data rates	10,100,1000 Mbit/s
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 8265
Storage
Drive capacity	128 GB
Optical drive type	N
Total storage capacity	128 GB
Card reader integrated
Number of SSDs installed	1
Storage media	SSD
Certificates
Certification	GREENGUARD, WEEE, ErP Lot 26
Operating system/software
Operating system installed	Windows 10 IoT Enterprise
Operating system architecture	64-bit
Operating system language	Danish, Finnish, Norwegian, Swedish
Camera
Built-in camera
Packaging content
Cables included	AC
Mouse included
Manual
Drivers included
Pen
Pen included
Other features
3D
Autonomy mode
Detachable display
Design
Product colour	Black
Graphics
On-board graphics card model	Intel® HD Graphics 630
Discrete graphics card model	Not available
On-board graphics card
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x5912
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
Discrete graphics card
On-board graphics card family
Processor special features
Supported instruction sets	AVX 2.0
Intel® Identity Protection Technology (Intel® IPT)
Intel® Hyper Threading Technology (Intel® HT Technology)
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology
Intel® InTru™ 3D Technology
Intel® Clear Video HD Technology (Intel® CVT HD)
Intel® AES New Instructions (Intel® AES-NI)
Enhanced Intel SpeedStep Technology
Execute Disable Bit
Idle States
Thermal Monitoring Technologies
Intel Trusted Execution Technology
Scalability	1S
CPU configuration (max)	1
Intel Enhanced Halt State
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Intel VT-x with Extended Page Tables (EPT)
Embedded options available
Intel TSX-NI
Intel® Secure Key
Thermal solution specification	PCG 2015A
Intel 64
Intel Stable Image Platform Program (SIPP)
Intel® OS Guard
Intel Virtualization Technology for Directed I/O (VT-d)
Intel Clear Video Technology
Intel Software Guard Extensions (Intel SGX)
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Virtualization Technology (VT-x)
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI version	1.00
Processor package size	37.5 x 37.5 mm
Processor ARK ID	97121
Performance
Trusted Platform Module (TPM)
Product type	All-in-One PC
EAN	192330317627
Warranty	3 years
Source: Icecat.biz

Because everyone's time is valuable
Meetings are time consuming enough without trying to get the technology to work properly. The average delay is around 10 minutes, but with the ThinkSmart Hub 500, you can avoid costly late starts. As audio and video is already connected, simply hit one button and everyone can begin collaborating right away.

A better way for teams to work together

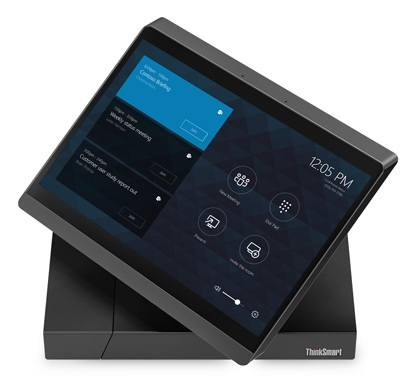

A key feature of the ThinkSmart Hub 500 is its eye-catching anti-glare, anti-smudge display. Rotatable through 360°, anyone within arm reach can take and give control instantly, enabling meetings to run more smoothly—and more fairly. There's also a 3-color LED ring that lets everyone in the room know the status of the call.

Simplify meetings, worldwide
Whether you're a host or attendee, the ThinkSmart Hub 500 will make your life easier. Designed with small to medium-sized conference rooms in mind, it's available in 180 countries. That way, everyone in your organization will be familiar with the system wherever your business takes them.

Enhanced security and manageability features
When it comes to security and practicality, the ThinkSmart Hub 500 has it covered. Windows 10 IoT Enterprise provides intelligent enterprise-grade protection, while the Intel vPro processor helps you to maintain remote devices, and the built-in Skype Room Systems app has a universal lockdown feature. Skype for Business is a universal locked-down app. In addition, an innovative cable management door secures physical ports and prevents cables being accidentally disconnected.
