Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Xeon® |
| Processor socket | LGA 2066 |
| Intel Xeon series | W3500, W5500 |
| Processor thermal power (max) | 140 W |
| Memory | |
| Maximum internal memory | 64 GB |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2400,2666 MHz |
| Supported memory types | DDR4 |
| Memory channels | Quad-channel |
| Maximum RDIMM memory | 64 GB |
| Number of memory slots | 8 |
| Weight & dimensions | |
| Width | 304.8 mm |
| Depth | 266.7 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Networking | |
| Wi-Fi standards | Not supported |
| Ethernet LAN |  |
| LAN controller | Intel I210 |
| Wi-Fi |  |
| Ethernet interface type | Gigabit Ethernet |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| CPU fan connector | |
| Number of COM connectors | 2 |
| ATX Power connector (24-pin) | |
| Number of chassis fan connectors | 5 |
| Power fan connector | |
| TPM connector | |
| EPS power connector (8-pin) | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 10 |

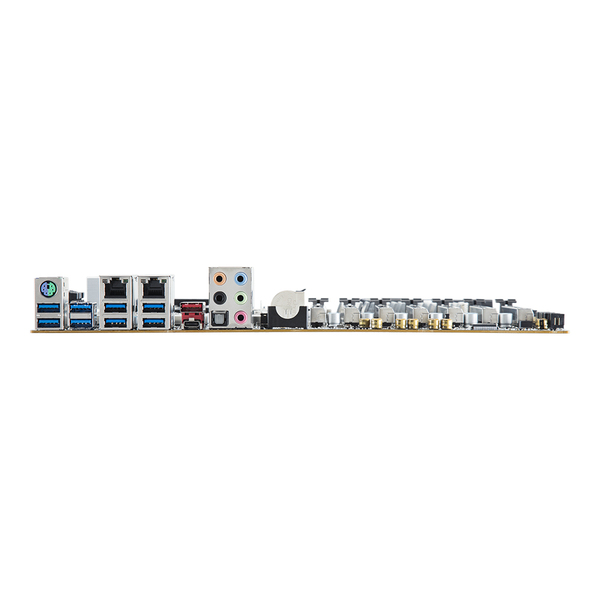

| Back panel I/O ports | |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Supported storage drive interfaces | SATA III |
| Packaging data | |
| Package depth | 330 mm |
| Package height | 80 mm |
| Package width | 360 mm |
| Packaging content | |
| Cables included | SATA |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 7 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
| Clear CMOS button | |
| Other features | |
| Audio output | Y |
| Number of DIMM slots | 8 |
| Quick installation guide | |
| Number of processors supported | 1 |
| Maximum LRDIMM memory | 64 GB |
| Graphics | |
| Parallel processing technology support | SLI |
| Discrete graphics support | |
| Processor special features | |
| Trusted Platform Module (TPM) | |
| Performance | |
| Motherboard chipset | Intel C422 |
| Motherboard form factor | ATX |
| Features | |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Component for | Server |
| Audio chip | Realtek ALC1150 |
| Motherboard | |
| Motherboard form factor | ATX |
| EAN | 4719331801946 |
| Warranty | 1 year |
Intel Xeon W Processors
Engineered For Your Enterprise
GIGABYTE brings Intel’s Skylake architecture to the SOHO segment with a new offering: the ‘Basin Falls’ single-socket platform for workstations. This new build offers a wealth of I/O options, including multiple PCIe lanes to support graphics, and other add-on card options, as well as direct SATA and USB ports.
GIGABYTE’s precision engineering enables you to fulfil your workstation workload needs with ease.
Add-On Modules
Onboard M.2
GIGABYTE’s MW51-HP0 platforms are designed to support on-board ‘M.2’ storage devices for time-sensitive operations and leaves room on the standard storage for compute tasks.
Delivering up to 32 Gb/s data transfer speeds through a PCIe connection, M.2 offers users considerably faster storage performance than current mSATA devices.
Compliant with four different M.2 form factors.
TPM 2.0 Header
GIGABYTE’s MW51-HP0 platform is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).
VROC Module
VROC Module Supplied For PCIe RAID Management
Carefully Selected Components
GIGABYTE’s passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. With some of the longest service lifetimes in the industry, our server motherboards build on 30 years’ company-wide experience in motherboard design to attain the highest reliability levels.
GIGABYTE BMC Interface
Easy BIOS Upgrade
GIGABYTE has developed this integrated function (requiring no additional software) that allows users to update the BIOS of motherboards through the BMC controller:
- No need to install core components such as CPUs, memory, drives and OS
- No need to power on the system (NB. PSU must be connected)
- Update individual (IPMI 2.0) or multiple boards simultaneously (Command Line)
Environmental Compliance
GIGABYTE maintains its commitment to green products, and adheres to the latest RoHS regulations (in effect July 2017).
Engineered For Your Enterprise
GIGABYTE brings Intel’s Skylake architecture to the SOHO segment with a new offering: the ‘Basin Falls’ single-socket platform for workstations. This new build offers a wealth of I/O options, including multiple PCIe lanes to support graphics, and other add-on card options, as well as direct SATA and USB ports.
GIGABYTE’s precision engineering enables you to fulfil your workstation workload needs with ease.
Add-On Modules
Onboard M.2
GIGABYTE’s MW51-HP0 platforms are designed to support on-board ‘M.2’ storage devices for time-sensitive operations and leaves room on the standard storage for compute tasks.
Delivering up to 32 Gb/s data transfer speeds through a PCIe connection, M.2 offers users considerably faster storage performance than current mSATA devices.
Compliant with four different M.2 form factors.
TPM 2.0 Header
GIGABYTE’s MW51-HP0 platform is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).
VROC Module
VROC Module Supplied For PCIe RAID Management
Carefully Selected Components
GIGABYTE’s passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. With some of the longest service lifetimes in the industry, our server motherboards build on 30 years’ company-wide experience in motherboard design to attain the highest reliability levels.
GIGABYTE BMC Interface
Easy BIOS Upgrade
GIGABYTE has developed this integrated function (requiring no additional software) that allows users to update the BIOS of motherboards through the BMC controller:
- No need to install core components such as CPUs, memory, drives and OS
- No need to power on the system (NB. PSU must be connected)
- Update individual (IPMI 2.0) or multiple boards simultaneously (Command Line)
Environmental Compliance
GIGABYTE maintains its commitment to green products, and adheres to the latest RoHS regulations (in effect July 2017).
