| Technical details | |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Xeon® |
| Processor socket | LGA 2011 |
| Intel Xeon series | E5-2600 |
| Memory | |
| Maximum internal memory | 64 GB |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 1600,1866,2133,2400 MHz |
| Supported memory types | DDR4 |
| Memory channels | Quad-channel |
| Maximum RDIMM memory | 32 GB |
| Number of memory slots | 16 |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 330 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Networking | |
| Wi-Fi standards | Not supported |
| Ethernet LAN |  |
| LAN controller | Intel I210 |
| Wi-Fi |  |
| Ethernet interface type | Gigabit Ethernet |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| CPU fan connector | |
| ATX Power connector (24-pin) | |
| Chassis intrusion connector | |
| Number of chassis fan connectors | 5 |
| TPM connector | |
| EPS power connector (8-pin) | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 10 |
| Serial port headers | 1 |
| Integrated SAS ports | 2 |

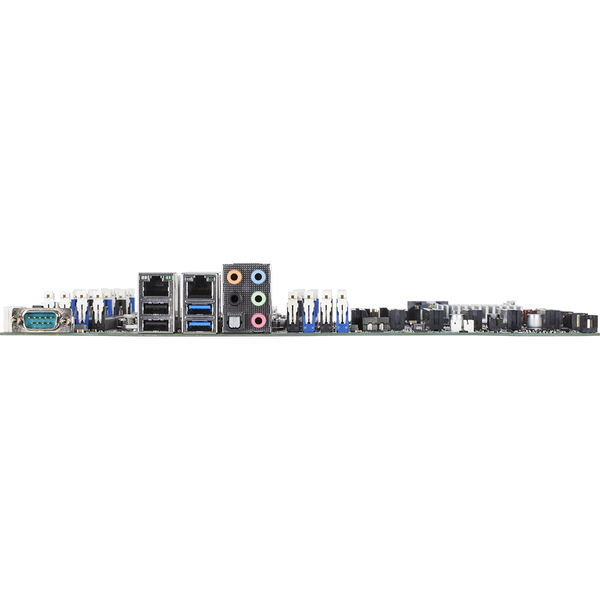

| Back panel I/O ports | |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Storage controllers | |
| RAID levels | 0, 1, 1E, 5, 10 |
| RAID support | |
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
| Packaging data | |
| Package depth | 600 mm |
| Package height | 495 mm |
| Package width | 473 mm |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 3 |
| BIOS | |
| Clear CMOS button | |
| Other features | |
| Audio output | Y |
| DVI port | |
| Number of DIMM slots | 16 |
| Number of processors supported | 2 |
| Maximum LRDIMM memory | 64 GB |
| PCI Express x8 (Gen 3.x) slots | 3 |
| Graphics | |
| Parallel processing technology support | SLI |
| On-board graphics card model | Aspeed AST2400 |
| Discrete graphics support | |
| Processor special features | |
| Trusted Platform Module (TPM) | |
| Features | |
| Motherboard chipset | Intel C612 |
| Motherboard form factor | Extended ATX |
| Audio output channels | 7.1 channels |
| Component for | Server |
| Audio chip | Realtek ALC887 |
| EAN | 4719331812256 |
| Warranty | 1 year |
