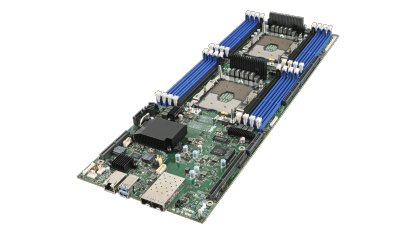

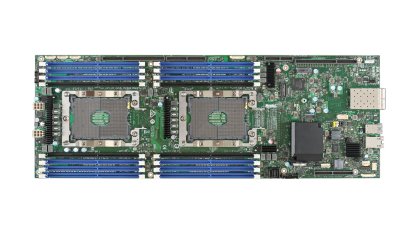

Intel Compute Module HNS2600BPS - Palvelin - blade - 2-teinen - RAM 0 MB - ei kiintolevyä - GigE, 10 GigE - monitori: ei ole
Manufacturer: INTEL
ID: HNS2600BPS
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Technical details | |
Form factor | Custom 6.8" x 19.1" |
USB ports quantity | 2 |
Product type | Server/Workstation Board |
Status | Launched |
Launch date | Q3'17 |
Supported RAID configuration | RAID Levels 0/1/10/5/50 (LSI) |
Expected discontinuance date | Q3'19 |
Riser slot 1 number of lanes | 16 |
Riser slot 2 number of lanes | 24 |
Target market | High Performance Computing |
Additional information URL | http://www.intel.com/content/www/us/en/data-center-blocks/hpc/hpc-compute-blocks.html?cache=no |
Extended warranty available for purchase (select countries) | |
Processor | |
Processor manufacturer | Intel |
Processor socket | P |
Number of processors supported | 2 |
Processor number of cores supported | 4,6,8,10,12,14,16,18,20,22 |
CPU configuration (max) | 2 |
Number of QPI links | 2 |
Thermal Design Power (TDP) | 165 W |
Maximum number of PCI Express lanes | 80 |
Maximum internal memory supported by processor | 1280 GB |
Memory bandwidth supported by processor (max) | 255.94 GB/s |
ECC supported by processor | |
Product family | Intel compute module |
Product series | Intel® Compute Module HNS2600BP Family |
Product codename | Buchanan Pass |
Memory | |
Maximum internal memory | 1280 GB |
ECC | |
Number of DIMM slots | 16 |
Supported memory clock speeds | 2133,2400,2666 MHz |
Supported memory types | DDR4 |
Memory channels | Dodeca-channel |
Supported RDIMM clock speeds | 2133,2400,2666 MHz |
Supported LRDIMM clock speeds | 2133,2400,2666 MHz |
Weight & dimensions | |
Width | 172.7 mm |
Depth | 485.1 mm |
Networking | |
Ethernet LAN | |
Wi-Fi | |
Ethernet interface type | Gigabit Ethernet |
Internal I/O | |
Number of SATA connectors | 4 |
Total number of SATA connectors | 4 |
Back panel I/O ports | |
Serial ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 2 |
VGA (D-Sub) ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Storage controllers | |
HDD interface | SATA |
RAID levels | 0,1,5,10,50 |
Supported storage drive interfaces | SATA |
Packaging content | |
Packaging content | (1) 1U node tray(1) Intel Server Board S2600BPS(1) Power Docking Board FHWBPNPB(3) 40x56mm dual rotor managed fans FXX4056DRFAN2(1) 1U passive Rear heat sink – CPU #1 – CuAL – FXXHP78X108HS(1) 1U passive heat sink – CPU #2 – AL – FXXEA78X108HS(1) Air duct(1) External VGA port bracket (1) Slot 2 riser card w/80mm M.2 SSD slot. Required Items – Sold Separately:One (1) bridge board option - AHWBPBGB, AHWBP12GBGB, AHWBP12GBGBR5 OR AHWBP12GBGBIT; One or two Intel Xeon Scalable family,Up to Sixteen (16) DDR4 RDIMM/LRDIMM |
Expansion slots | |
PCI Express slots version | 3.0 |
PCI Express x16 (Gen 3.x) slots | 2 |
BIOS | |
BIOS type | UEFI |
Other features | |
Number of DIMM slots | 16 |
Supported RDIMM clock speeds | 2133,2400,2666 MHz |
Number of processors supported | 2 |
CPU configuration (max) | 2 |
Embedded options available | |
Thermal Design Power (TDP) | 165 W |
Graphics output | VGA |
Motherboard ARK ID | 96349 |
Graphics | |
On-board graphics card | |
Graphics output | VGA |
Processor special features | |
Trusted Platform Module (TPM) | |
Intelligent Platform Management Interface (IPMI) support | |
Intel Fast Memory Access | |
Intel Flex Memory Access | |
Intel® AES New Instructions (Intel® AES-NI) | |
Intel Trusted Execution Technology | |
Intel I/O Acceleration Technology | |
Intel Advanced Management Technology | |
Intel Intelligent Power Node Manager | |
Integrated systems available | |
Embedded options available | |
Intel Rapid Storage Technology | |
Low halogen options available | |
Trusted Platform Module (TPM) version | 2.0 |
Intel Server Management Software | |
Intel Remote Management Module Support | Y |
Integrated BMC with IPMI | |
Intel Server Customization Technology | |
Intel Build Assurance Technology | |
Intel Quiet Thermal Technology | |
Intel Efficient Power Technology | |
Intel Rapid Storage Technology enterprise | |
Intel Virtualization Technology for Directed I/O (VT-d) | |
Intel® Optane™ Memory Ready | |
Features | |
Motherboard chipset | Intel C622 |
Chassis type | 2U Rack |
Compatible operating systems | Windows Server 2016*, Windows Server 2012 R2*, Red Hat Enterprise Linux 7.3*, SUSE Linux Enterprise Server 12 SP2*, CentOS 7.3* |
Trusted Platform Module (TPM) | |
Component for | Server |
InfiniBand | |
Rack-Friendly board | |
Trusted Platform Module (TPM) version | 2.0 |
Embedded USB (eUSB) SSD option | |
Physical Address Extension (PAE) | 50 bit |
Product family | Intel compute module |
Product series | Intel® Compute Module HNS2600BP Family |
Product codename | Buchanan Pass |
EAN | 0735858342926 |
Warranty | 1 year |
A hot-pluggable high-density compute module integrated with the Intel® Server Board S2600BPS for large memory capability and flexible configuration options for the Intel® Server Chassis H2312XXLR3.
