This product is end of life or currently not available.
Processor | |
Processor model | C3538 |
Processor manufacturer | Intel |
Processor lithography | 14 nm |
Processor family | Intel Atom |
Processor socket | BGA 1310 |
Stepping | B1 |
Processor cores | 4 |
Processor code | SR3L7 |
Processor threads | 4 |
PCI Express slots version | 3.0 |
Processor operating modes | 64-bit |
Processor boost frequency | 2.1 GHz |
Processor cache | 8 MB |
CPU configuration (max) | 1 |
Tcase | 87 °C |
Tjunction | 100 °C |
Processor frequency | 2.1 GHz |
Thermal Design Power (TDP) | 15 W |
Processor codename | Denverton |
Processor cache type | Smart Cache |
Maximum internal memory supported by processor | 256 GB |
ECC supported by processor | |
Processor package size | 34 x 28 mm |
Conflict-Free processor | |
Memory | |
Internal memory type | DDR4 |
Memory slots | 4 |
Maximum RAM supported | 64 GB |
Internal memory | 4 GB |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 4 |
PCI Express x8 (Gen 3.x) slots | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB port | |
Weight & dimensions | |
Weight | 13.8 kg |
Height | 88 mm |
Width | 482 mm |
Depth | 724 mm |
Energy management | |
Power consumption (typical) | 119.6 W |
Number of power supply units | 2 |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100-240 V |
Power supply unit (PSU) capacity | 500 W |
Operational conditions | |
Operating relative humidity (H-H) | 5 - 95% |
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | 5 - 35 °C |
Networking | |
Ethernet LAN | |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
iSCSI support | |
Storage | |
RAID levels | 0, 1, 5, 6, 10, JBOD |
Supported file systems | BTRFS, Fat, HFS+, NTFS |
RAID support | |
Storage drive size | 2.5/3.5" |
Storage drive interface | M.2, Serial ATA |
Number of storage drives supported | 24 |
Storage drive sizes supported | 2.5,3.5" |
Storage drives installed | |
Maximum supported storage capacity | 288 TB |
Installed storage drive type | |
Supported storage drive types | HDD & SSD |
Hot-swap drive bays | |
Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
Certificates | |
Certification | EAC VCCI CCC RCM FCC CE BSMI |
Operating system/software | |
Windows operating systems supported | |
Linux operating systems supported | |
Other features | |
Processor ARK ID | 97929 |
Design | |
Chassis type | Rack (2U) |
LED indicators | |
Product colour | Black, Grey |
Number of fans | 4 fan(s) |
Cooling type | Active |
Fan diameter | 8 cm |
Fan diameter 2 | 8 cm |
Processor special features | |
Intel® Hyper Threading Technology (Intel® HT Technology) | |
Intel® Turbo Boost Technology | |
Intel® AES New Instructions (Intel® AES-NI) | |
Execute Disable Bit | |
Intel VT-x with Extended Page Tables (EPT) | |
Embedded options available | |
Intel® Secure Key | |
Intel® OS Guard | |
Intel QuickAssist Technology | |
Intel Virtualization Technology for Directed I/O (VT-d) | |
Maximum number of PCI Express lanes | 12 |
Intel Secure Boot | |
Intel Secure Key Technology version | 1.00 |
Intel Secure Boot Technology version | 1.00 |
Intel Virtualization Technology (VT-x) | |
Memory types supported by processor | DDR4-SDRAM |
Memory channels supported by processor | Dual |
Performance | |
Type | NAS |
Security algorithms | 256-bit AES |
Noise level | 54.1 dB |
Reset button | |
On/off switch | |
EAN | 4711174722563 |
Warranty | 3 years |
Source: Icecat.biz |
High-capacity and scalable NAS designed for businesses with flexible storage and M.2 SSD expandability
Scalable Storage Server On-Demand

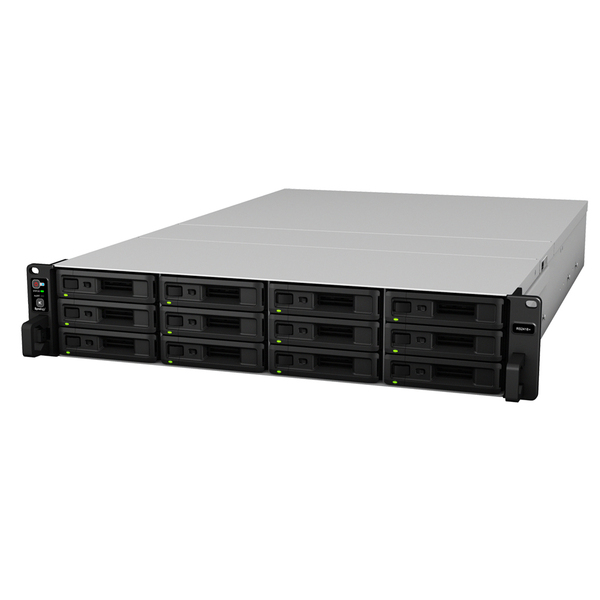

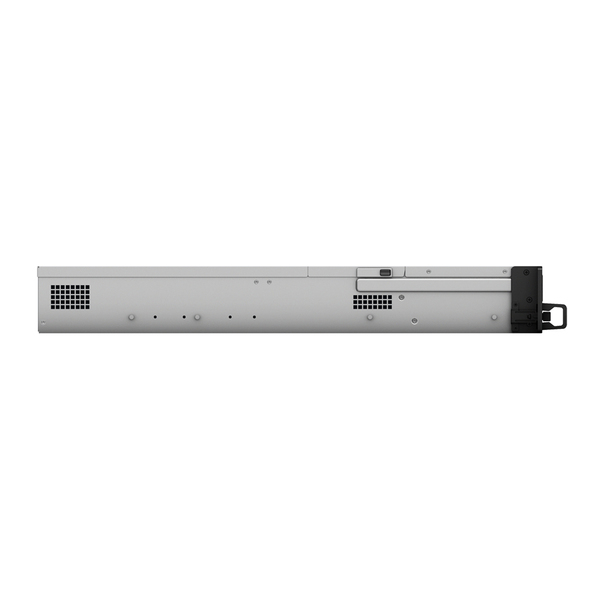

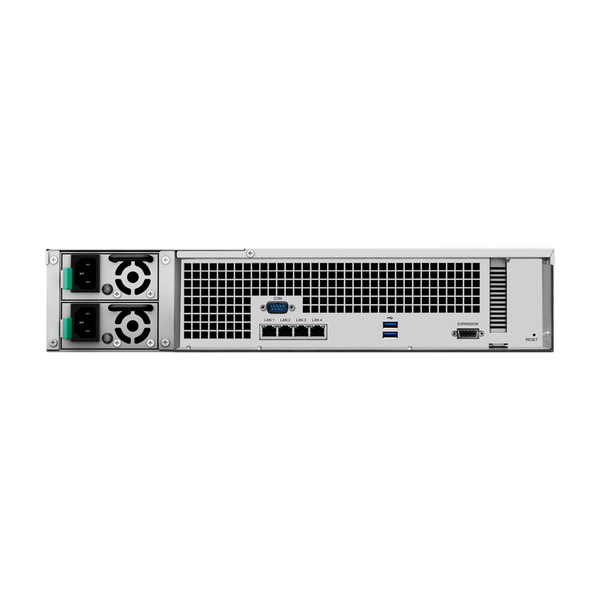

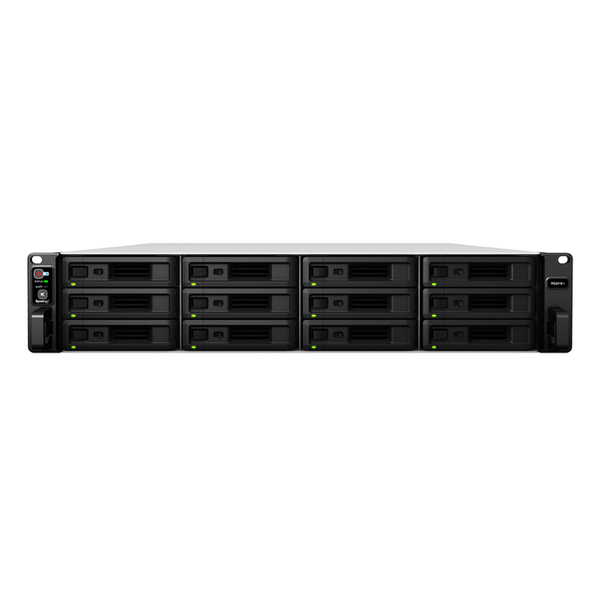

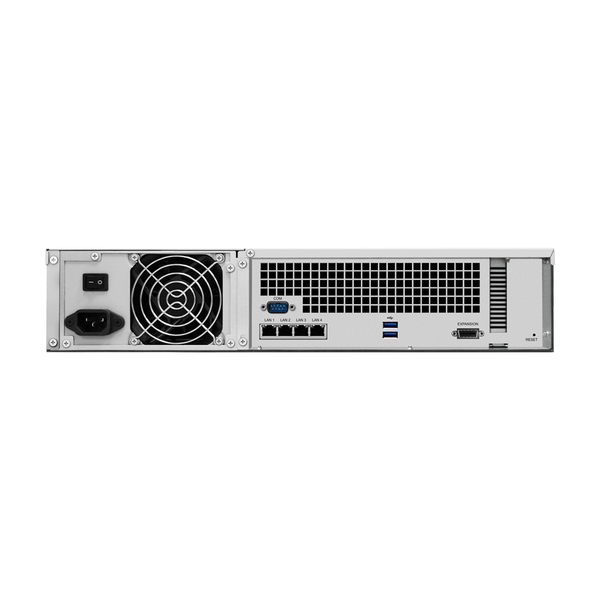

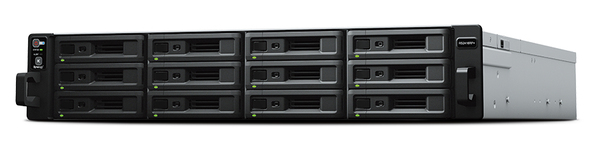

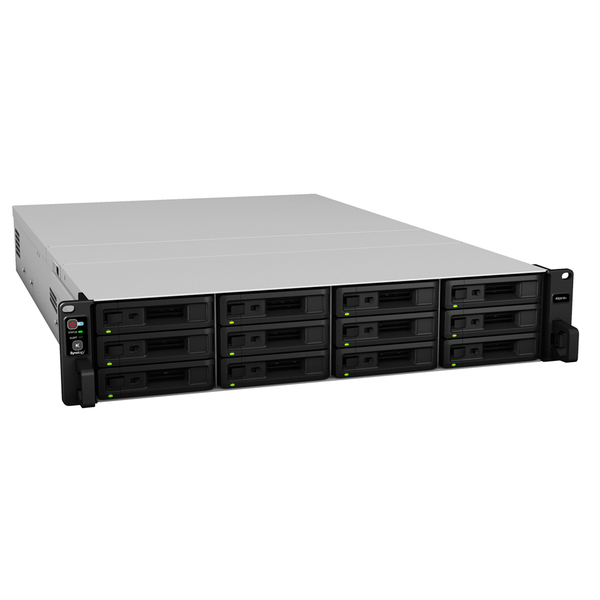

RS2418+/RS2418RP+ is an ideal storage solution for small- and medium-sized businesses with great flexibility in terms of expandable storage capacity, upgradable memory, and optional high-speed NIC or M.2 SSD cache support. It serves perfectly as a centralized file server, backup target for distributed businesses, or backup target for employee workstations in a growing business.
Boost your storage performance with easy-to-install add-in cards
Equipped with a PCIe 3.0 slot, RS2418+ supports installing an M.2 SSD adapter card or 10GbE NIC for a high-IOPS system cache and ultra-fast data transmission.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
File or folder level data restoration makes data recovery fast and flexible
Automatic file self-healing detects and recovers corrupted files without user intervention
Ultimate Backup Solution
RS2418+ integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.
Active Backup for Server
An agentless backup solution protects data from Windows and Linux servers through SMB and Rsync to minimize deployment and management costs.
Hyper Backup
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Desktop Backup
Safeguard your PC with Cloud Station Backup. Effortlessly back up data stored on macOS to Synology NAS with Time Machine.
Active Backup for
Office 365/ G Suite
Protect corporate data stored on the cloud. On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Digital asset protection
Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes.
Security Advisor
Analyzes system settings, password strength, network preferences, and removes any possible malware.
AppArmor
A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.
AES 256-bit encryption
Encrypt shared folders and network data transmission to keep data from unauthorized access.
2-step verification
Prevent others from logging in to your DSM by generating a one-time password (OTP) on your mobile device.
Trust Level
Customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered package files.
DSM UI
Award-winning operating system with an intuitive user interface and powerful capabilities.
Public Cloud Integration
Backup and synchronize data easily between your public cloud accounts and your NAS.
High Availability
Ensures seamless service transition between clustered servers in the event of a server failure.
Drive
A versatile solution for file management and synchronization.
Snapshot Replication
Provides schedulable and instantaneous data protection for shared folders and virtual machines on iSCSI LUNs in the event of disaster.
VMM
Run various operating systems in isolated sandboxes. Seamlessly clone, restore and migrate virtual machines.
