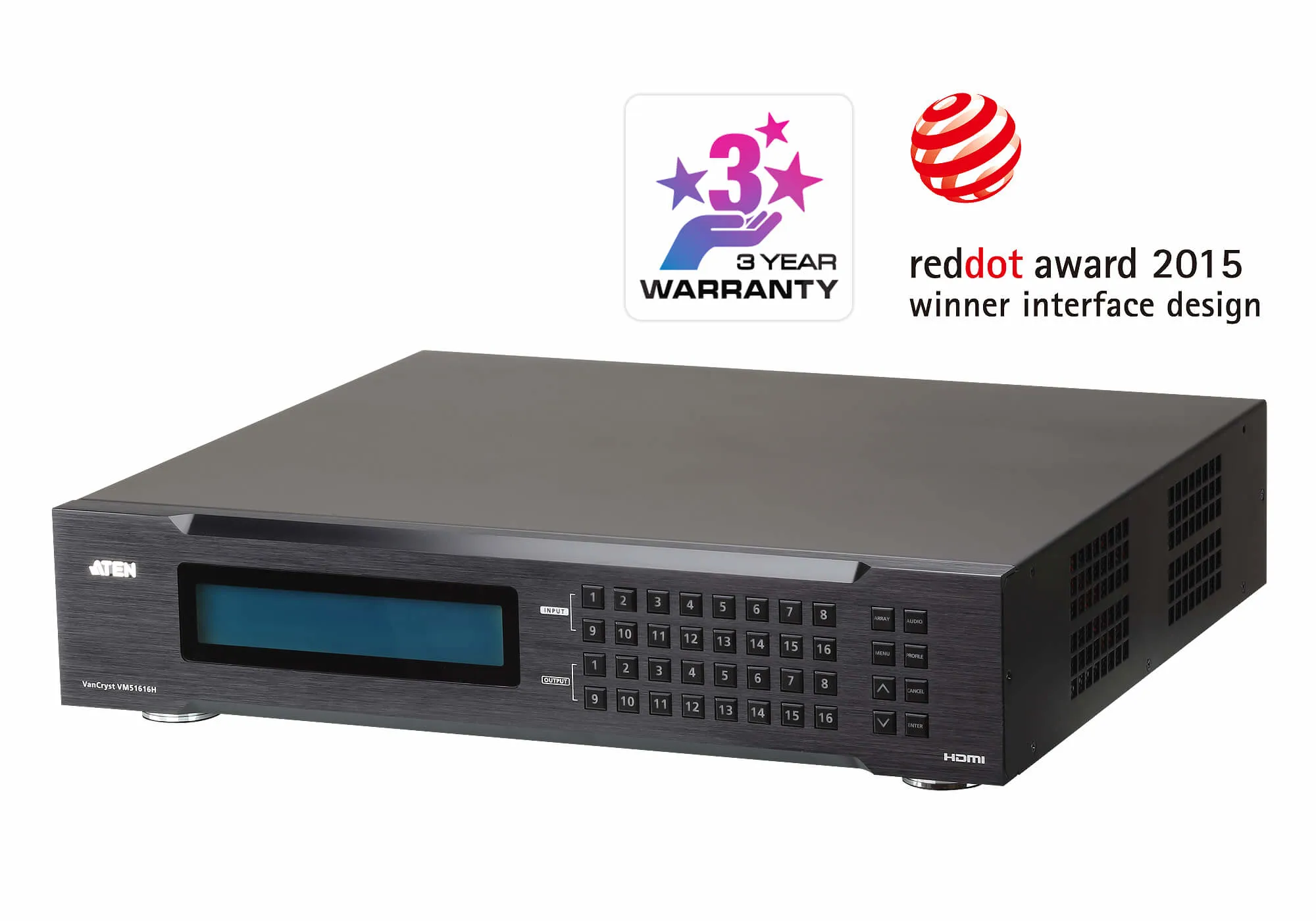

ATEN 16x16 HDMI Matrix Switch + Videowall + Scaler and seamless switch
Manufacturer: ATEN
ID: VM51616H-AT-G
1536690€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Specifications
Description
Store availability
Delivery
Price development
| Technical details | |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| RS-232 ports | 1 |
| RJ-45 input ports | 1 |
| 16 | |
| Weight & dimensions | |
| Weight | 8.09 kg |
| Package weight | 9.79 kg |
| Height | 88 mm |
| Width | 381.8 mm |
| Depth | 432.4 mm |
| Package depth | 575 mm |
| Package height | 175 mm |
| Package width | 505 mm |
| Energy management | |
| Input current | 1 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 124.5 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
| Cables included | AC |
| Rack mount kit |  |
| Design | |
| Rack mounting | |
| LED indicators | |
| Rack capacity | 2U |
| Housing material | Metal |
| Housing colour | Black |
| Features | |
| Data transfer rate | 6.75 Gbit/s |
| Maximum resolution | 1920 x 1080 pixels |
| HDCP | |
| 3D | |
| HDCP version | 1.4 |
| Product type | Scaling matrix switcher |
| Extended display identification data (EDID) | |
| EDID management | |
| Logistics data | |
| Master (outer) case height | 175 mm |
| Master (outer) case width | 505 mm |
| Master (outer) case gross weight | 9.79 kg |
| Master (outer) case length | 575 mm |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case net weight | 8.09 kg |
| Harmonized System (HS) code | 85299097 |
| EAN | 4719264646072 |
| Warranty | 2 years |
| Source: Icecat.biz | |

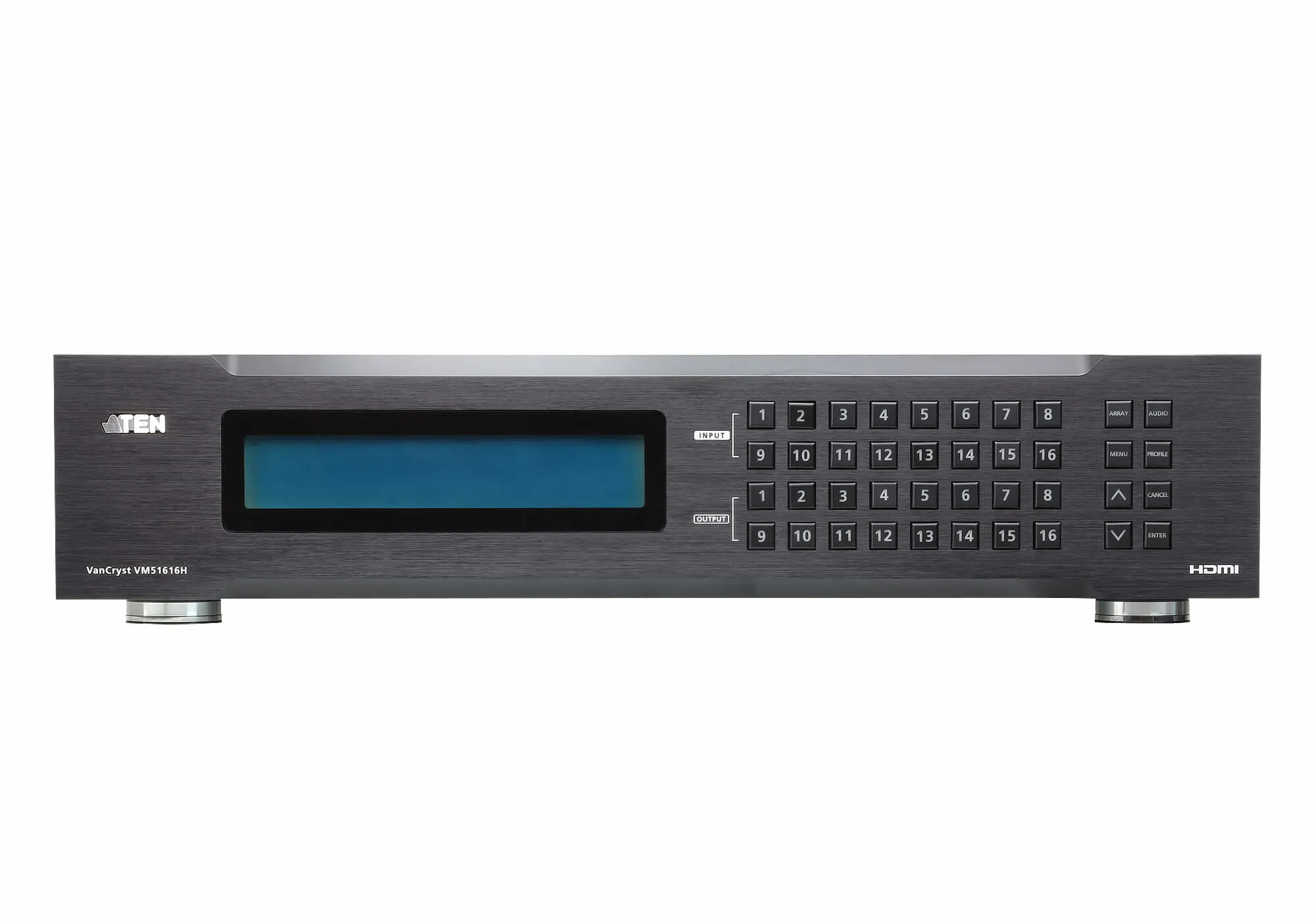

The VM51616H is a 16 x 16 HDMI Matrix Switch that offers an easy and affordable way to route any of 16 HDMI video and audio sources to 16 HDMI displays, with a quick view of all port connections via the front panel LCD or local HDMI output for multiple source preview.
1x VM51616H 16 x 16 HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x Rack Mounting Kit
1x User Instructions
