| Ports & interfaces | |
| DC-in jack |  |
| Video port type | HDMI |
| RS-232 ports | 1 |
| HDMI ports quantity | 8 |
| HDMI version | 2.0 |
| HDMI in | 8 |
| Number of HDMI outputs | 1 |
| Weight & dimensions | |
| Weight | 2.42 kg |
| Height | 44 mm |
| Width | 158.3 mm |
| Depth | 437.2 mm |
| Energy management | |
| Power consumption (typical) | 3.73 W |
| AC adapter input voltage | 5.3 V |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging data | |
| Package weight | 2.87 kg |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package width | 116 mm |
| Packaging content | |
| AC adapter included | |
| Mounting kit | |
| Features | |
| Material | Metal |
| Maximum resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Maximum operating distance | 3 m |
| Bandwidth | 600 MHz |
| Input impedance | 100 Ω |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| HDCP | |
| Output impedance | 100 Ω |
| Maximum refresh rate | 60 Hz |
| 3D | |
| HDCP version | 2.2 |
| HD type | 4K Ultra HD |
| Consumer Electronics Control (CEC) support | |
| Logistics data | |
| Master (outer) case height | 258 mm |
| Master (outer) case width | 375 mm |
| Master (outer) case gross weight | 9.5 kg |
| Master (outer) case length | 565 mm |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case net weight | 7.26 kg |
| Harmonized System (HS) code | 85176990 |
| EAN | 4719264646300 |
| Warranty | 2 years |
| Source: Icecat.biz | |

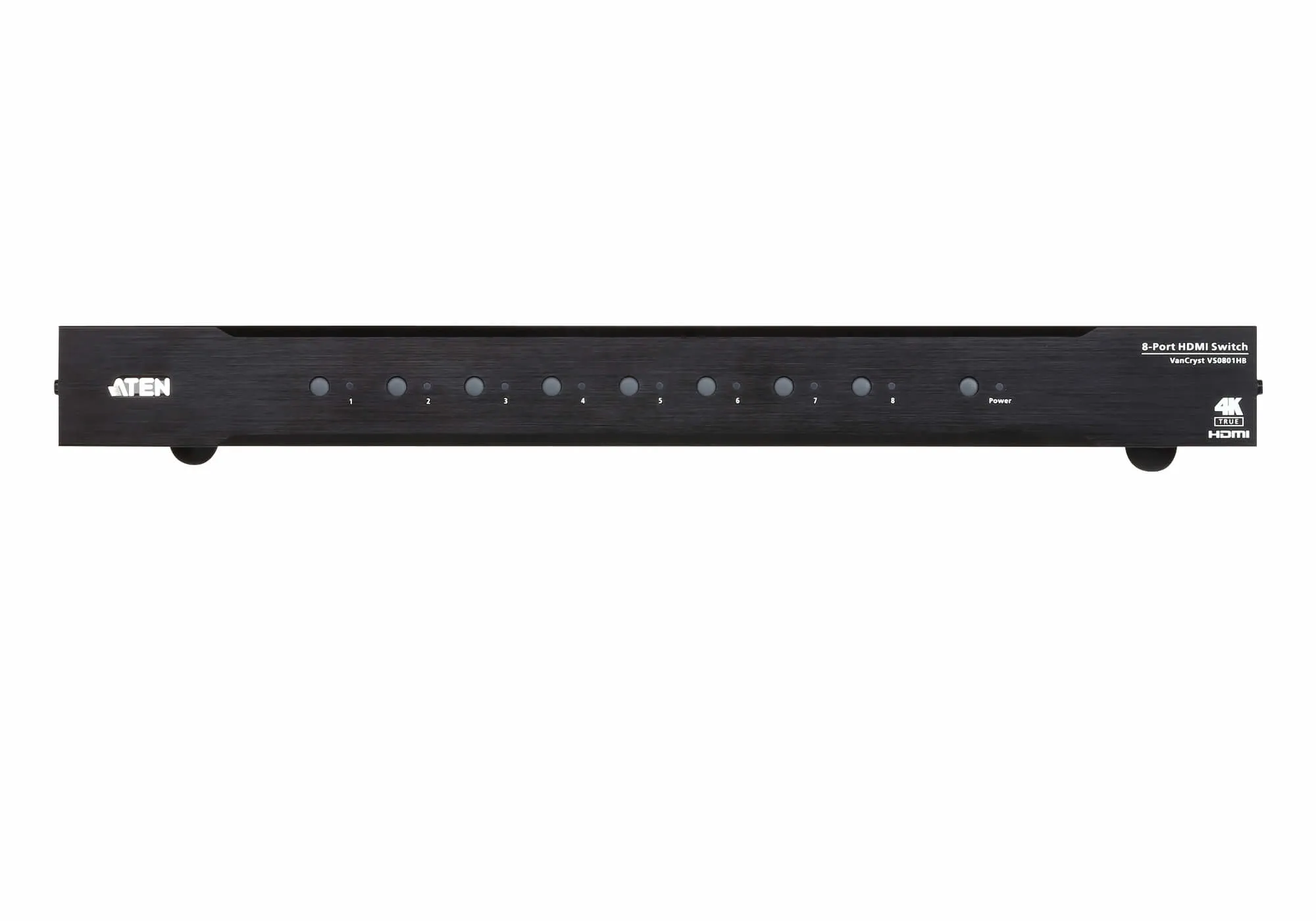

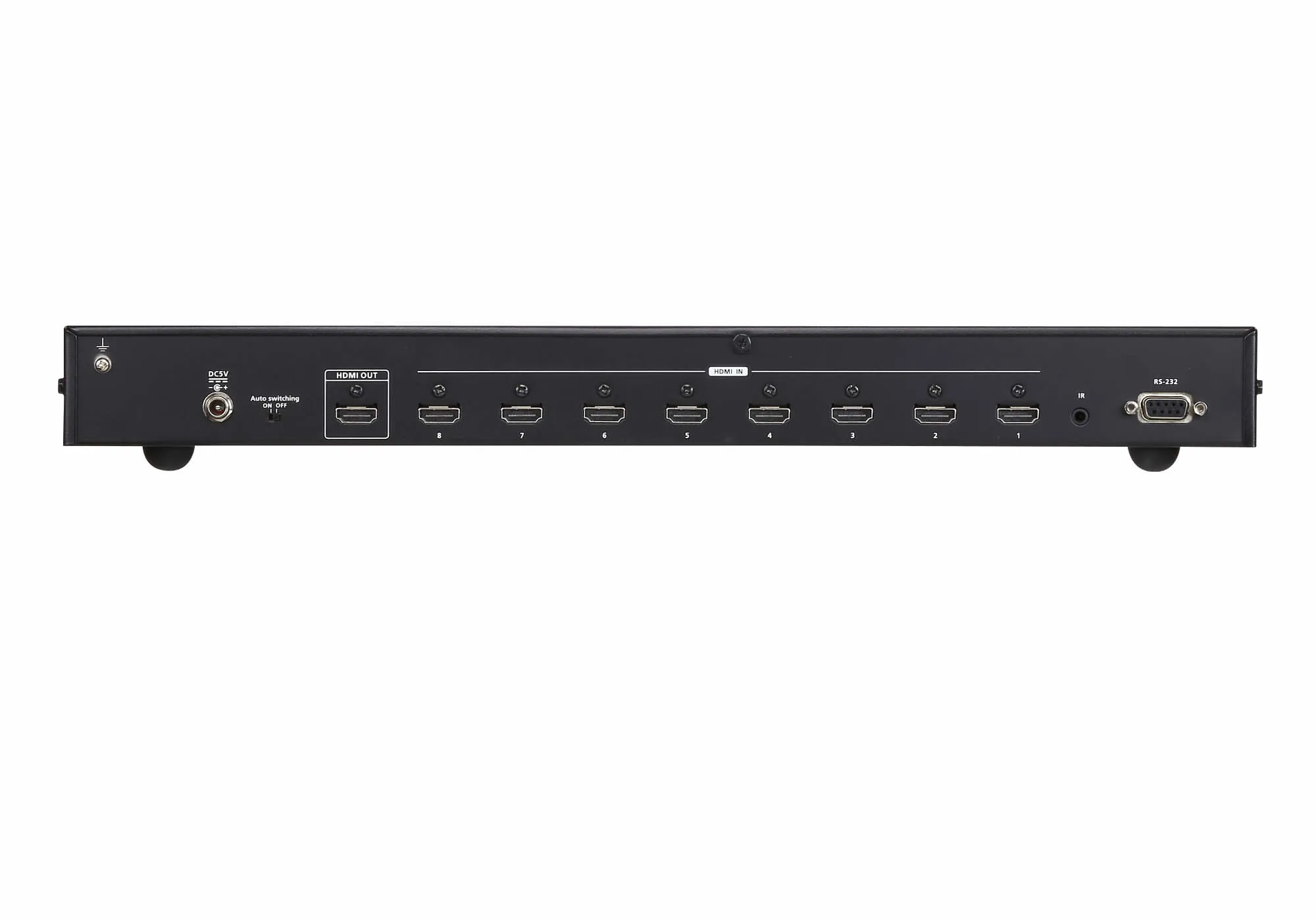

The ATEN VS0801HB is designed for applications that require the routing of 8 sources to one compatible display device. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. The VS0801HB features Auto Switching modes for auto port selection. Multiple convenient control options include front panel pushbuttons, bi-directional RS-232, IR, and auto switch, allowing for easy integration.
1x VS0801HB 8-port True 4K HDMI Switch
1x 2XRT-0007G IR Remote Control Unit
1x 2XRT-0003G IR Receiver Cable
1x 0AD6-1F05-26EG Power Adapter
1x Rack Mounting Kit
1x User Instructions
1x VS0801HB 8-port True 4K HDMI Switch
1x 2XRT-0007G IR Remote Control Unit
1x 2XRT-0003G IR Receiver Cable
1x 0AD6-1F05-26EG Power Adapter
1x Rack Mounting Kit
1x User Instructions
