No price development information for this product.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Processor | |
Processor manufacturer | Intel |
Maximum number of SMP processors | 1 |
Compatible processor series | 8th Gen Intel Core Processors |
Processor family | Intel |
Processor socket | LGA 1151 |
Memory | |
Maximum internal memory | 32 GB |
ECC | |
Non-ECC | |
Supported memory clock speeds | 2666, 2400, 2133 |
Supported memory types | DDR4 |
Memory channels | Dual |
Unbuffered memory | |
Memory slots type | DIMM |
Number of memory slots | 2 |
Weight & dimensions | |
Width | 170 mm |
Depth | 170 mm |
Networking | |
Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
Bluetooth version | 5.0 |
Ethernet LAN | |
Bluetooth | |
Wake-on-LAN ready | |
LAN controller | Intel I219V |
Wi-Fi | |
Internal I/O | |
USB 2.0 connectors | 1 |
CPU fan connector | |
ATX Power connector (24-pin) | |
Number of EATX power connectors | 1 |
Number of chassis fan connectors | 1 |
Front panel audio connector | |
EPS power connector (8-pin) | |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Number of SATA III connectors | 6 |
Clear CMOS button | |
Audio connector | |
Number of M.2 (M) slots | 2 |
12V power connector | |

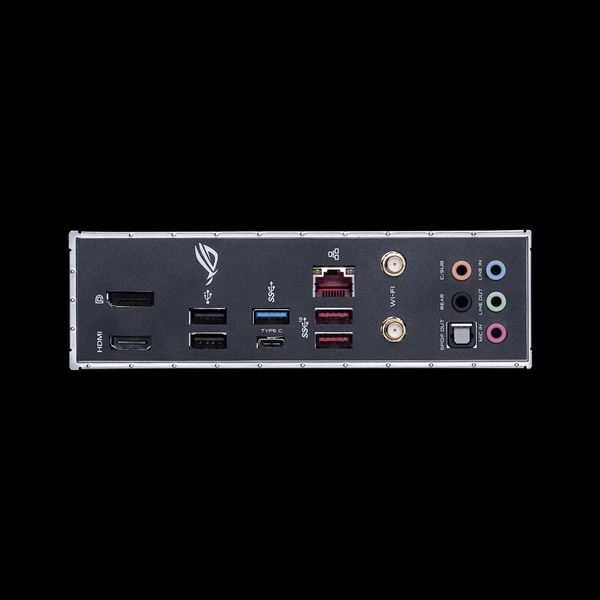

Back panel I/O ports | |
USB 2.0 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
S/PDIF out port | |
HDMI ports quantity | 1 |
HDMI version | 1.4b |
DisplayPorts quantity | 1 |
DisplayPort version | 1.2 |
Analog audio output | 5 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |

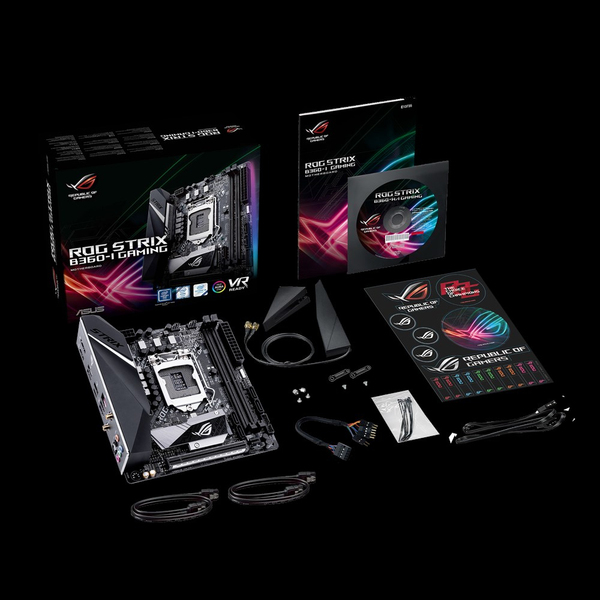

Packaging content | |
Cables included | SATA |
Manual | |
Drivers included | |
Expansion slots | |
PCI Express x16 (Gen 3.x) slots | 1 |
BIOS | |
Plug and Play | |
BIOS memory size | 128 MB |
BIOS type | UEFI AMI |
ACPI version | 6.1 |
Clear CMOS jumper | |
Graphics | |
Maximum graphics card memory | 1024 MB |
Maximum resolution | 4096 x 2304 pixels |
Graphics card family | Intel |
Processor special features | |
Intel Extreme Memory Profile (XMP) | |
Performance | |
Motherboard chipset | Intel B360 |
Audio system | S1220A |
Motherboard form factor | Mini iTX |
Compatible operating systems | Windows 10 |
Component for | PC |
Features | |
Motherboard chipset | Intel B360 |
Motherboard form factor | Mini ITX |
Audio output channels | 7.1 channels |
Windows operating systems supported | Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64 |
Power source type | ATX |
Motherboard chipset family | Intel |
Audio chip | Realtek S1220A |
EAN | 4712900966084 |
Warranty | 3 years |
AESTHETIC
Up your aesthetic horizons with a new cyber-text design, 3D-printable parts from fan grills to cable combs, and Aura illumination — to create a personalized gaming with immersion that extends from the inside out.
Cyber Outlook
The distinctive sleek cuts across the ROG Strix heatsink are now accented with a futuristic cyber-text pattern, fusing multiple gaming cultures to create a unique identity for this generation. But it's not all about arresting looks: the all-new ROG Strix motherboards exude material excellence, with a high-quality metal heatsink that adds a premium touch.
DIY FRIENDLY DESIGN
DIY-friendly design simplify your PC-building experience, so installation is easier, compatibility assured, and all-around protection to keep you and your rig safe.
PERFORMANCE
Experience great performance through comprehensive cooling controls, fast storage, and exclusive technologies to enhance memory reliability and speed.
Cooler By Design
ROG Strix B360-I Gaming features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
AUDIO
Proper gaming audio built in means you're ready to play, chat or stream or kick back with videos right out of the gate, with smart routing to direct different audio streams to different devices.
Sonic Studio III
Intuitive Audio-Tuning Suite
Sonic Studio supports HRTF-based (head-related transfer function) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
NETWORKING
Loaded with the latest technologies, you'll benefit from connections as quick and simple to make as they are stable and speedy.
Intel Gigabit Ethernet
More Throughput and Less CPU Usage for Great Gaming Experiences
ROG Strix B360-I Gaming features the very latest Intel Ethernet (I219-V) for faster, smoother gaming. Intel's LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power available for gaming.

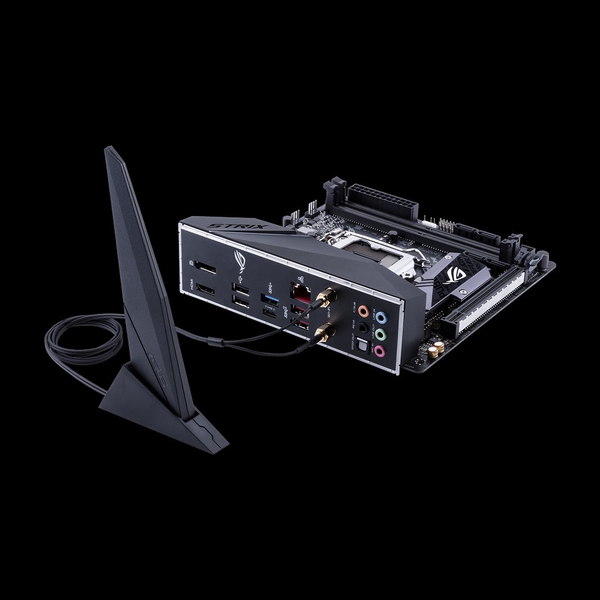

Intel Integrated Ultra Wi-Fi support
ROG Strix B360-I Gaming features the latest Intel 802.11ac Wi-Fi with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps. In fact, its integrated Wireless-AC 9560 Wi-Fi adapter pushes wireless data up to 2X faster than other Wi-Fi solutions — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9560 also offers Bluetooth 5 for connections that are up to 2X faster than ever before, and with up to 4X the range.
ROG Strix Gives You More
Design, build, tweak and show off your style — with ROG Strix behind you every step of the way.
THE POWER OF INTEL
Intel® B360 chipset
The Intel® B360 is a single-chipset design that supports 8th Generation Intel® Core™ LGA1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the B360 chipset provides a maximum of four USB 3.1 Gen 2 ports, two USB 3.1 Gen 1 ports, six SATA 6Gbps ports, and 32Gbps M.2 and PCIe 3.0 lane-speed support, for faster data retrieval. Intel B360 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
Ready for 8th Generation Intel® LGA1151 Core processors
This motherboard supports 8th Generation Intel® Core™ processors in the LGA1151 package, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (2-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
