No price development information for this product.
This product is end of life or currently not available.
Ports & interfaces | |
Serial interface type | RS-232 |
USB 2.0 ports quantity | 3 |
Headphone outputs | 1 |
Microphone in | |
DVI port | |
VGA (D-Sub) ports quantity | 3 |
S-Video inputs quantity | 1 |
Composite video in | 1 |
Audio (L/R) in | 2 |
Component video (YPbPr/YCbCr) in | 2 |
AC (power) in | |
HDMI ports quantity | 1 |
DisplayPorts quantity | 1 |
BNC input ports | 5 |
12V trigger | |
USB 2.0 Type-B ports quantity | 1 |
Lens system | |
Digital zoom | 2x |
Zoom capability | |
Focus | Manual |
Zoom type | Manual |
Horizontal lens shift range | -5 - 5% |
Vertical lens shift range | -10 - 50% |
Number of optional lenses supported | 5 |
Weight & dimensions | |
Weight | 8.6 kg |
Height | 167 mm |
Width | 431 mm |
Depth | 320.5 mm |
Energy management | |
Power consumption (typical) | 460 W |
AC adapter output voltage | 100 - 240 V |
Power source | AC |
Power consumption (standby) | 0.5 W |
Power consumption (economy mode) | 355 W |
Power consumption (max) | 480 W |
Power consumption (network standby) | 2 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Networking | |
Ethernet LAN | |
Ethernet LAN (RJ-45) ports | 1 |
Projector | |
Contrast ratio (typical) | 6000:1 |
Horizontal scan range | 15 - 102 kHz |
Vertical scan range | 23 - 120 Hz |
Projection technology | DLP |
Projector brightness | 6000 ANSI lumens |
Screen size compatibility | 1270 - 7620 mm (50 - 300") |
Keystone correction, vertical | -30 - 30° |
Keystone correction, horizontal | -30 - 30° |
Native aspect ratio | 4:3 |
Projector native resolution | XGA (1024x768) |
Number of colours | |
Video | |
Analog signal format system | NTSC,PAL,SECAM |
Full HD | |
Supported graphics resolutions | 640 x 480 (VGA),1920 x 1200 (WUXGA) |
Supported video modes | 480i,480p,576i,576p,720p,1080i,1080p |
Storage | |
Optical disc player type | Not included |
Card reader integrated | |
Packaging content | |
Remote control included | |
Cables included | AC,VGA |
Remote control type | IR |
Batteries included | |
Other features | |
RS-232 ports | 1 |
Design | |
Product colour | Black |
Product type | Desktop projector |
Features | |
Noise level | 38 dB |
On Screen Display (OSD) | |
On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Thai, Turkish |
Noise level (economic mode) | 35 dB |
Light source | |
Lamps quantity | 1 lamp(s) |
EAN | 4718755070907 |
Warranty | 3 years |
Source: Icecat.biz |

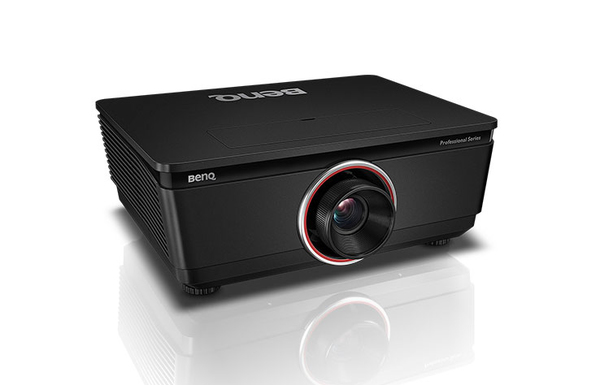

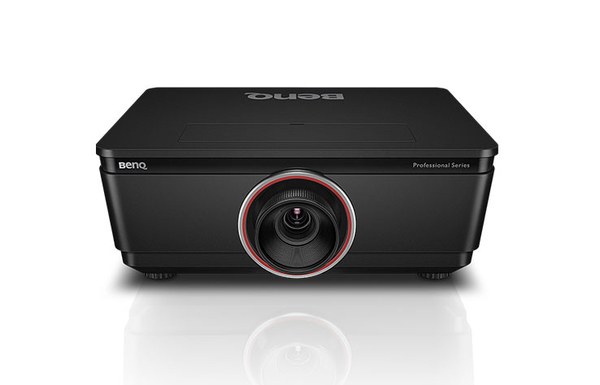

Stunning Visual Impact with Flexible Installation for Any Application
Specifically designed for simple installation and configuration flexibility, BenQ’s PX9230 utilizes five types of available optical lenses for professional integration into any venue. Spectacular visual performance with ultra-high brightness, contrast ratio and resolution, coupled with hassle-free maintenance and lasting reliability, make PX9230 ideally suited for commercial deployment.
High Brightness Lumens
Even large-scale projections in bright environments remain clear and sharp with BenQ’s high brightness technology power. The enhanced luminance boosts vivid color intensity and depth for lights-on presentations allowing audience interaction and note taking.
DLP Technology for Vibrant Color Endurance
BenQ projectors are based on the absolute reliability of 1chip DLP design. The highly durable DLP chip is rated to last over 100,000 hours without degradation, ensuring true-to-life colors and pristinely legible text for countless uses.
Unibody Dust Filter Option
An optional feature on the PX9230, a sleek unibody dust filter, facilitates projector maintenance and longevity in especially dusty environments. Unlike clunky conventional two-piece designs, the all-in-one design is neater and easier to remove for cleaning.

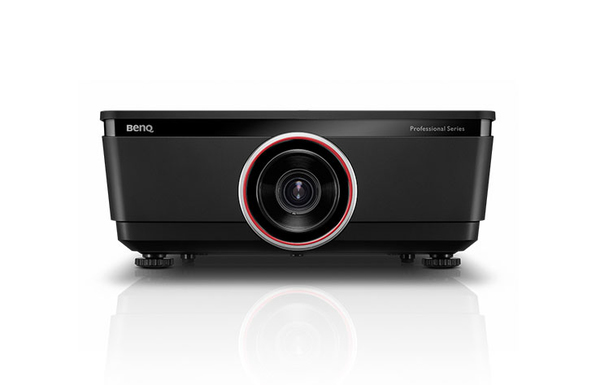

Central Lens Design
A new symmetrically centered lens design allows easy installation without the need for special considerations in offset installation scenarios.
Side Chassis Lamp Door
Another simple but brilliant detail, the lamp access door is located on the side. Lamps can be accessed without unmounting the system from the ceiling or a stacked position.
Magnetic Cover
A soft-touch magnetic cover provides convenient access to controls without push and pull force effecting projection alignment.
360° Rotation-Capable Projection
The BenQ PX9230 can be tilted vertically at any angle, allowing projection onto ceilings, walls, floors or angled signage. The possibilities for impactful visuals in shopping centers, galleries, museums and theaters are endless.
Multiple Lenses for Diverse Applications
BenQ's PX9230 projector is compatible with five various lenses. These all-glass optics, made in Japan, eliminate chromatic aberration and color flare for utmost image quality. Maximize installation options and projection layout with a quick one-button release. Changing lenses is now simple and secure.
Zoom, Focus, Lens Shift
The convenience and wide range of the zoom, focus and horizontal/ vertical lens shift systems deliver perfectly proportioned images despite installation or placement challenges in any venue.
Network/Web Control
BenQ projectors are compatible with Creston, AMX and PJ Link control systems for convenient system integration with various third-party components and reduced cost to centrally maintain multiple projectors.

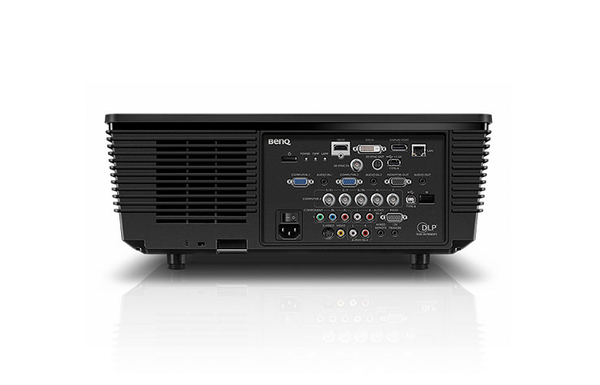

Full Connectivity Across Formats
The BenQ’s PX9230 is comprehensively equipped with VGA, DVI, HDMI, LAN technology for high-quality connections to a variety of devices and video sources.
Eco-Conscious Standby Modes
Adhering to strict European regulations, networked standby power consumption is cut down to a mere 6 watts to reduce environmental impact and total cost of ownership. When in Standby Mode, power consumption is a miniscule 0.5 watts.
